Craftsman 917.272921 - Tractor Model Number 917.272921 Lift Assembly

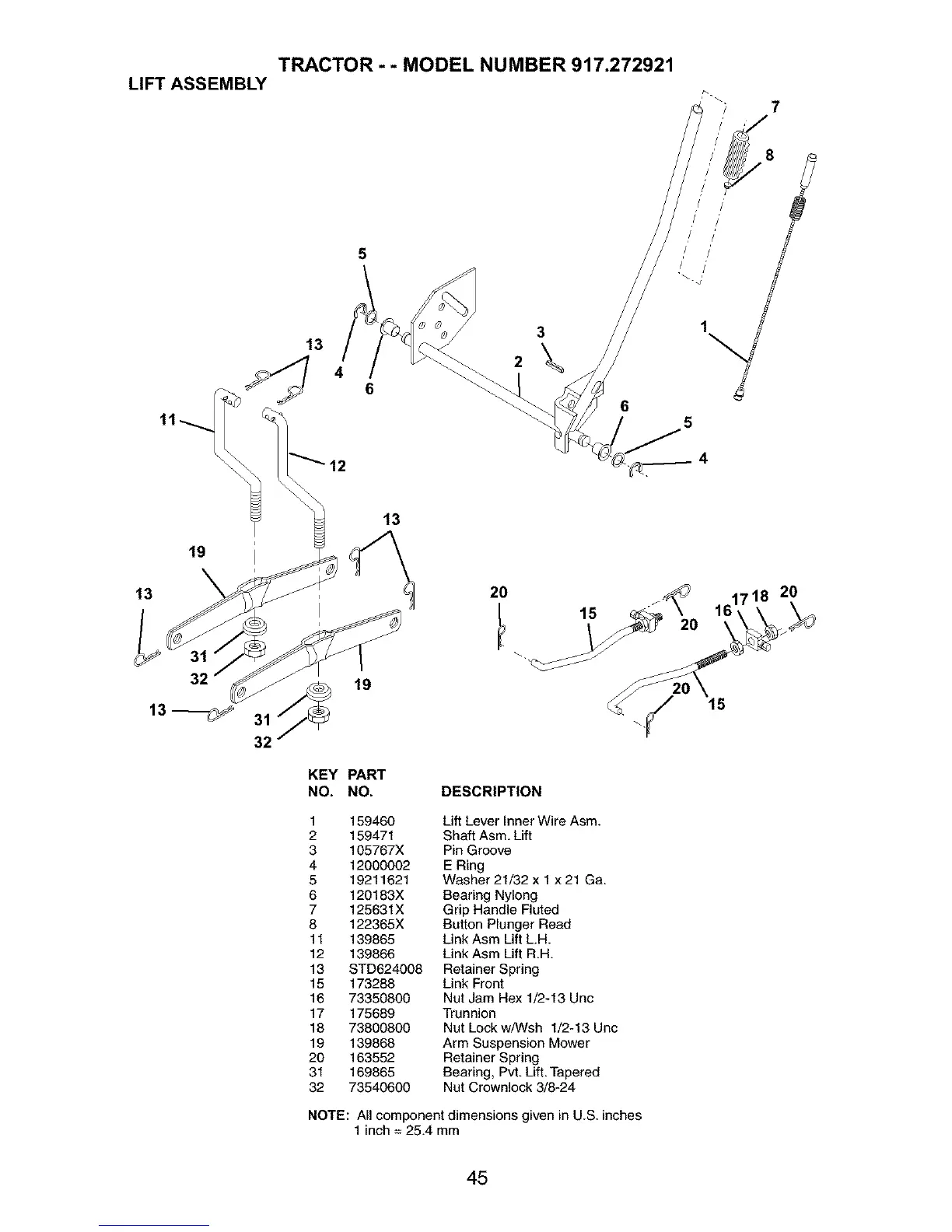

TRACTOR - - MODEL NUMBER 917.272921
LIFT ASSEMBLY
5
11
13
4
6
3
2
6
5
_4
13
19
13
13
20
19 S
31 \
32 /
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
7
8
11
12
13
15
16
17
18
19
20
31
32
159460 Lift Lever Inner Wire Asm.
159471 Shaft Asm. Lift
105767X Pin Groove
12000002 E Ring
19211621 Washer 21/32 x 1 x21 Ga.
120183X Bearing Nylong
125631X Grip Handle Fluted
122365X Button Plunger Read
139865 Link Asm Lift LH.
139866 Link Asm Lift R.H.
STD624008 Retainer Spring
173288 Link Front
73350800 Nut Jam Hex 1/2-13 Unc
175689 Trunnion
73800800 Nut Lock w/Wsh 1/2-13 Unc
139868 Arm Suspension Mower
163552 Retainer Spring
169865 Bearing, Pvt. Lift. Tapered
73540600 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
