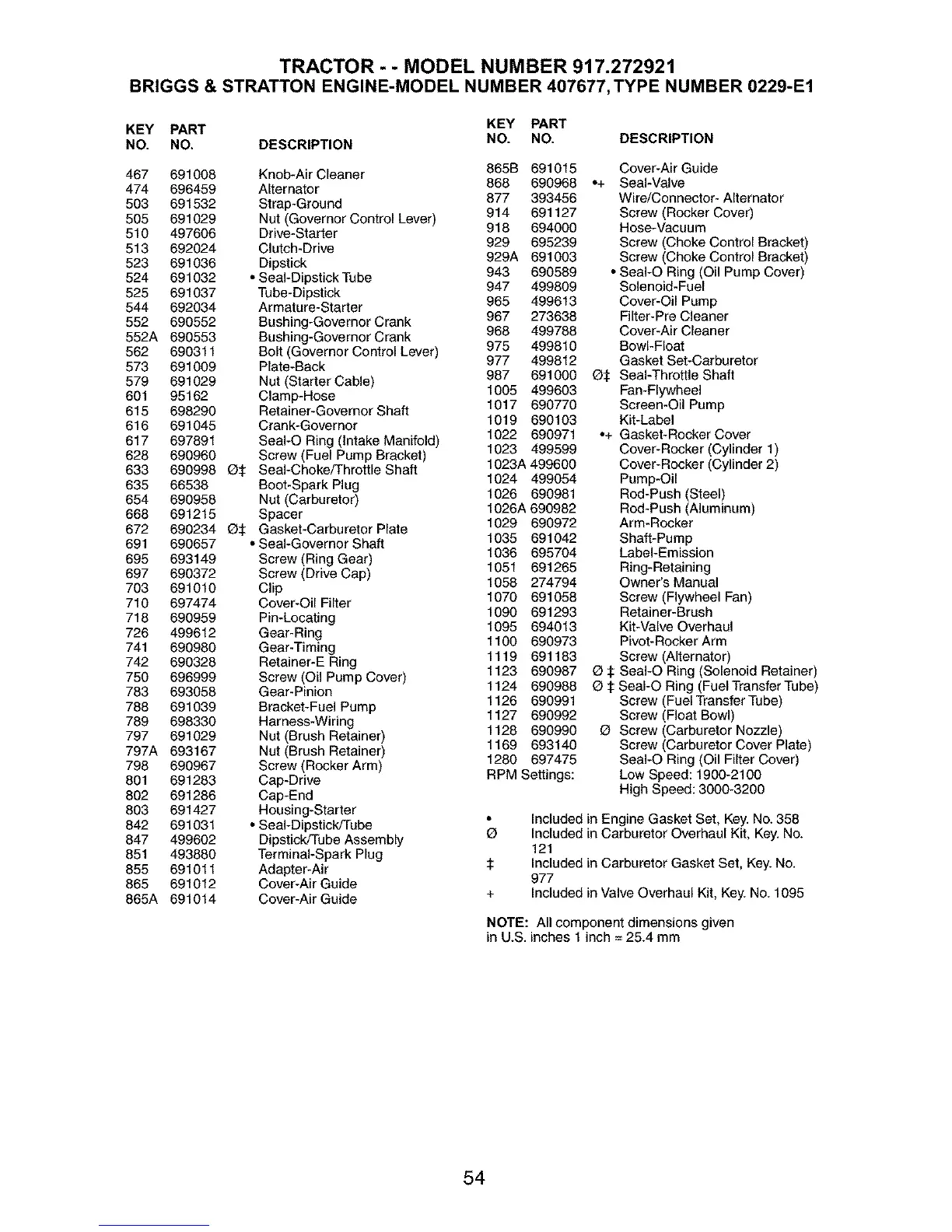

TRACTOR-- MODEL NUMBER 917.272921
BRIGGS & STRATTON ENGINE-MODEL NUMBER 407677,TYPE NUMBER 0229-E1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
467 691008 Knob-Air Cleaner 865B 691015 Cover-Air Guide
474 696459 Alternator 868 690968 *+ Seal-Valve
503 691532 Strap-Ground 877 393456 Wire/Connector- Alternator
505 691029 Nut (Governor Control Lever) 914 691127 Screw (Rocker Cover)
510 497606 Drive-Starter 918 694000 Hose-Vacuum
513 692024 Clutch-Drive 929 695239 Screw (Choke Control Bracket)
523 691036 Dipstick 929A 691003 Screw (Choke Control Bracket)
524 691032 * Seal-Dipstick Tube 943 690589 * SeaI-O Ring (Oil Pump Cover)
525 691037 Tube-Dipstick 947 499809 Solenoid-Fuel
544 692034 Armature-Starter 965 499613 Cover-Oil Pump
552 690552 Bushing-Governor Crank 967 273638 Filter-Pre Cleaner
552A 690553 Bushing-Governor Crank 968 499788 Cover-Air Cleaner
562 690311 Bolt (Governor Control Lever) 975 499810 Bowl-Float
573 691009 Plate-Back 977 499812 Gasket Set-Carburetor
579 691029 Nut (Starter Cable) 987 691000 O$ Seal-Throttle Shaft
601 95162 Clamp-Hose 1005 499603 Fan-Flywheel
615 698290 Retainer-Governor Shaft 1017 690770 Screen-Oil Pump
616 691045 Crank-Governor 1019 690103 Kit-Label
617 697891 SeaI-O Ring (Intake Manifold) 1022 690971 °+ Gasket-Rocker Cover
628 690960 Screw (Fuel Pump Bracket) 1023 499599 Cover-Rocker (Cylinder 1)
633 690998 O$ Seal-Choke/Throttle Shaft 1023A 499600 Cover-Rocker (Cylinder 2)
635 66538 Boot-Spark Plug 1024 499054 Pump-Oil
654 690958 Nut (Carburetor) 1026 690981 Rod-Push (Steel)
668 691215 Spacer 1026A 690982 Rod-Push (Aluminum)
672 690234 O$ Gasket-Carburetor Plate 1029 690972 Arm-Rocker
691 690657 * Seal-Governor Shaft 1035 691042 Shaft-Pump
695 693149 Screw (Ring Gear) 1036 695704 Label-Emission
697 690372 Screw (Drive Cap) 1051 691265 Ring-Retaining
703 691010 Clip 1058 274794 Owner's Manual
710 697474 Cover-Oil Filter 1070 691058 Screw (Flywheel Fan)
718 690959 Pin-Locating 1090 691293 Retainer-Brush
1095 694013 Kit-Valve Overhaul
726 499612 Gear-Ring 1100 690973 Pivot-Rocker Arm
741 690980 Gear-Timing
742 690328 Retainer-E Ring 1119 691183 Screw (Alternator)
750 696999 Screw (Oil Pump Cover) 1123 690987 O _ SeaI-O Ring (Solenoid Retainer)
783 693058 Gear-Pinion 1124 690988 O _ SeaI-O Ring (FueITransfer Tube)
788 691039 Bracket-Fuel Pump 1126 690991 Screw (Fuel Transfer Tube)
789 698330 Harness-Wiring 1127 690992 Screw (Float Bowl)
797 691029 Nut (Brush Retainer) 1128 690990 Q Screw (Carburetor Nozzle)
797A 693167 Nut (Brush Retainer) 1169 693140 Screw (Carburetor Cover Plate)
798 690967 Screw (Rocker Arm) 1280 697475 SeaI-O Ring (Oil Filter Cover)
801 691283 Cap-Drive RPM Settings: Low Speed: 1900-2100
802 691286 Cap-End High Speed: 3000-3200
803 691427 Housing-Starter
842 691031 * Seal-Dipstick/Tube _ Included in Engine Gasket Set, Key. No. 358
847 499602 Dipstick!Tube Assembly Included in Carburetor Overhaul Kit, Key. No.
851 493880 Terminal-Spark Plug 121
855 691011 Adapter-Air $ Included in Carburetor Gasket Set, Key. No.
865 691012 Cover-Air Guide 977
865A 691014 Cover-Air Guide + Included in Valve Overhaul Kit, Key. No. 1095
NOTE: All component dimensions given
in U.S. inches 1 inch = 25.4 mm
54
