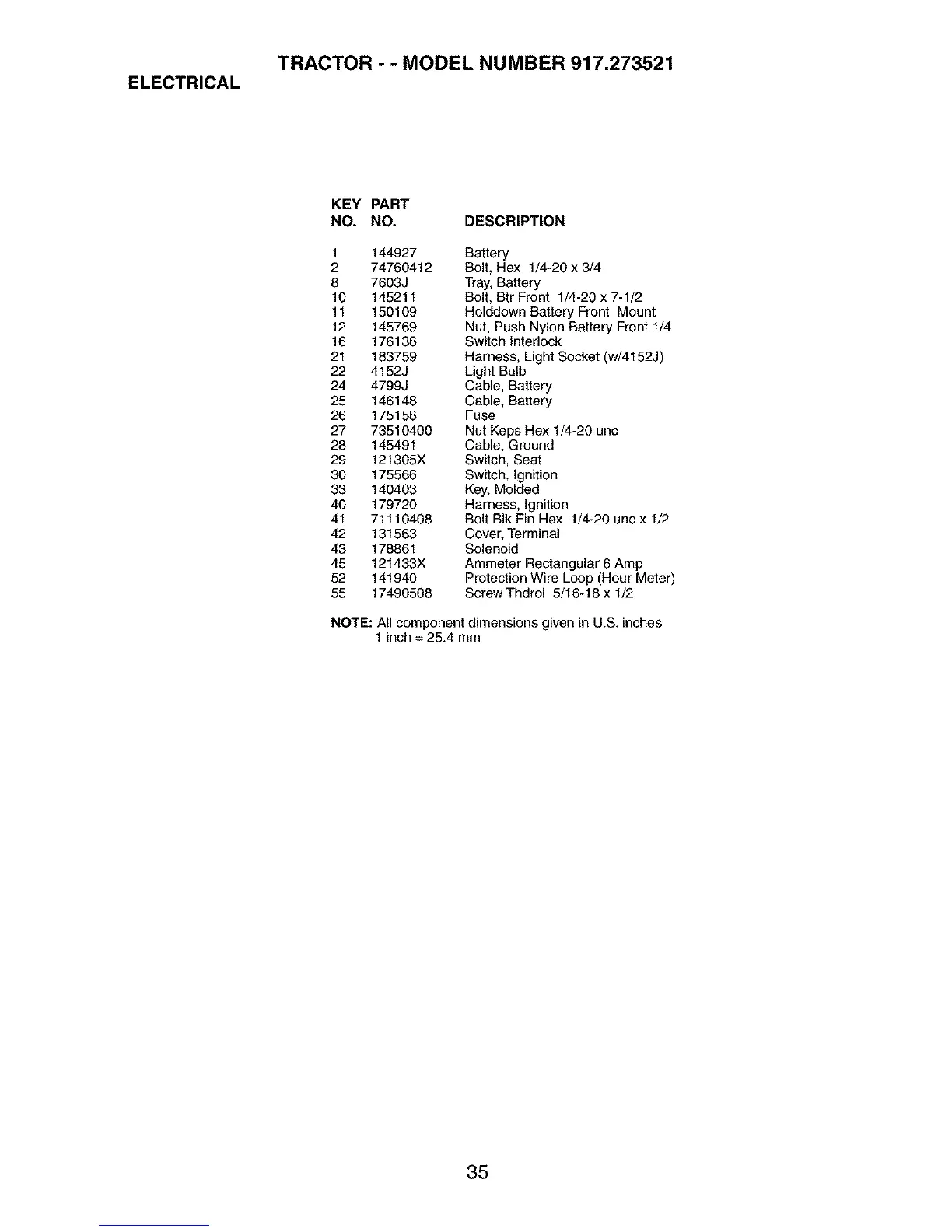

Craftsman 917.273521 - Page 35

TRACTOR - - MODEL NUMBER 917.273521
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144927 Battery
2 74760412 Belt, Hex 1/4-20 x 3/4
8 7603J Tray, Battery
10 145211 Bolt, Btr Front 1/4-20 x 7-1/2
11 150109 Holddown Battery Front Mount
12 145769 Nut, Push Nylon Battery Front 1/4
16 176138 Switch Interlock
21 183759 Harness, Light Socket (w/4152J)
22 4152J Light Bulb
24 4799J Cable, Battery
25 146148 Cable, Battery
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable, Ground
29 121305X Switch, Seat
30 175566 Switch, Ignition
33 140403 Key, Molded
40 179720 Harness, Ignition
41 71110408 Bolt BIk Pin Hex 1/4-20 unc x 1/2
42 131563 Cover, Terminal
43 178861 Solenoid
45 121433X Ammeter Rectangular 6 Amp
52 141940 Protection Wire Loop (Hour Meter)
55 17490508 Screw Thdrol 5/16-18 x 1/2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
