Craftsman 917.273521 - Lift Assembly

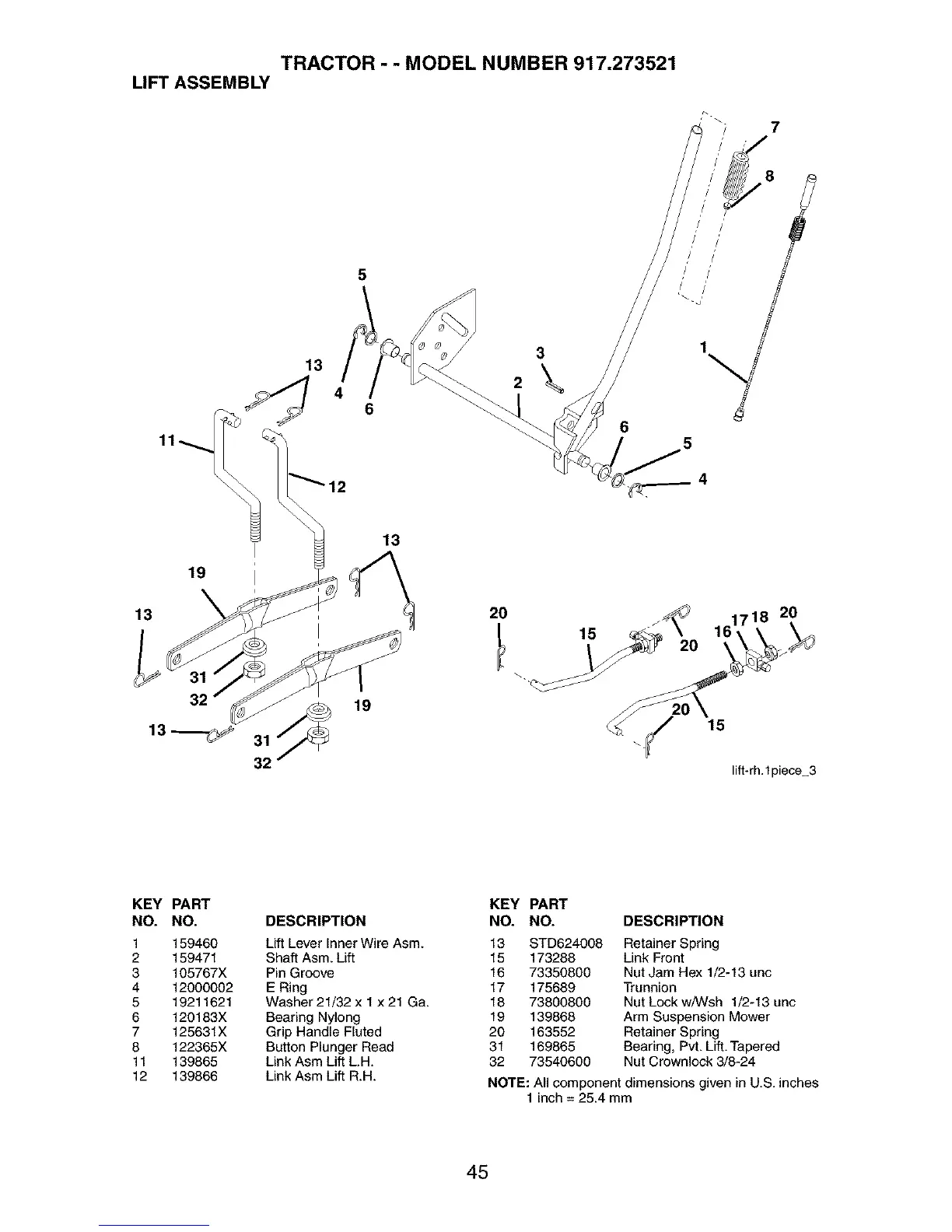

TRACTOR - - MODEL NUMBER 917.273521
LIFT ASSEMBLY
7
5
13
4
6
3
2
6
5
19
13
13_ 31
32 j
13
19
2O 2O
15
lift-rh.1piece 3
KEY PART
NO. NO.
1 159460
2 159471
3 105767X
4 12000002
5 19211621
6 120183X
7 125631X
8 122365X
11 139865
12 139866
DESCRIPTION
Lift Lever Inner Wire Asm.
Shaft Asm. Lift
Pin Groove
E Ring
Washer 21/32 x 1 x 21 Ga.
Bearing Nylong
Grip Handle Fluted
Button Plunger Read
Link Asm Lift LH.
Link Asm Lift R.H.
KEY PART
NO. NO. DESCRIPTION
13 STD624008 Retainer Spring
15 173288 Link Front
16 73350800 Nut Jam Hex 1/2-13 unc
17 175689 Trunnion
18 73800800 Nut Lock w/Wsh 1/2-13 unc
19 139868 Arm Suspension Mower
20 163552 Retainer Spring
31 169865 Bearing, Pvt. Lift. Tapered
32 73540600 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
