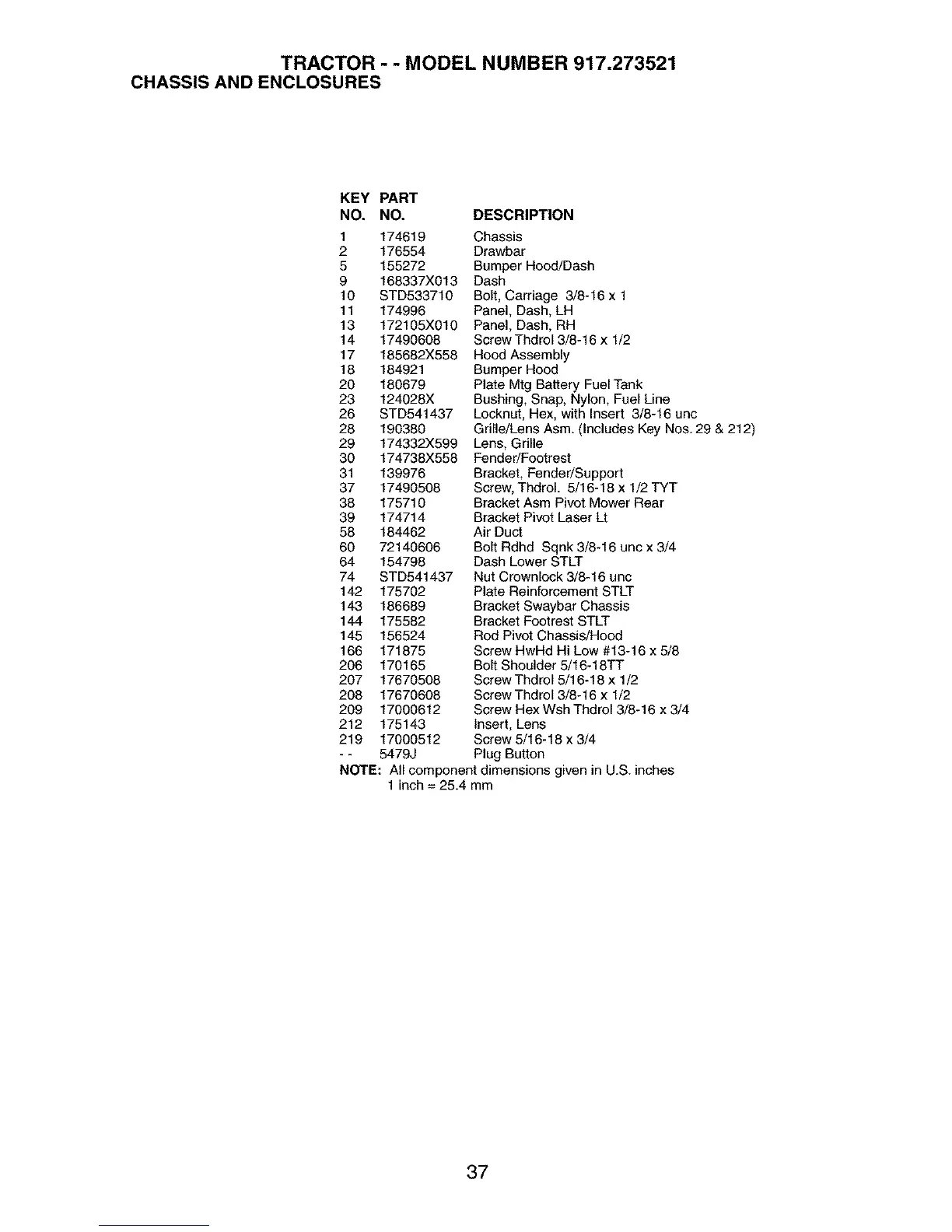

TRACTOR - - MODEL NUMBER 917.273521
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619
2 176554
5 155272
9 168337X013
10 STD533710
11 174996
13 172105X010
14 17490608
17 185682X558
18 184921
20 180679
23 124028X
26 STD541437
28 190380
29 174332X599
30 174738X558
31 139976
37 17490508
38 175710
39 174714
58 184462
60 72140606
64 154798
74 STD541437
142 175702
143 186689
144 175582
145 156524
166 171875
206 170165
207 17670508
208 17670608
209 17000612
212 175143
219 17000512
-- 5479J
Chassis
Drawbar
Bumper Hood/Dash
Dash
Belt, Carriage 3/8-16 x 1
Panel, Dash, LH
Panel, Dash, RH
Screw Thdrol 3/8-16 x 1/2
Hood Assembly
Bumper Hood
Plate Mtg Battery Fuel Tank
Bushing, Snap, Nylon, Fuel Line
Lecknut, Hex, with Insert 3/8-16 unc
Grille/Lens Asm. (Includes Key Nos. 29 & 212)
Lens, Grille
Fender/Footrest
Bracket, Fender/Support
Screw, ThdroL 5/16-18 x 1/2 TYT
Bracket Asm Pivot Mower Rear
Bracket Pivot Laser Lt
Air Duct
Bolt Rdhd Sqnk 3/8-16 unc x 3/4
Dash Lower STLT
Nut Crownlock 3/8-16 uric
Plate Reinforcement STLT
Bracket Swaybar Chassis
Bracket Footrest STLT
Red Pivot Chassis/Hood
Screw HwHd Hi Low #13-16 x 5/8
Bolt Shoulder 5/16-18TT
Screw Thdrol 5/16-18 x 1/2
Screw Thdrol 3/8-16 x 1/2
Screw Hex Wsh Thdrol 3/8-16 x 3/4
Insert, Lens
Screw 5/16-18 x 3/4
Plug Button
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
