KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING

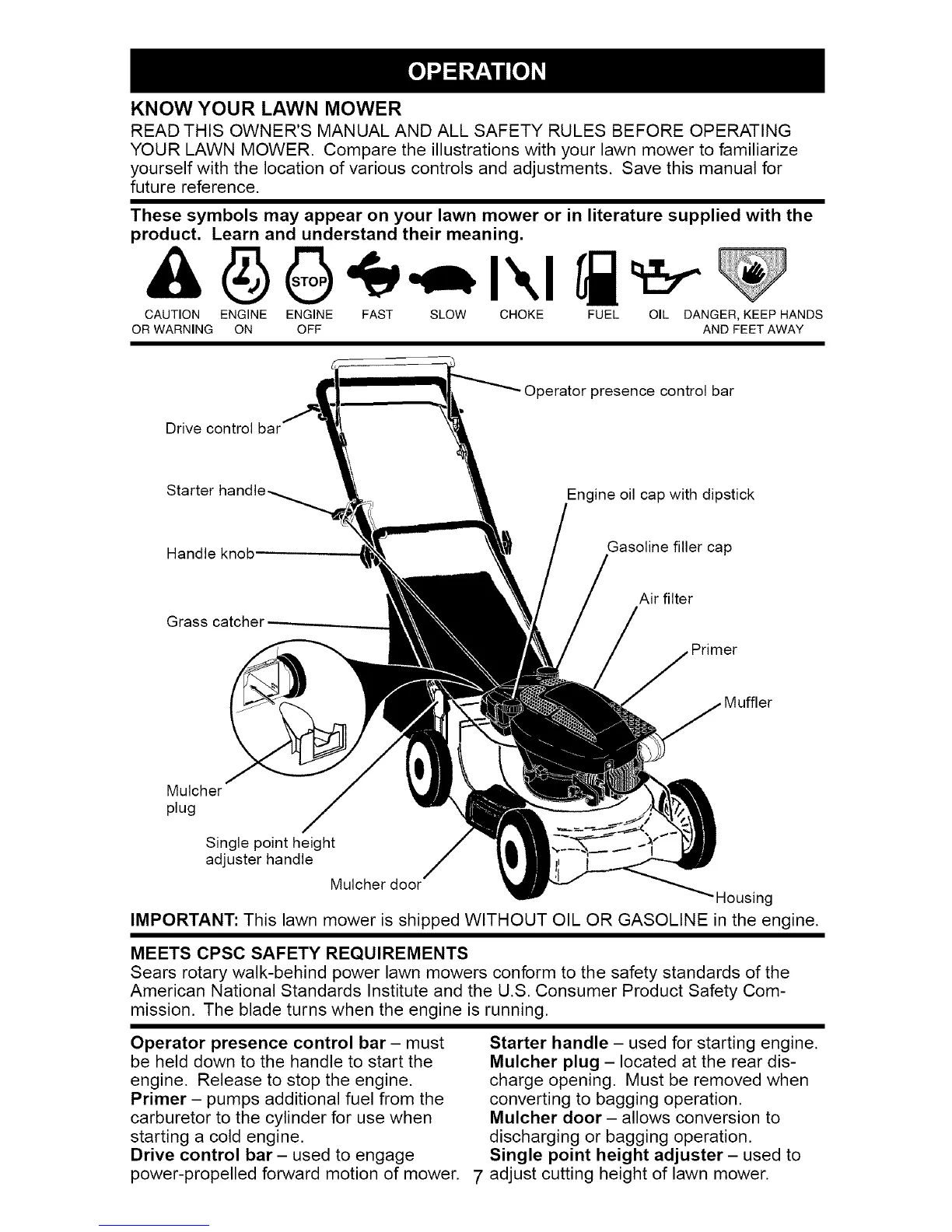

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize
yourself with the location of various controls and adjustments. Save this manual for
future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Drive control bar
Operator presence control bar
Starter
Engine oil cap with dipstick
Handle knob
Gasoline filler cap
Grass catcher
Air filter
Muffler
Mulcher
plug
Single point height
adjuster handle
Mulcher door
"Housing
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Com-
mission. The blade turns when the engine is running.
Operator presence control bar- must
be held down to the handle to start the
engine. Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Drive control bar- used to engage
power-propelled forward motion of mower.
Starter handle - used for starting engine.
Mulcher plug - located at the rear dis-
charge opening. Must be removed when
converting to bagging operation.
Mulcher door - allows conversion to
discharging or bagging operation.
Single point height adjuster- used to
adjust cutting height of lawn mower.
