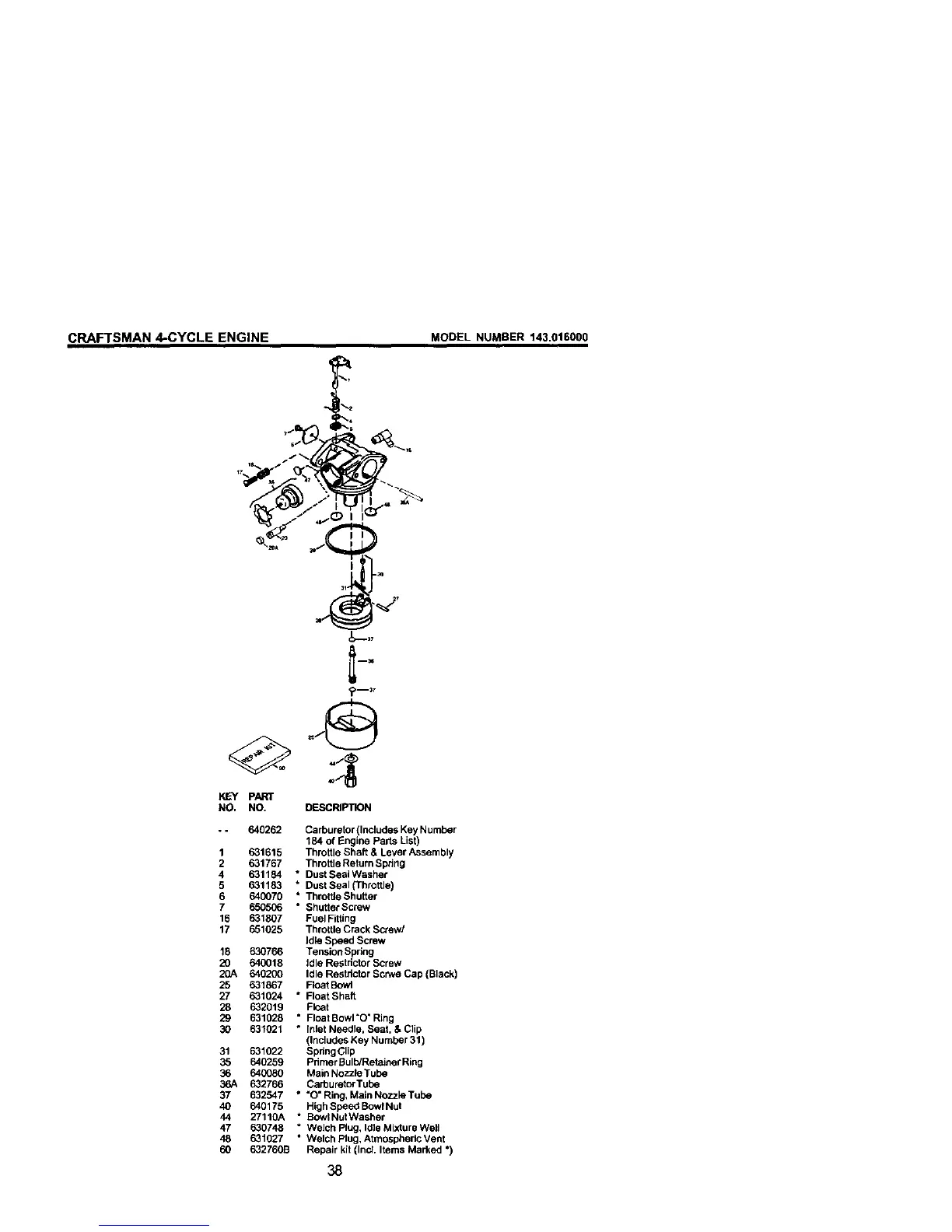

CRAFTSMAN 4-CYCLE ENGINE
MODEL NUMBER 143.016000
KEY
NO.
PART
NO. DESCRIPTION
- - 640262 Carburetor (Includes Key Number
184 of Engine Parts List)
1 631615 Throttle Shaft & Lever Assembly
2 631767 ThrotUe Return Spdng
4 631184 * DustSealWasher
5 631183 * Dust Seal (Throttle)
6 640070 * ThrottJe Shutter
7 650506 * ShutterScPew
16 631807 Fuel Fitting
17 651025 Throttle Crack Screw/
Idle Speed Screw
18 630766 Tension Spring
20 640018 idle Restrictor Screw
20A 640200 Idle Rest_ctor SceNe Cap (Black)
25 631867 FloatBowl
27 631024 * FloatShaft
28 632019 Float
29 631026 " FloatBowl=O'Ring
30 631021 * Inlet Needle, Seat. & Clip
(Includes Key Number 31)
31 631022 Spdng Clip
35 640259 Pdmer Bulb/Retainer Ring
36 640080 Main Nozzle Tube
36A 632766 CarburetorTube
37 632547 * "O" Ring, Main Nozzle Tube
40 640175 High Sbeed BowlNut
44 27110A * BowlNutWasher
47 630748 * Welch Plug, Idle Mixture Well
48 631027 * WelchPlug, AtmosphericVent
60 632760B Repair kit (Ind, Items Marked *)
38
