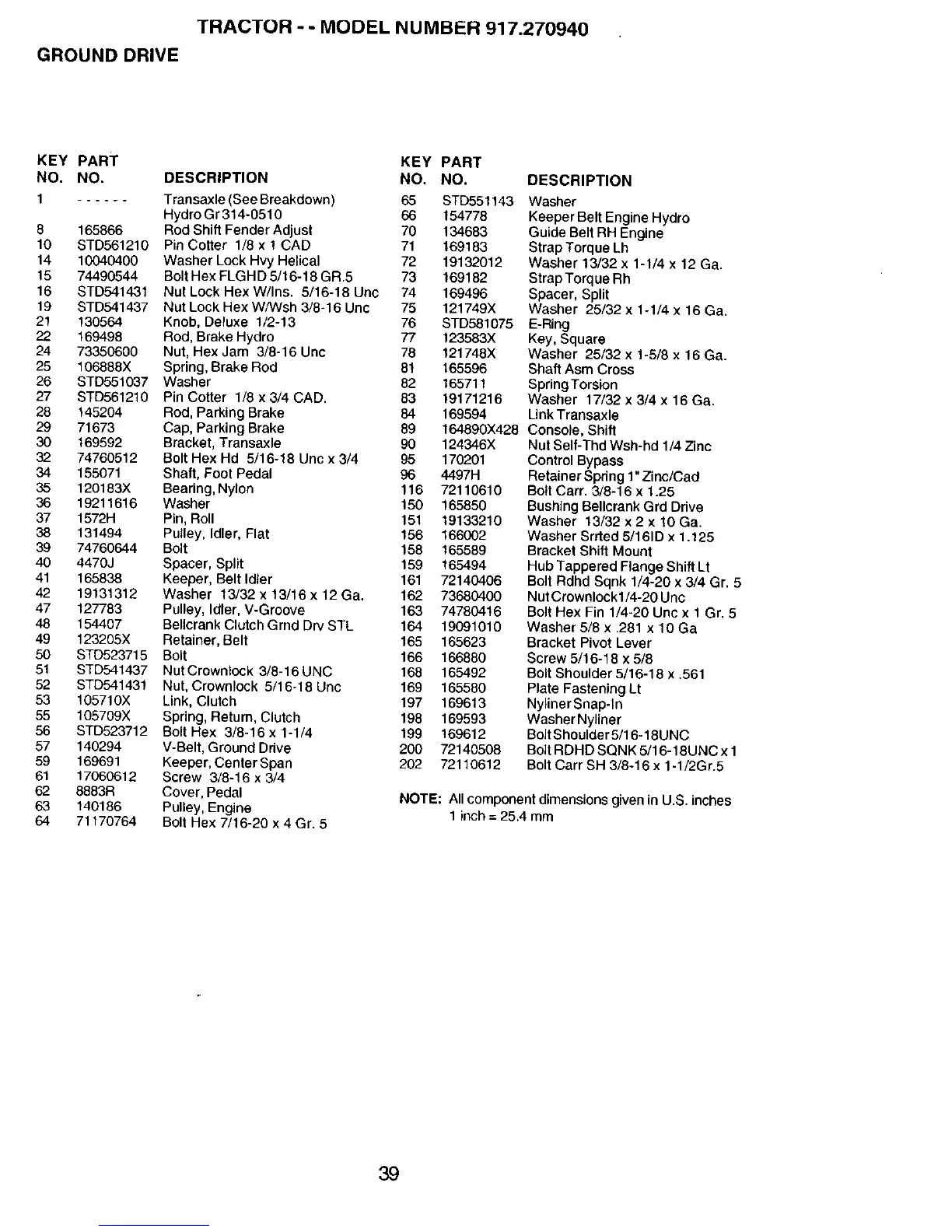

Craftsman 917 - Page 39

TRACTOR -- MODEL NUMBER 917.270940
GROUND DRIVE
KEY PART KEY
NO. NO. DESCRIPTION NO.
1 ...... Transaxle (See Breakdown) 65
Hydro Gr 314-0510 66
8 165866 Rod Shift Fender Adjust 70
10 STD561210 Pin Cotter 1/8 x t CAD 71
14 10040400 Washer Lock Hvy Helical 72
15 74490544 Bolt Hex FLGHD 5/16-18 GR.5 73
16 STD541431 Nut Lock Hex W/Ins. 5/16-18 Unc 74
19 STD541437 Nut Lock Hex W/Wsh 3/8-16 Unc 75
21 130564 Knob, Deluxe 1/2-13 76
22 169498 Rod, Brake Hydro 77
24 73350600 Nut, Hex Jam 3/8-16 Unc 78
25 106888X Spring, Brake Rod 81
26 STD551037 Washer 82
27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 83
28 145204 Rod, Parking Brake 84
29 71673 Cap, Parking Brake 89
30 169592 Bracket, Transaxle 90
32 74760512 Bolt Hex Hd 5/16-18 Unc x 3/4 95
34 155071 Shaft, Foot Pedal 96
35 120183X Bearing, Nylon 116
36 19211616 Washer 150
37 1572H Pin, Roll 151
38 131494 Pulley, Idler, Flat 156
39 74760644 Bolt 158
40 4470J Spacer, Split 159
41 165838 Keeper, Belt Idter 161
42 19131312 Washer 13/32 x 13/16 x 12 Ga. 162
47 127783 Pulley, Idler, V-Groove 163
48 154407 Bellcrank Clutch Grnd Drv STL 164
49 123205X Retainer, Belt 165
50 STD523715 Bolt 166
51 STD541437 NutCrownlock 3/8-16UNC 168
52 STD541431 Nut, Crownlock 5/16-18 Unc 169
53 105710X Link, Clutch 197
55 105709X Spring, Return, Clutch 198
56 STD523712 Bolt Hex 3/8-16 x 1-1/4 199
57 140294 V-Belt, Ground Drive 200
59 169691 Keeper, Center Span 202
61 17060612 Screw 3/8-16 x 3/4
62 8883R Cover, Pedal
63 140186 Pulley, Engine
64 71170764 Bolt Hex 7/16-20 x 4 Gr. 5
PART
NO. DESCRIPTION
STD551143 Washer
154778 Keeper Belt Engine Hydro
134683 Guide Belt RH Engine
169183 Strap Torque Lh
19132012 Washer 13/32 x 1-1/4 x 12 Ga.
169182 StrapTorque Rh
169496 Spacer, Split
121749X Washer 25/32 x 1-1/4 x 16 Ga.
STD581075 E-Ring
123583X Key, Square
121748X Washer 25/32 x 1-5/8 x 16 Ga.
165596 Shaft Asm Cross
165711 SpringTorsion
19171216 Washer 17/32 x 3/4 x 16 Ga.
169594 Link Transaxle
164890X428 Console, Shift
124346X
170201
4497H
72110610
165850
19133210
166002
165589
165494
72140406
73680400
74780416
19091010
165623
166880
165492
165580
169613
169593
169612
72140508
72110612
Nut Self-Thd Wsh-hd 1/4 Zinc
Control Bypass
Retainer Spring 1" Zinc/Cad
Bolt Carr. 3/8-16 x 1.25
Bushing Bellcrank Grd Drive
Washer 13/32 x 2 x 10 Ga.
Washer Srrted 5/161D x 1.125
Bracket Shift Mount
Hub Tappered Flange Shift Lt
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
Nut Crownlock1/4-20 Unc
Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5
Washer 5/8 x .281 x 10 Ga
Bracket Pivot Lever
Screw 5/16-18 x 5/8
Bolt Shoulder 5/16-18 x .561
Plate Fastening Lt
Nytiner Snap-tn
Washer Nyliner
Bolt Shoulder 5/16-18UNC
Bolt RDHD SQNK 5/16-18UNC x 1
Bolt Carr SH 3/8-16 x 1-1/2Gr.5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
