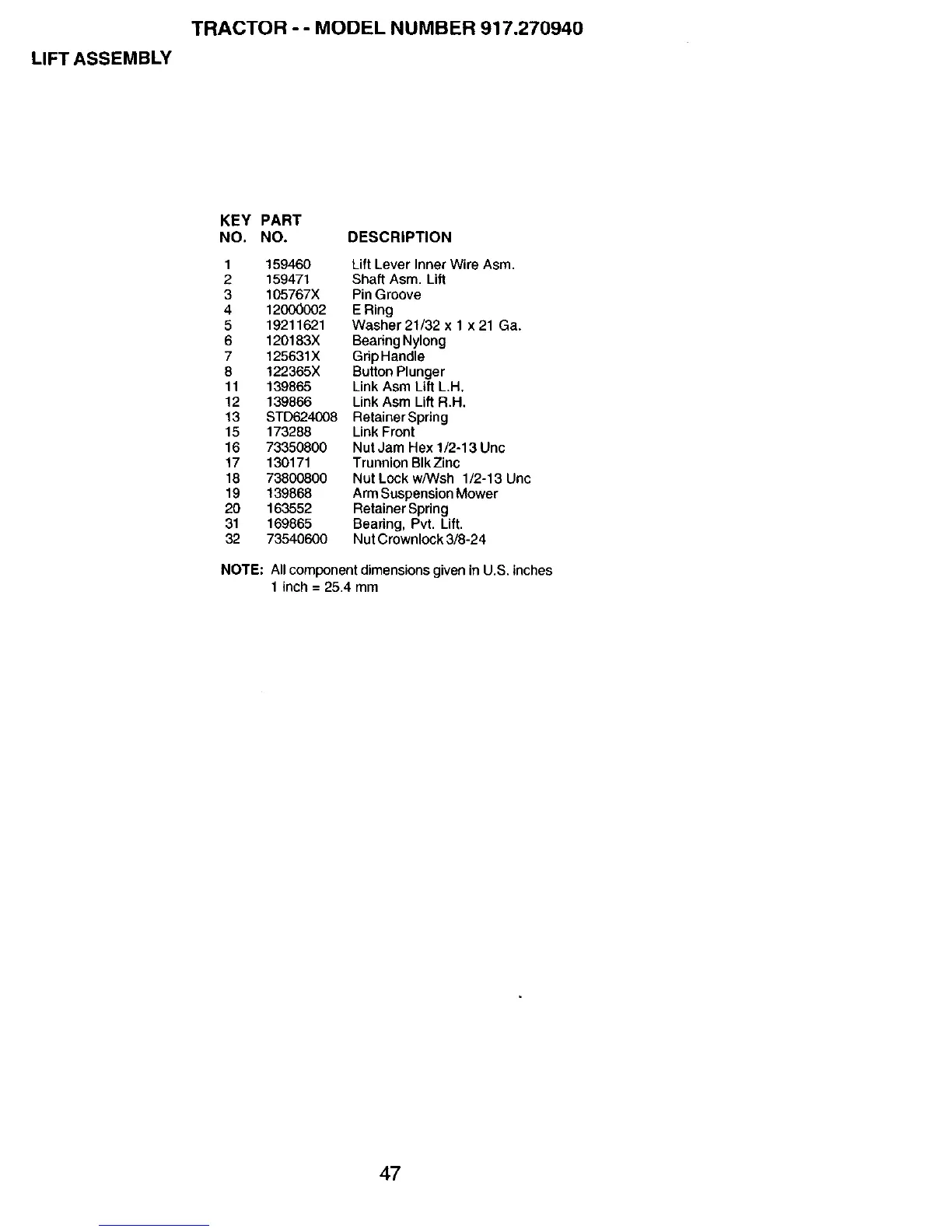

TRACTOR - - MODEL NUMBER 917.270940
LIFT ASSEMBLY
KEY PART
NO. NO.
DESCRIPTION
1 159460 Lift Lever Inner Wire Asm.
2 159471 Shaft Asm. Lift
3 105767X Pin Groove
4 12000002 E Ring
5 19211621 Washer 21/32 x 1 x21 Ga,
6 120183X Bearing Nylong
7 125631X GripHandle
8 122365X Button Plunger
11 139865 Link Asm Lift L.H.
12 139866 Link Asm Lift R.H.
13 STD624008 Retainer Spring
15 173288 Link Front
16 73350800 Nut Jam Hex 1/2-13 Unc
17 130171 Trunnion BIk Zinc
18 73800800 Nut Lock w/Wsh 1/2-13 Unc
19 139868 Arm Suspension Mower
20 163552 Retainer Spring
31 169865 Bearing, Pvt. Lift.
32 73540600 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
