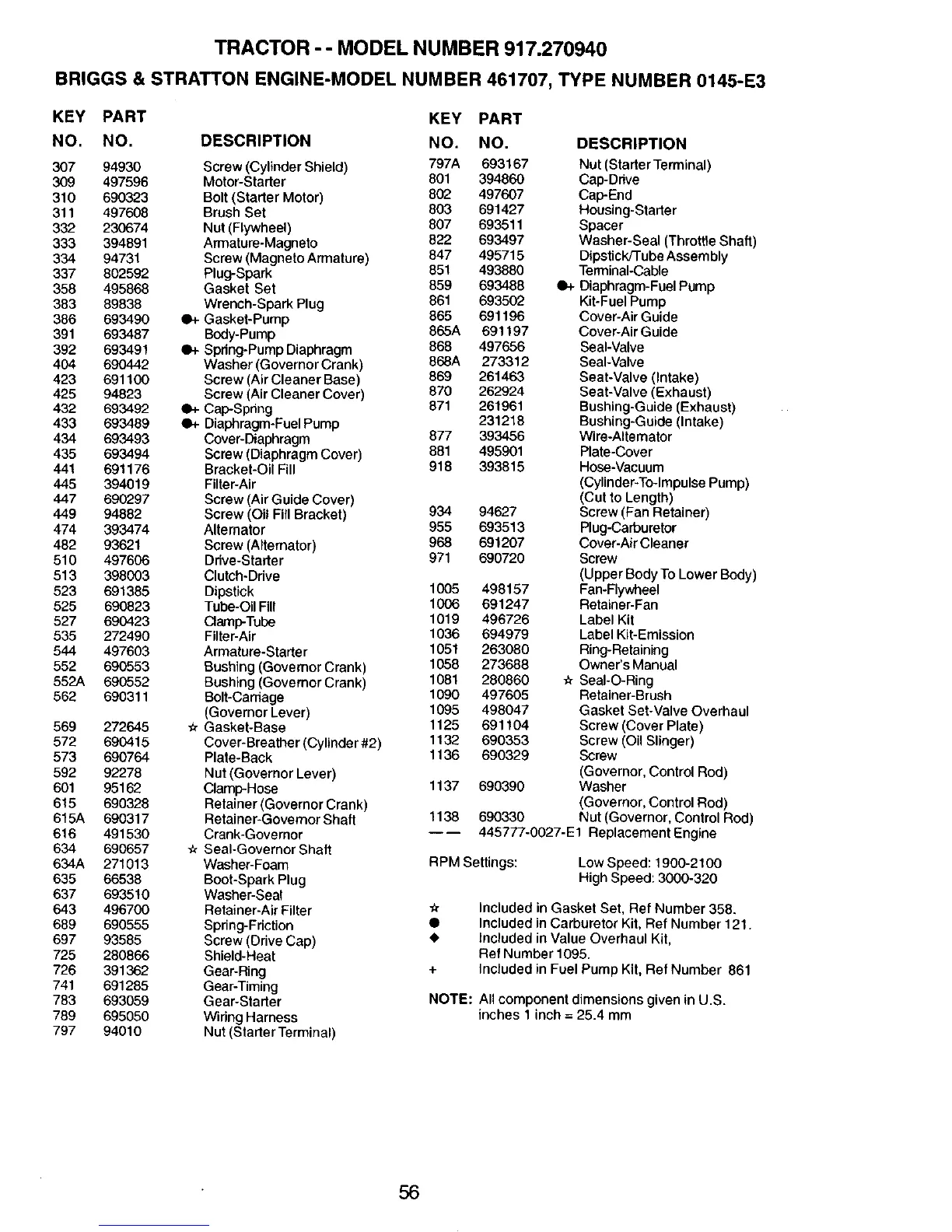

TRACTOR - - MODEL NUMBER 917.270940
BRIGGS & STRATTON ENGINE-MODEL NUMBER 461707, TYPE NUMBER 0145-E3
KEY PART KEY PART
NO, NO, DESCRIPTION NO. NO. DESCRIPTION
307 94930 Screw (Cylinder Shield) 797A 693167 Nut (Starter Terminal)
309 497596 Motor-Starter 801 394860 Cap-Drive
310 690323 Bolt (Starter Motor) 802 497607 Cap-End
311 497608 Brush Set 803 691427 Housing-Starter
332 230674 Nut (Flywheel) 807 693511 Spacer
333 394891 Armature-Magneto 822 693497 Washer-Seal (Throttle Shaft)
334 94731 Screw (Magneto Armature) 847 495715 Dipstick/Tube Assembly
337 802592 Plug-Spark 851 493880 Terminal-Cable
358 495868 Gasket Set 859 693488 _ Diaphragm-Fuel Pump
383 89838 Wrench-Spark Plug 861 693502 Kit-Fuel Pump
386 693490 0+ Gasket-Pump 865 691196 Cover-Air Guide
391 693487 Body-Pump 865A 691197 Cover-Air Guide
392 693491 _ Spring.Pump Diaphragm 868 497656 Seal-Valve
404 690442 Washer (Governor Crank) 868A 273312 Seal-Valve
423 691100 Screw (Air Cleaner Base) 869 261463 Seat-Valve(Intake)
425 94823 Screw (Air Cleaner Cover) 870 262924 Seat-Valve (Exhaust)
432 693492 0+ Cap-Spring 871 261961 Bushing-Guide (Exhaust)
433 693489 O¢- Diaphragm-Fuel Pump 231218 Bushing-Guide (Intake)
434 693493 Cover-Diaphragm 877 393456 Wire-Alternator
435 693494 Screw (Diaphragm Cover) 881 495901 Plate-Cover
441 691176 Bracket-Oil Fill 918 393815 Hose-Vacuum
445 394019 Filter-Air (Cylinder-To-Impulse Pump)
447 690297 Screw (Air Guide Cover) (Cut to Length)
449 94882 Screw (Oil Fill Bracket) 934 94627 Screw (Fan Retainer)
474 393474 Alternator 955 693513 Plug-Carburetor
482 93621 Screw (Alternator) 968 691207 Cover-Air Cleaner
510 497606 Drive-Starter 971 690720 Screw
513 398003 Clutch-Drive (Upper Body To Lower Body)
523 691385 Dipstick 1005 498157 Fan-Flywheel
525 690823 Tube-Oil Fill 1006 691247 Retainer-Fan
527 690423 Clamp-Tube 1019 496726 Label Kit
535 272490 Filter-Air 1036 694979 Label Kit-Emission
544 497603 Armature-Starter 1051 263080 Ring-Retaining
552 690553 Bushing (Governor Crank) 1058 273688 Owner's Manual
552A 690552 Bushing (Governor Crank) 1081 280860 _r Seal-O-Ring
562 690311 Bolt-Carriage 1090 497605 Retainer-Brush
(Governor Lever) 1095 498047 Gasket Set-Valve Overhaul
569 272645 _ Gasket-Base 1125 691104 Screw (Cover Plate)
572 690415 Cover-Breather (Cylinder #2) 1132 690353 Screw (Oil Slinger)
573 690764 Plate-Back 1136 690329 Screw
592 92278 Nut (Governor Lever) (Governor, Control Rod)
601 95162 Clamp-Hose 1137 690390 Washer
615 690328 Retainer (Governor Crank) (Governor, Control Rod)
615A 690317 Retainer-Governor Shaft 1138 690330 Nut (Governor, Control Rod)
616 491530 Crank-Governor 445777-0027-E1 Replacement Engine
634 690657 _ Seal-Governor Shaft
634A 271013 Washer-Foam RPM Settings: LowSpeed: t900-2100
635 66538 Boot-Spark Plug High Speed: 3000-320
637 693510 Washer-Seal
643 496700 Retainer-Air Filter _r Included in Gasket Set, Ref Number 358.
689 690555 Spring-Friction • Included in Carburetor Kit, Ref Number 121.
697 93585 Screw (Drive Cap) • Included in Value Overhaul Kit,
725 280866 Shield-Heat Ref Number 1095.
726 391362 Gear-Ring + Included in Fuel Pump Kit, Ref Number 861
741 691285 Gear-Timing
783 693059 Gear-Starter NOTE: All component dimensions given in U.S.
789 695050 Wiring Harness inches 1 inch = 25.4 mm
797 94010 Nut (Starter Terminal)
56
