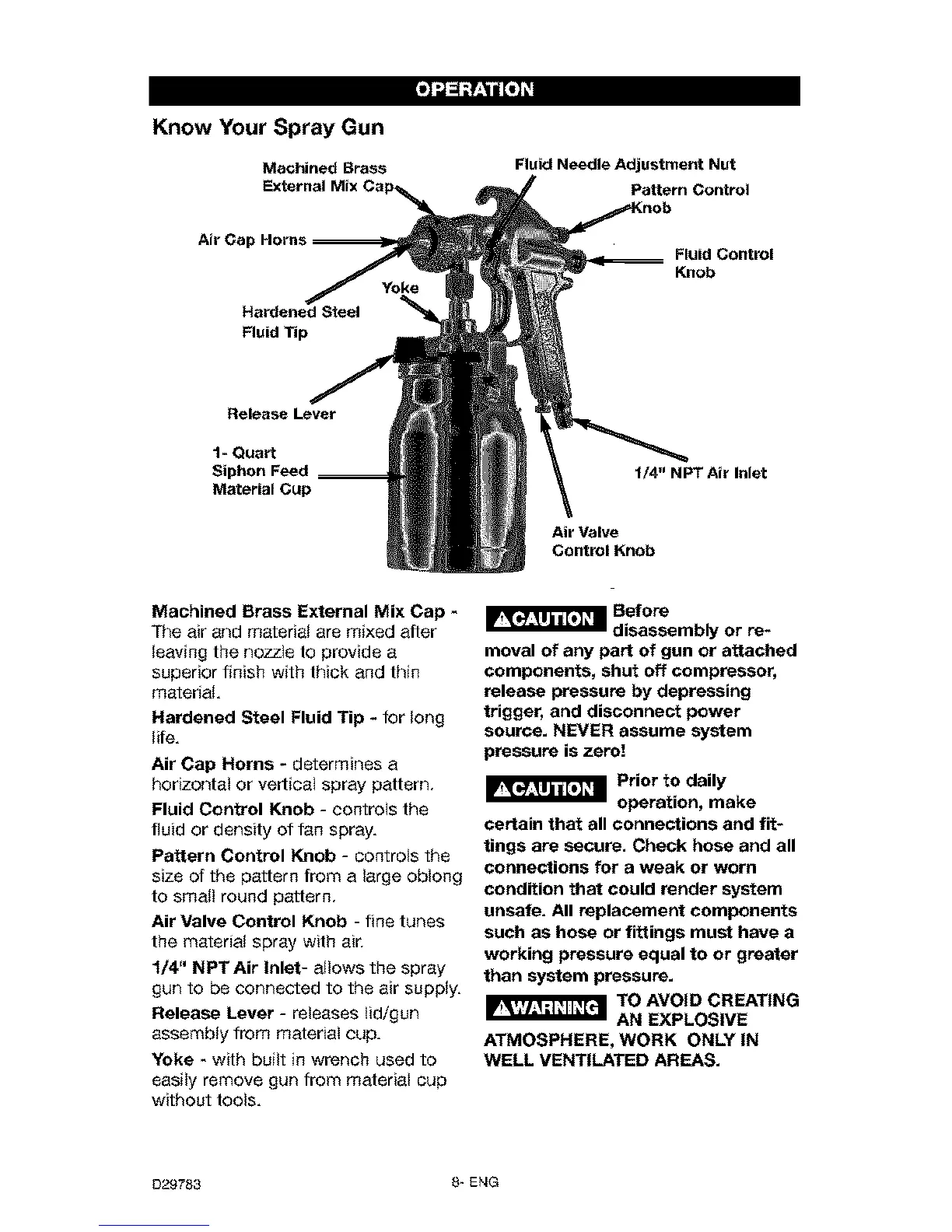

Know Your Spray Gun
Machined Brass
Fluid Needle Adjustment Nut
Pattern Control
Air Car
Hardened Steel
Fluid Tip
__ Fluid Control
Knob
Release Lever
1- Quart
Siphon Feed
Material Cup
1/4" NPT Air Inlet
Air Valve
Control Knob
Machined Brass External Mix Cap -
The air and material are mixed after
leaving the nozzle to provide a
superior finish with thick and thin
material
Hardened Steel Fluid Tip - for long
life.
Air Cap Horns - determines a
horizontal or veriical spray pattern,
Fluid Control Knob - controts the
fluid or density of fan spray.
Pattern Control Knob - controls the
size of the pattern from a targe oblong
to small round pattern,
Air Valve Control Knob - fine tunes
the material spray with air,
1t4" NPT Air Inlet- allows the spray
gun to be connected to the air supply.
Release Lever - releases tidigun
assembly from material cup.
Yoke - with built in wrench used to
easily remove gun from material cup
without tools.
_ Before
disassembly or re-
moval of any part of gun or attached
components, shut off compressor,
release pressure by depressing
trigger, and disconnect power
source. NEVER assume system
pressure is zero!
_!]_ Prior to daily
operation, make
certain that all connections and fit-
tings are secure. Check hose and all
connections for a weak or worn
condition that could render system
unsafe. All replacement components
such as hose or fittings must have a
working pressure equal to or greater
than system pressure.
_TO AVOID CREATING
AN EXPLOSIVE
ATMOSPHERE, WORK ONLY IN
WELL VENTILATED AREAS.
D29783 8" ENG
