Craftsman 919.167241 User Manual

48 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

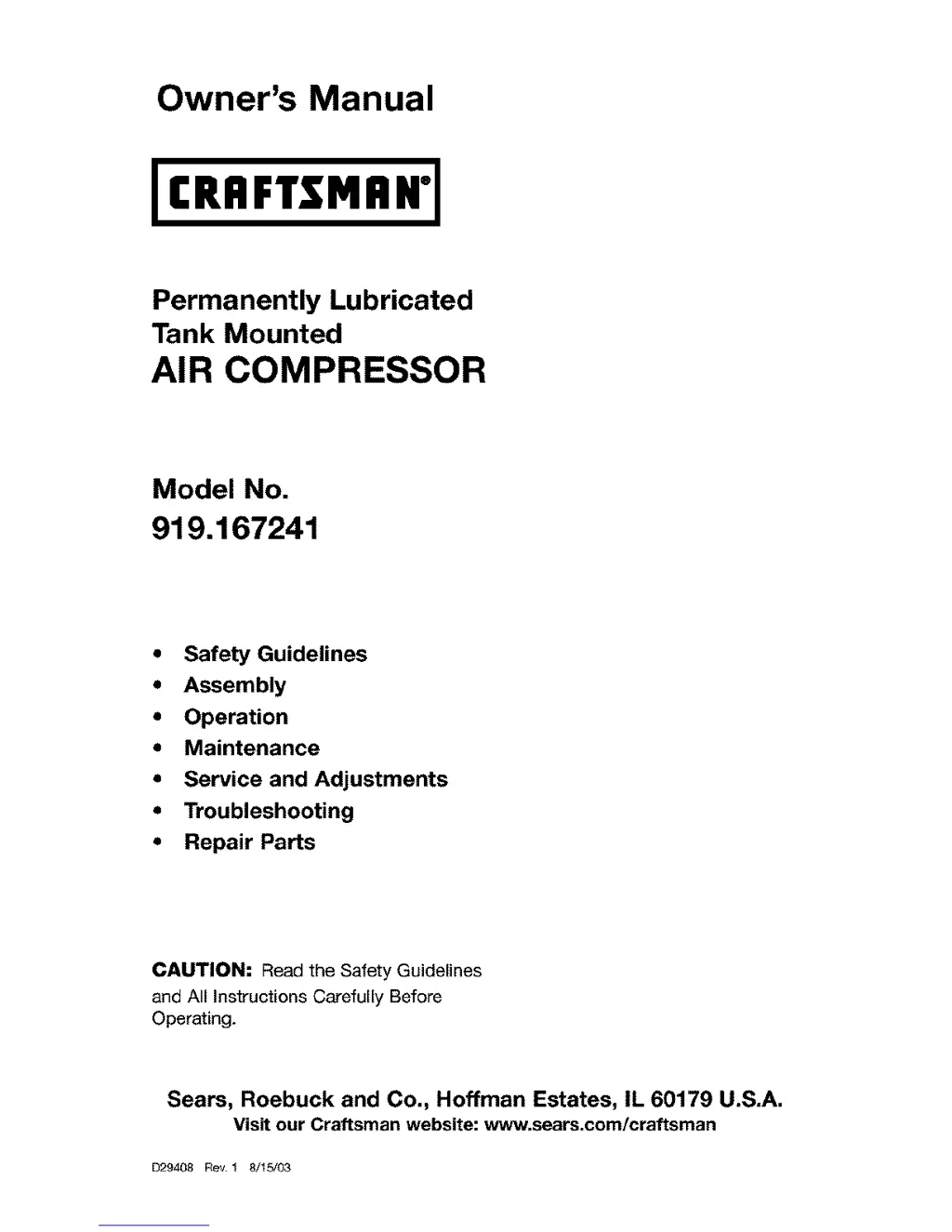

Owner's Manual

JCRRFTSMRN1

Permanently Lubricated

Tank Mounted

AIR COMPRESSOR

Model No.

919.167241

• Safety Guidelines

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Troubleshooting

• Repair Parts

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

D29408 Revl 8/15/03

Table of Contents

Questions and Answers:

E
Erika SanchezAug 13, 2025
Why is my Craftsman 919.167241 not supplying enough air?
- S
  stephenlopezAug 13, 2025
  If your Craftsman Air Compressor isn't supplying enough air, it could be due to several reasons. You might be using too much air for extended periods, or the compressor itself might not be large enough for your air requirements. Other potential causes include a hole in the hose, a restricted check valve, or air leaks. To address this, decrease your air usage or consider a larger compressor if your accessory's air requirement exceeds what your current compressor can supply. Also, inspect the hose for any holes and replace it if necessary. Clean or replace the check valve if it's restricted, and tighten any fittings where you detect air leaks.
K
Karen JonesAug 16, 2025
How to fix a Craftsman 919.167241 motor that will not run?
- K
  katherinedunlapAug 16, 2025
  If your Craftsman Air Compressor motor won't run, start by checking the fuse box for any blown fuses and replace them as needed. Also, check the circuit breaker and reset it if it has tripped. Ensure that you're not using a fuse or circuit breaker with a higher rating than specified. Verify that you are using a time delay fuse. Check for low voltage issues. Inspect the extension cord for any problems. Disconnect other appliances from the circuit or operate the compressor on its own branch circuit. Check the wiring connections inside the terminal box.
C
Charles GarzaAug 20, 2025
How to fix air leaks at fittings on a Craftsman Air Compressor?
- J
  Jamie NunezAug 20, 2025
  If you hear air leaks at the fittings of your Craftsman Air Compressor, it's likely that the tube fittings aren't tight enough. Tighten the fittings where you hear air escaping. You can also check the fittings using a soapy water solution to identify leaks. Be careful not to overtighten the fittings.
J
Jordan MooreAug 25, 2025
What to do if Craftsman 919.167241 Air Compressor regulator knob has continuous air leak?
- N
  Nicole RogersAug 25, 2025
  If the regulator knob on your Craftsman Air Compressor has a continuous air leak, the regulator is likely damaged and needs to be replaced.
C
Crystal MillerAug 28, 2025
What to do if Craftsman 919.167241 regulator will not shut off air outlet?
- S
  Scott ClarkAug 28, 2025
  If the regulator on your Craftsman Air Compressor won't shut off the air outlet, it indicates that the regulator is damaged and needs to be replaced.
D
david86Sep 1, 2025
What to do if Craftsman 919.167241 Air Compressor safety valve leaks air?
- D
  Derek HardySep 1, 2025
  If the safety valve on your Craftsman Air Compressor is leaking air, there might be a defect in the safety valve. Try manually operating the safety valve by pulling on the ring. If the valve continues to leak after doing this, it should be replaced.
M
Mary HarmonSep 5, 2025
What causes air leaks in the tank of a Craftsman Air Compressor?
- Y
  yolandagibsonSep 5, 2025
  If there are air leaks in the air tank or at the air tank welds of your Craftsman Air Compressor, or if there are air leaks between the head and valve plate, it could indicate a defective air tank or a leaking seal. The air tank must be replaced. It is important not to attempt to repair the leak, drill into, weld, or modify the air tank, as this can weaken it and cause it to rupture or explode.
C
cunderwoodSep 8, 2025
Why does the safety valve pop off on my Craftsman 919.167241 Air Compressor?
- H
  Heidi GuerraSep 8, 2025
  If the safety valve on your Craftsman Air Compressor pops off due to excessive tank pressure, it indicates that the pressure switch isn't shutting off the motor when the compressor reaches its cut-out pressure, or the pressure switch cut-out is set too high. Move the On/Auto/Off lever to the "OFF" position; if the unit still doesn't shut off, contact a Trained Service Technician.
