Exhaust 0 50 mm
Fuel return Ø 8 mm
Fuel supply
Ø 8 mm
Sea water
intake
Ø 20 mm
385
579
195
Title part xxx
Subtitle part xxx
44
craftsman marine diesel engines CM4.33 / cm4.42

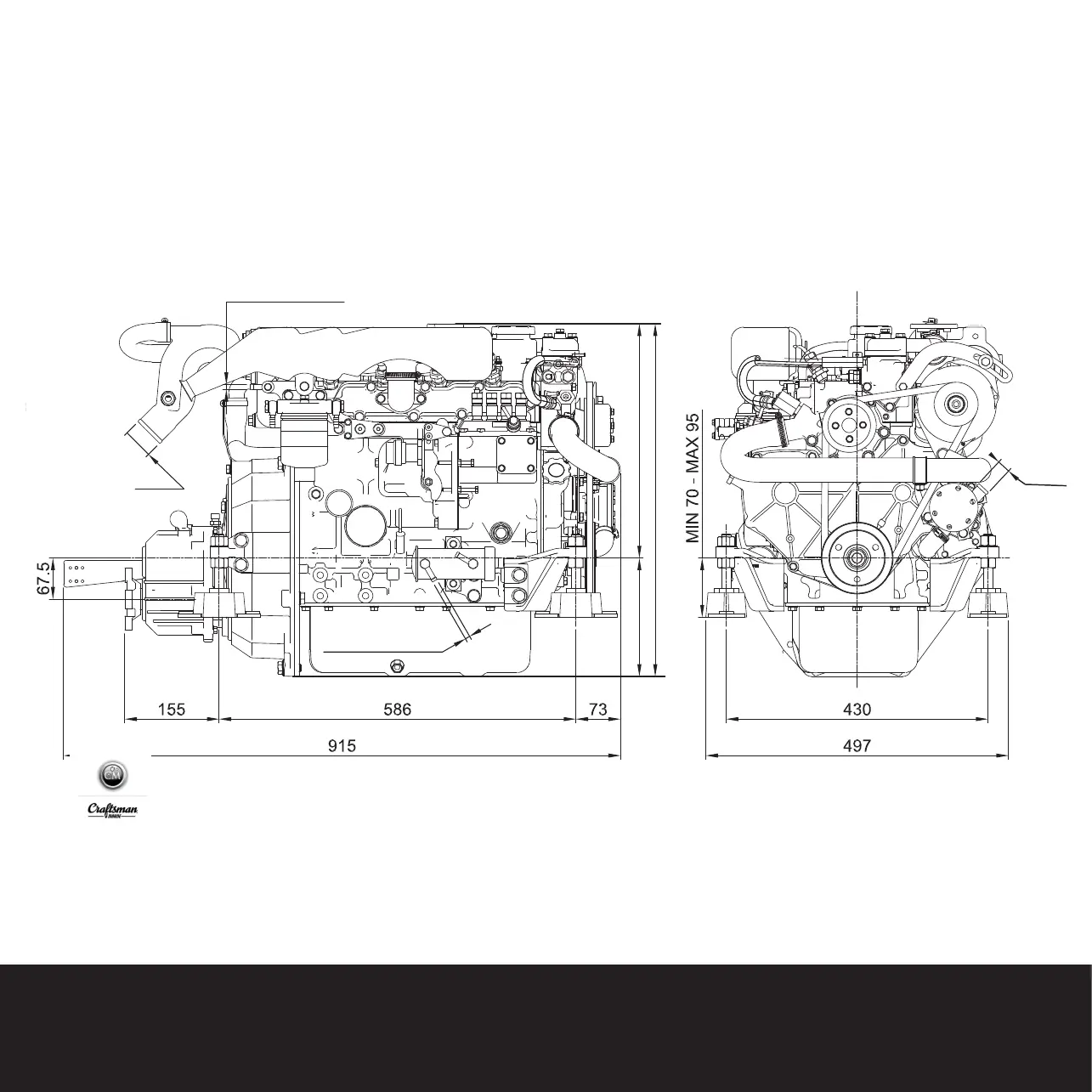

17 Overall Dimensions
CM4.33
