surface . Use caution when drilling, nailing or cutting into walls , floors and ceilings
which may contain electrical wiring or pipes . These items may be detected by the
sensor in the same manner in which studs are detected. Because studs are normally
spaced 16 inches (406 mm) or 24 inches (610 mm) apart and are usually 1- 1/2
inches (38 mm) wide , beware of anything closer together or of a different width .
Always turn off the power when working near electrical wires.
0
• Avoid expo s ure - Laser
radiation emitted from
th is aperture .
..... _ ...
·-·- -· -- -
· -· ·- -· ·-
· --- - --
_-.:. •.;.-: : :.:
__ _ l~I
~
I CRAFTSMAN .,
e

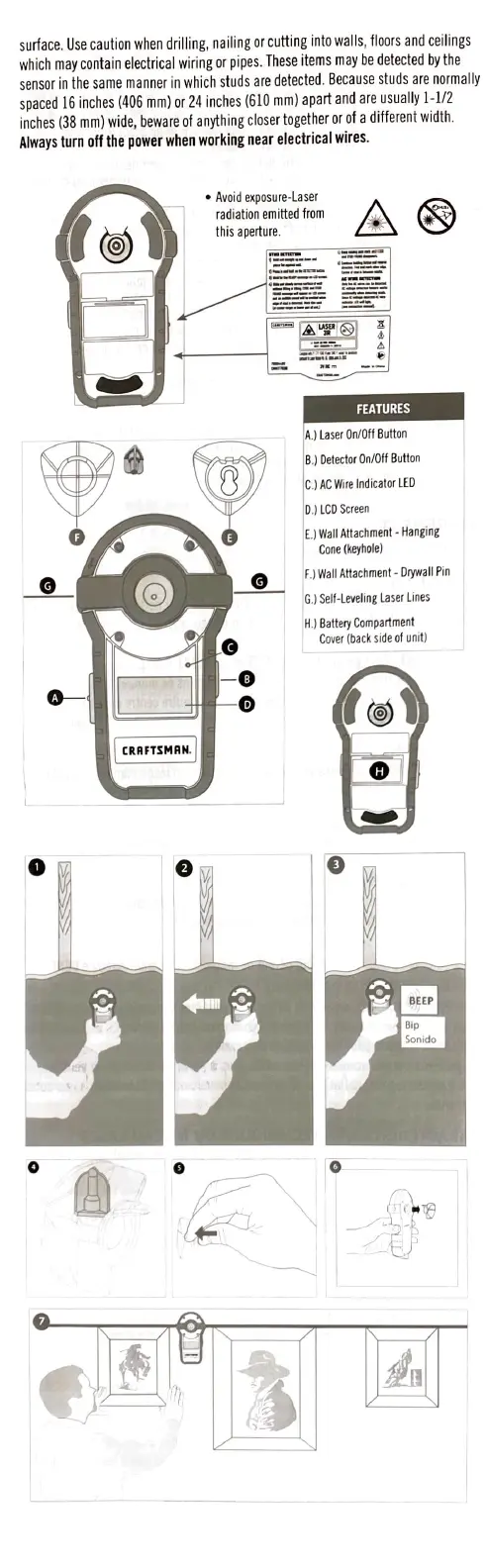

FEATURES
A.) La ser On/O ff Butt on
B.) Det
ec tor On/ Off Butt on
C.) AC Wi re Indi ca tor LED
D.) LCD Sc r een
E.) Wall Attach men t - Han ging
Cone (keyhole)
F.) Wall Attac hm e nt - Drywa ll Pin
G.)
Se lf- Leveling La se r Line s
H
.) Ba tt e ry Co mpartm e nt
C ove r ( ba ck si de of un it)
