Craftsman CMXEVBE175940 User Manual

7

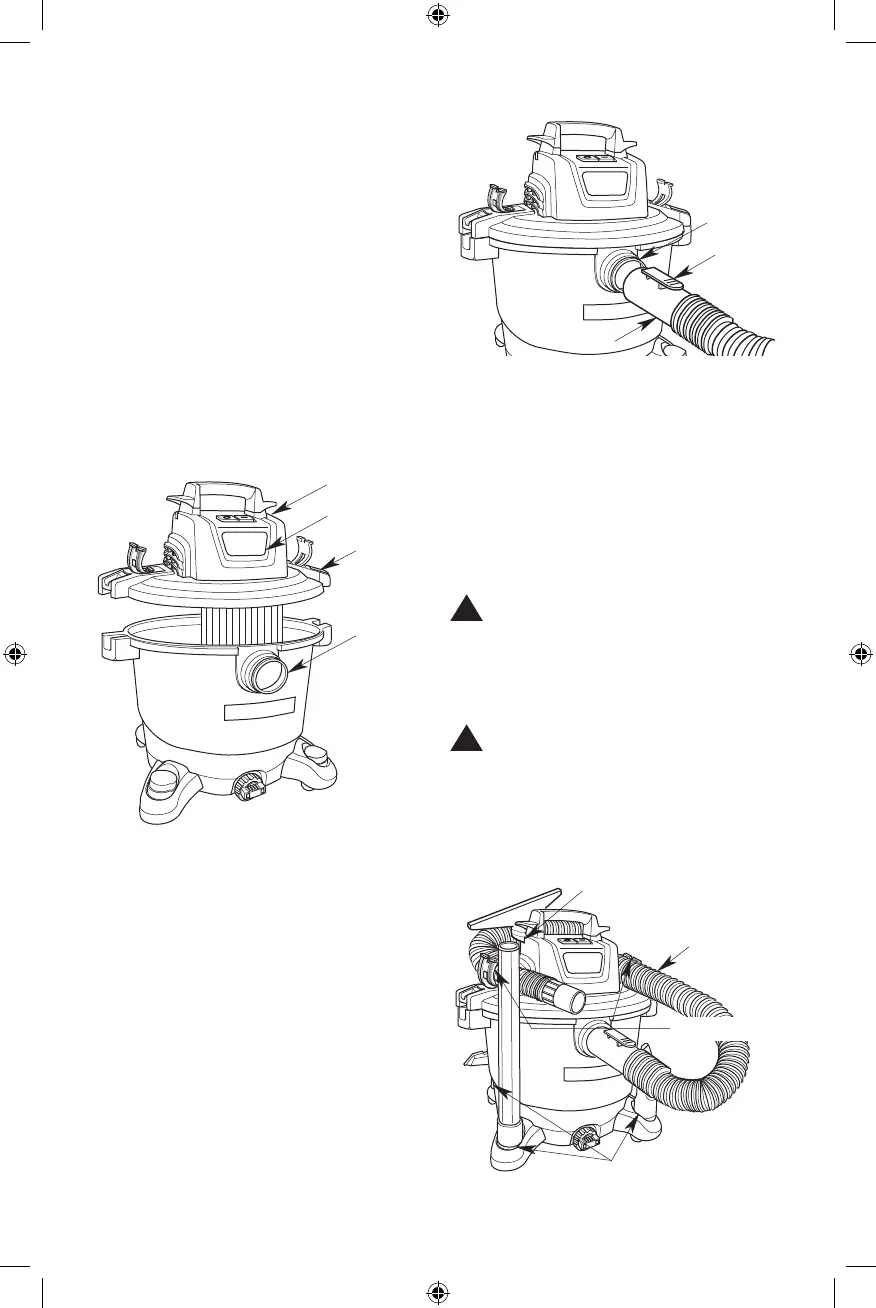

Insert Hose (Fig. G)
Insert the Locking End of the Hose Assembly into the Vac
Inlet. The Hose should snap into place.
To remove the Hose from the Vac, press the Release Button
on the Hose Assembly and pull the Hose out of the Vac
Inlet, as shown.
Vac Inlet
Release
Button
Hose
Caster Feet Storage
for Accessories
Hose
Hose Clips
Powerhead Assembly
Storage for Accessories
Accessory Storage (Fig. H)
Your Accessories may be stored in the Caster Feet or
in the storage locations on the Powerhead Assembly
(in applicable models).
The Hose may also be stored by wrapping it around the
unit and securing it into the Hose Clips (in applicable
models).
Vac Assembly (Fig. F)
1. Line up front (label side) of Powerhead Assembly with
Vac Inlet located on the front of the Drum.
NOTE: Powerhead Assembly must be aligned with Drum
for proper attachment.
2. Place Powerhead Assembly on top of Drum.
3. Be sure Powerhead Assembly completely covers the
top of the Drum so leakage does not occur.
4. Press down on the Lid Latches to securely attach the
Powerhead Assembly to the Drum.
5. To remove the Powerhead Assembly, first unplug the
unit from the electrical outlet. Then lift up on the Lid
Latches and remove from Drum.
Powerhead
Assembly
Lid
Latches
Vac
Inlet
Label
20 Gallon (75 Liters) Shown
20 Gallon (75 Liters) Shown
20 Gallon (75 Liters) Shown
Fig. F
Fig. G
Fig. H
CAUTION:
Do not operate vacuum while the hose is still wrapped
around the powerhead assembly in the storage
position.
WARNING:
Do not put any object into ventilation openings.
Do not vacuum with any ventilation openings blocked;
keep free of dust, lint, hair or anything that may reduce
air flow.
!
!
SP7075-1 6, 9, 12, 16, 20 Gallon 2019.indb 7 2/22/19 10:31 AM

Craftsman CMXEVBE175940 Specifications

General

Model Number	CMXEVBE175940
Type	Wet/Dry Vacuum
Tank Capacity	5 gallons
Hose Length	7 ft
Filter Type	Foam and felt filter
Cord Length	10 ft
Included Accessories	utility nozzle
Horsepower	1.75 HP
