Craftsman E405 User Manual

40 pages

To Next Page

To Next Page

Page #1 background image

Loading...

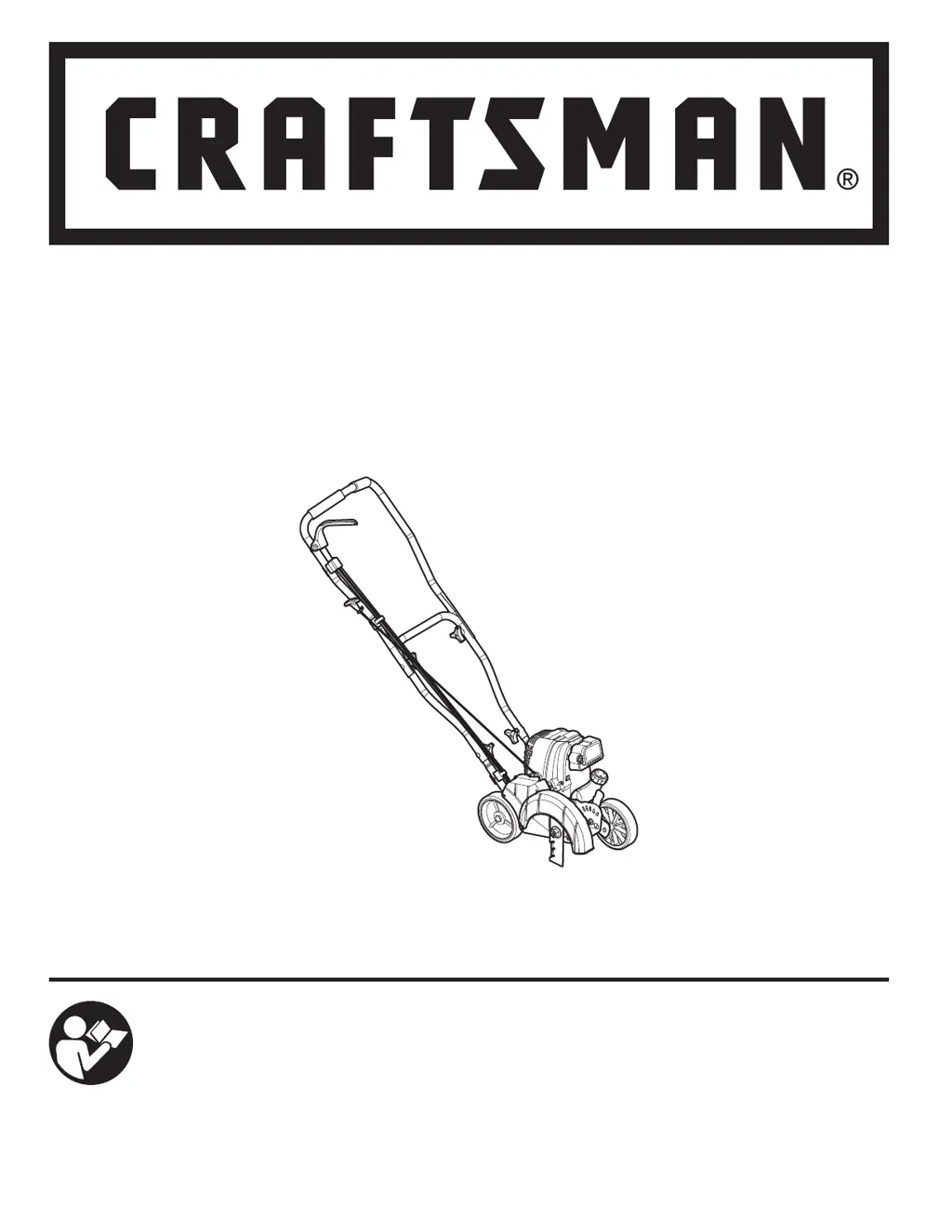

Page #1 background image

769-23630 / 00 10/19

4-CYCLE GAS LAWN EDGER

BORDEADORA DE CÉSPED DE GAS DE 4 TIEMPOS

OPERATOR’S MANUAL | MANUAL DEL OPERADOR

E405

CMXGKAME30A

1-888-331-4569 WWW.CRAFTSMAN.COM

IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.

SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.

Questions and Answers:

S
Sharon DiazJul 28, 2025
How to start a Craftsman Lawn Mower that won't start?
- S
  Stephen CochranJul 28, 2025
  If your Craftsman Lawn Mower engine won't start, it might be due to several reasons. First, ensure the fuel tank is filled with fresh fuel. If the primer bulb wasn't pressed enough, try pressing it 10 times. Old fuel (over 30 days) can also be a culprit; in this case, drain the tank and add fresh fuel. A fouled spark plug should be replaced. In case the engine is hot, refer to the 'IF... THE ENGINE IS HOT' instructions in the Starting and Stopping section.
A
anthonyhowardAug 5, 2025
Why does my Craftsman E405 engine lack power or stalls?
- M
  Miss Monica CarlsonAug 5, 2025
  If your Craftsman Lawn Mower engine lacks power or stalls, the possible causes include old fuel (over 30 days), a dirty air filter, or a fouled spark plug. To resolve this, drain the fuel tank and add fresh fuel, clean or replace the air filter, and replace the spark plug.
E
Emily RichAug 12, 2025
Why Craftsman E405 engine will not idle?
- V
  vmayerAug 12, 2025
  If your Craftsman Lawn Mower engine will not idle, the possible causes include a dirty air filter, old fuel (over 30 days), or an incorrect idle speed. To address this, you can clean or replace the air filter, drain the fuel tank and add fresh fuel, or adjust the idle speed.
V
Victor PettyAug 20, 2025
What to do if Craftsman E405 Lawn Mower engine will not accelerate?
- B
  brownrebeccaAug 20, 2025
  If your Craftsman Lawn Mower engine will not accelerate, consider these potential causes: old fuel (over 30 days), a blade bound with dirt or grass, or a dirty air filter. You should drain the fuel tank and add fresh fuel. Stop the engine, remove the spark plug, and clean the blade. Clean or replace the air filter.

Craftsman E405 Specifications

General

Engine Type	4-Cycle
Engine Displacement	140 cc
Cutting Positions	6
Power Source	Gas
Cutting Width	21 inches
Cutting Height	1.25-3.75 in.
Warranty	2-year limited

Summary

Safety

Important Safety Instructions

Gas Unit Safety Warnings

Safe Operation Guidelines

Guidelines for safe operation of the unit, covering personal protective equipment and handling.

Know Your Unit

Specifications

Assembly

Handle Assembly

Step-by-step instructions for assembling the handle components of the edger.

Throttle Cable Routing

Oil and Fuel

Selecting the Right Oil

Instructions on selecting and using the correct type of oil for the engine.

Initial Oil Addition

Selecting the Right Fuel

Guidance on using fresh, clean unleaded gasoline and avoiding old or blended fuels.

Fueling Procedures

Starting and Stopping

Starting the Engine

Detailed steps for starting the lawn edger engine, including primer and throttle operation.

Stopping the Engine

Instructions on how to safely stop the lawn edger engine using the On/Off switch.

Operation

Proper Unit Handling

Cutting Depth Adjustment

Procedure for adjusting the depth of the edger blade for desired cutting depth.

Checking Engine Oil Level

Changing Engine Oil

Air Filter Maintenance

Spark Plug Maintenance

Cleaning and Storage

Unit Cleaning

Unit Storage

Troubleshooting

Troubleshooting: Engine Won't Start

Identifies common causes and solutions when the engine fails to start.

Troubleshooting: Engine Won't Idle

Troubleshooting: Engine Won't Accelerate

Troubleshooting: Engine Power Loss
