Craftsman Quickwind CMCST920 User Manual

7
ENGLISH

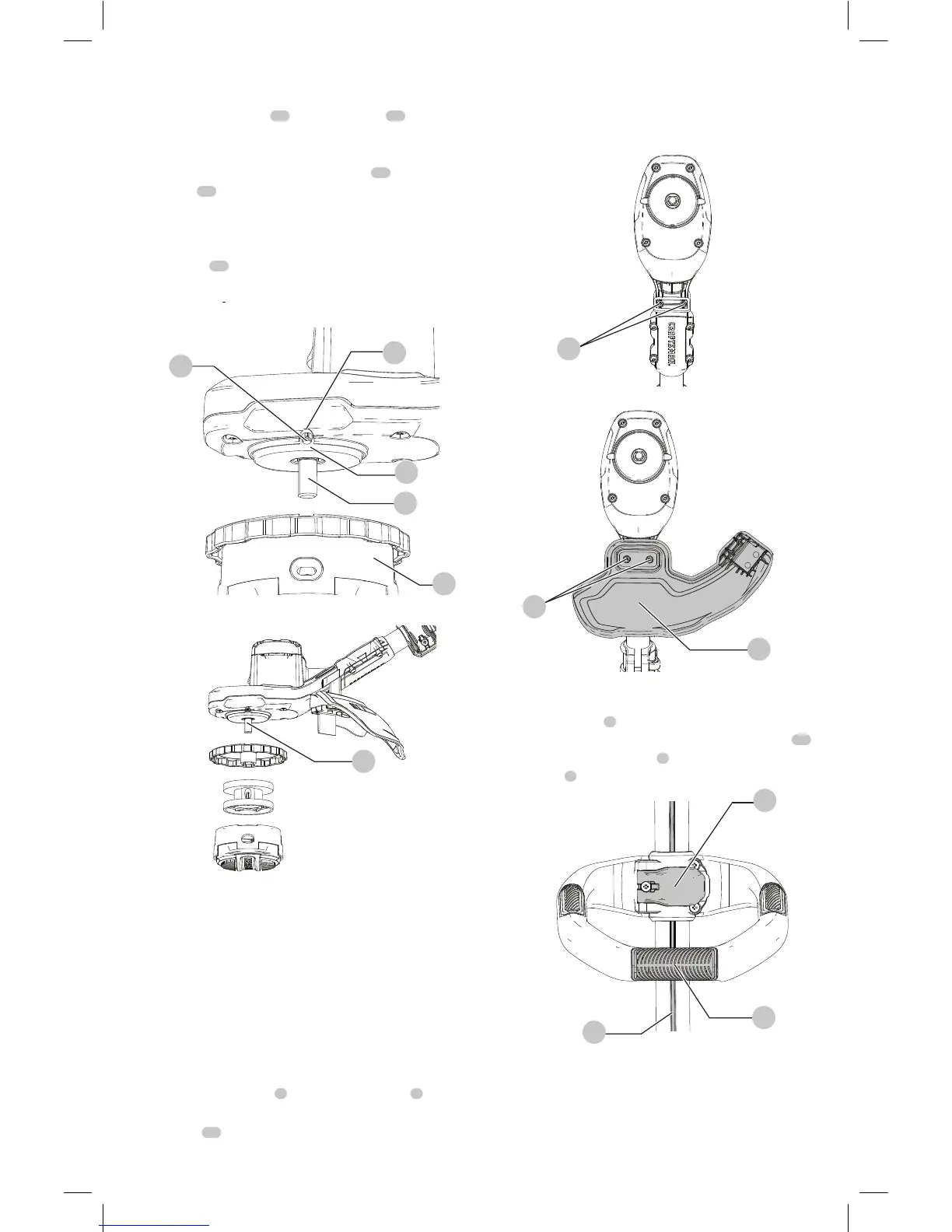

Attaching Spool Assembly (Fig. B, C)
1. Install spindle plate
22
onto the spindle
23
, so the
double D shaped retaining nut on the spindle sits inside
the base of the spindleplate.
2. Rotate the spindle plate until the hole
24
aligns with
notch
25
in the housing. Insert the included rod
through the notch and into the hole, to prevent the
spindle fromturning.
3. While holding the rod in place, thread the new spool
housing
10
with spool grip cover counterclockwise.
Securely tighten the new spool housing onto
thespindle.
Fig.B
23
10
24
25
22
Fig.C
23
Attaching Guard (Fig. D, E)

WARNING: Never remove the guard.
Damage or personal injury couldresult.

WARNING: NEVER OPERATE
APPLIANCE WITHOUT GUARD FIRMLY IN PLACE.
The guard must always be properly attached on the
appliance to protect theuser.
1. Assemble the guard
9
to the motor housing
5
.
2. Using a cross head screwdriver, insert the 2 guard
screws
15
and tighten securely.
NOTE: An extended coverage guard is available (sold
separately) for extra coverage if desired. Use CRAFTSMAN
replacement guard Part Number N636336.
Fig.D
5
Fig.E
15
9
Adjusting the Auxiliary Handle (Fig. F)
The auxiliary handle
4
is positioned to maximize balance.
However, if adjustment is necessary, flip open the latch
21
and slide the auxiliary handle
4
up or down the upper
trimmer pole
6
.
21
6
4
Fig.F
OPERATION

WARNING: To reduce the risk of
serious personal injury, turn unit off and
