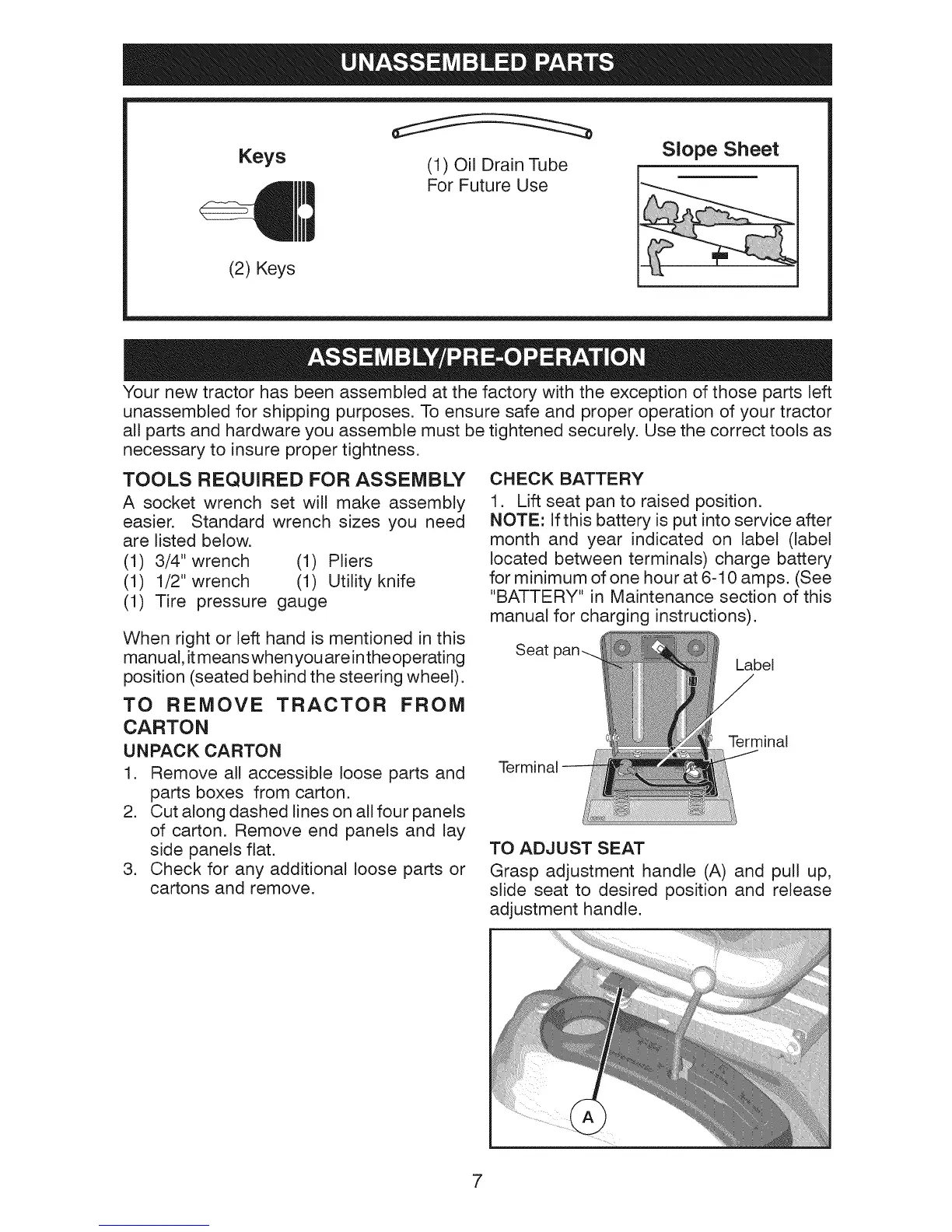

Keys
(2) Keys
(1) Oil Drain Tube
For Future Use
Slope Sheet
Your new tractor has been assembled at the factory with the exception of those parts left
unassembled for shipping purposes. To ensure safe and proper operation of your tractor
all parts and hardware you assemble must be tightened securely. Use the correct tools as
necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly
easier. Standard wrench sizes you need
are listed below.
(1) 3/4" wrench (1) Pliers
(1) 1/2" wrench (1) Utility knife
(1) Tire pressure gauge
When right or left hand is mentioned in this
manual, itmeans when you are inthe operating
position (seated behind the steering wheel).
TO REMOVE TRACTOR FROM
CARTON
UNPACK CARTON
1. Remove all accessible loose parts and
parts boxes from carton.
2. Cut along dashed lines on all four panels
of carton. Remove end panels and lay
side panels flat.
3. Check for any additional loose parts or
cartons and remove.
CHECK BATTERY
1. Lift seat pan to raised position.
NOTE: If this battery is put into service after
month and year indicated on label (label
located between terminals) charge battery
for minimum of one hour at 6-10 amps. (See
"BATTERY" in Maintenance section of this
manual for charging instructions).
Seat
Label
Terminal
Terminal
TO ADJUST SEAT
Grasp adjustment handle (A) and pull up,
slide seat to desired position and release
adjustment handle.
7
