CraftUnique CraftBot Plus - Exploded View

Version V1.0
Page: 6 / 32
Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.

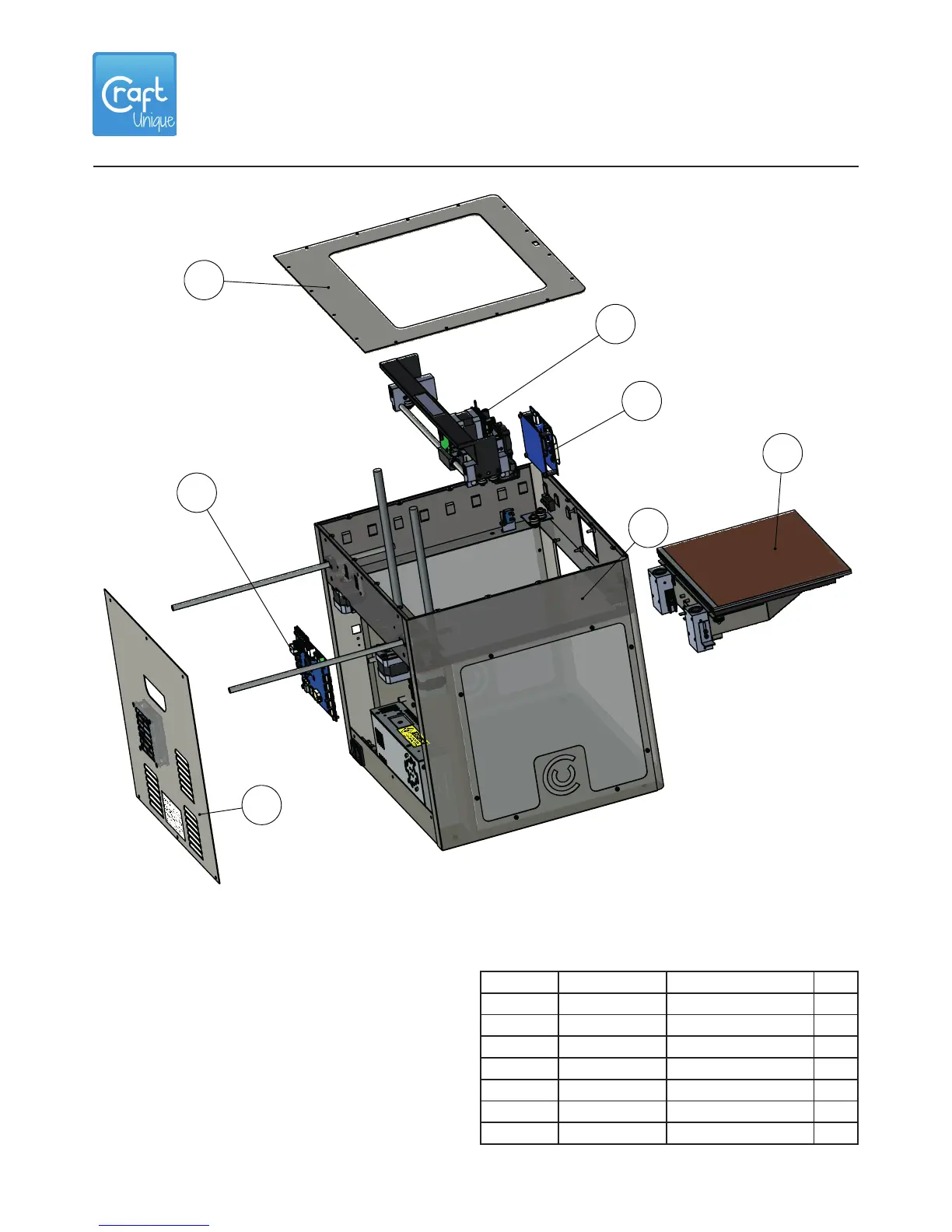

3. Exploded view - Overview
6
3
5
4
7
2
1
ITEM NO. ORDER NUMBER PART NAME QTY.
1 Frame top 1
2 Frame back 1
3 Frame assembly 1
4 Extruder assembly 1
5 HMI assembly 1
6 Bed assembly 1
7 Pr3Dator PCB 1
