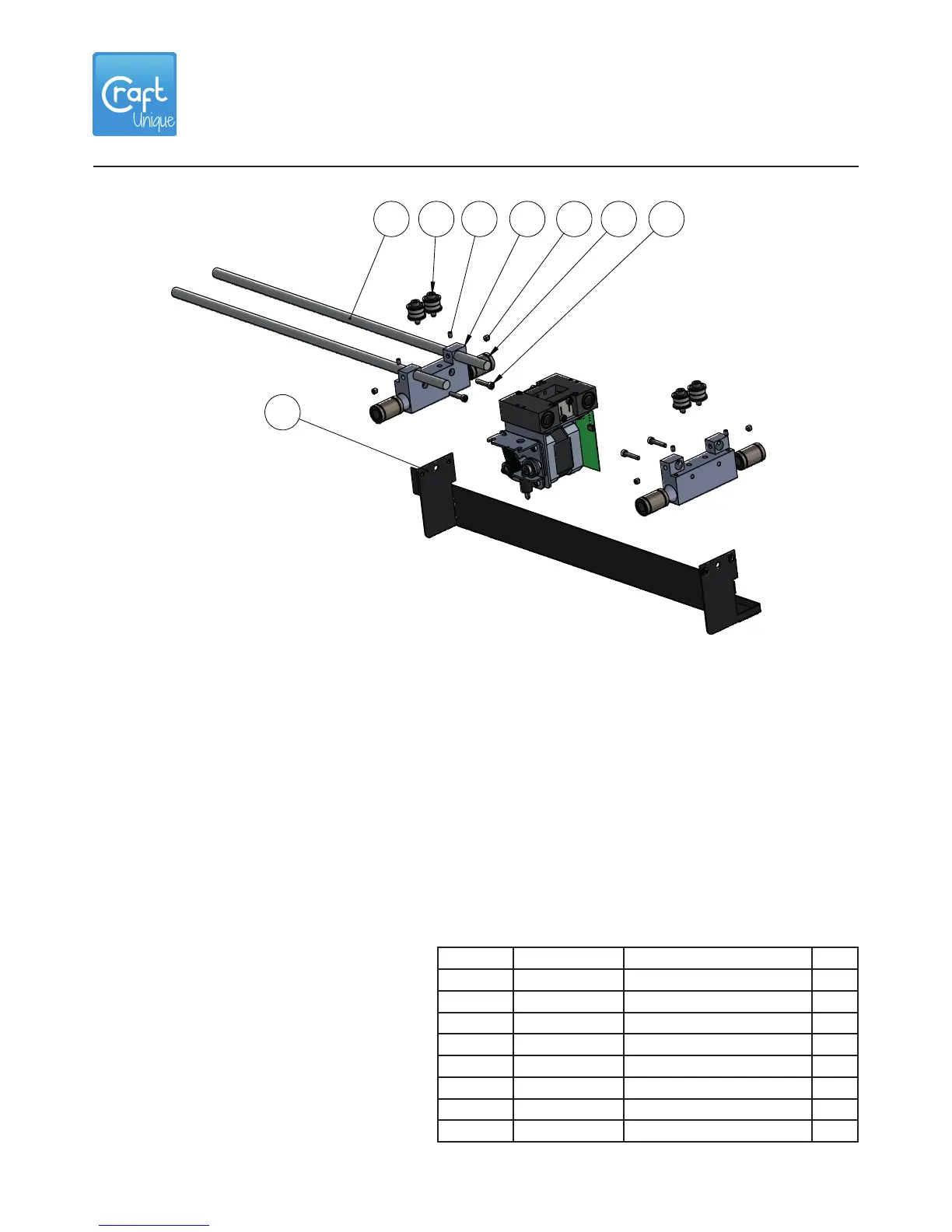

3.1 Exploded view - X-cross
762 4 85
3
1
ITEM NO. ORDER NUMBER PART NAME QTY.
1 ma.001.002 Block Y 2
2 bm.001.005 Rod X 2
3 sp.001.011 X-Cross cover 1
4 sc.002.004 Screw DIN913 M3L4 4
5 bm.000.022 Linear bearing - LM8UU 4
6 bm.001.004 Flanged bearing F624Z 4
7 sc.002.006 Screw DIN913 M4L4 4
8 sc.002.010 Screw DIN912 M3L16 4
