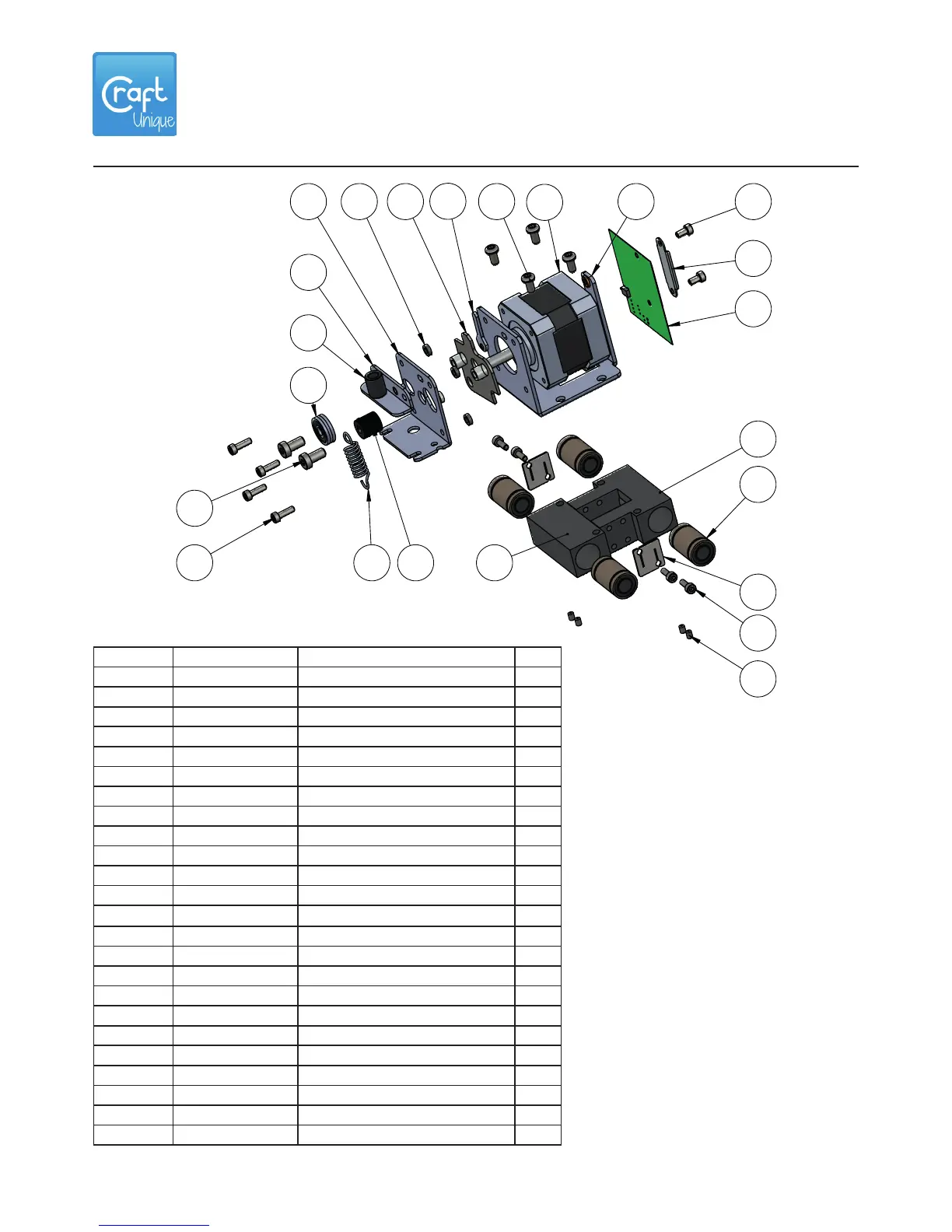

3.2 Exploded view - Extruder
20
19
5
3
23
24
17
2
1
4
1887
9
10
11
22
13
14
15
25 16
21
ITEM NO. ORDER NUMBER PART NAME QTY.
1 sm.001.004 Extruder base 1
2 ma.001.017 Block X2 1
3 ma.001.016 Block X2 1
4 be.000.007 Stepper motor 17hs3001-20b 1
5 bm.000.022 Linear bearing - LM8UU 4
6 by.001.003 Washer M3L2 plastic 1
7 ma.001.001 Washer M3L2 metal 3
8 sm.001.035 Extruder swing 1
9 sm.000.001 Extruder excenter 1
10 sm.001.005 Extruder front 1
11 sm.001.006 Extruder top 1
13 sc.002.008 Screw DIN912 M3L10 4
14 sc.002.017 Screw DIN912 M5L10 2
15 bm.001.001 Filament bearing 1
16 bm.000.025 Filament drive gear v2 1
17 sc.002.004 Screw DIN913 M3L4 5
18 sc.002.003 Screw DIN7380 M4L8 4
19 el.000.001 FFC PCB v1.1 1
20 sp.000.004 FFC gripper 1
21 sc.002.012 Screw DIN912 M3L6 2
22 ma.001.007 PTFE top holder 1
23 ma.000.003 Belt holder 2
24 sc.002.013 Screw DIN912 M3L8 4
25 bm.000.014 Extruder spring 1
