CraftUnique CraftBot Plus - Hotend Assembly

Version V1.0
Page: 9 / 32
Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.

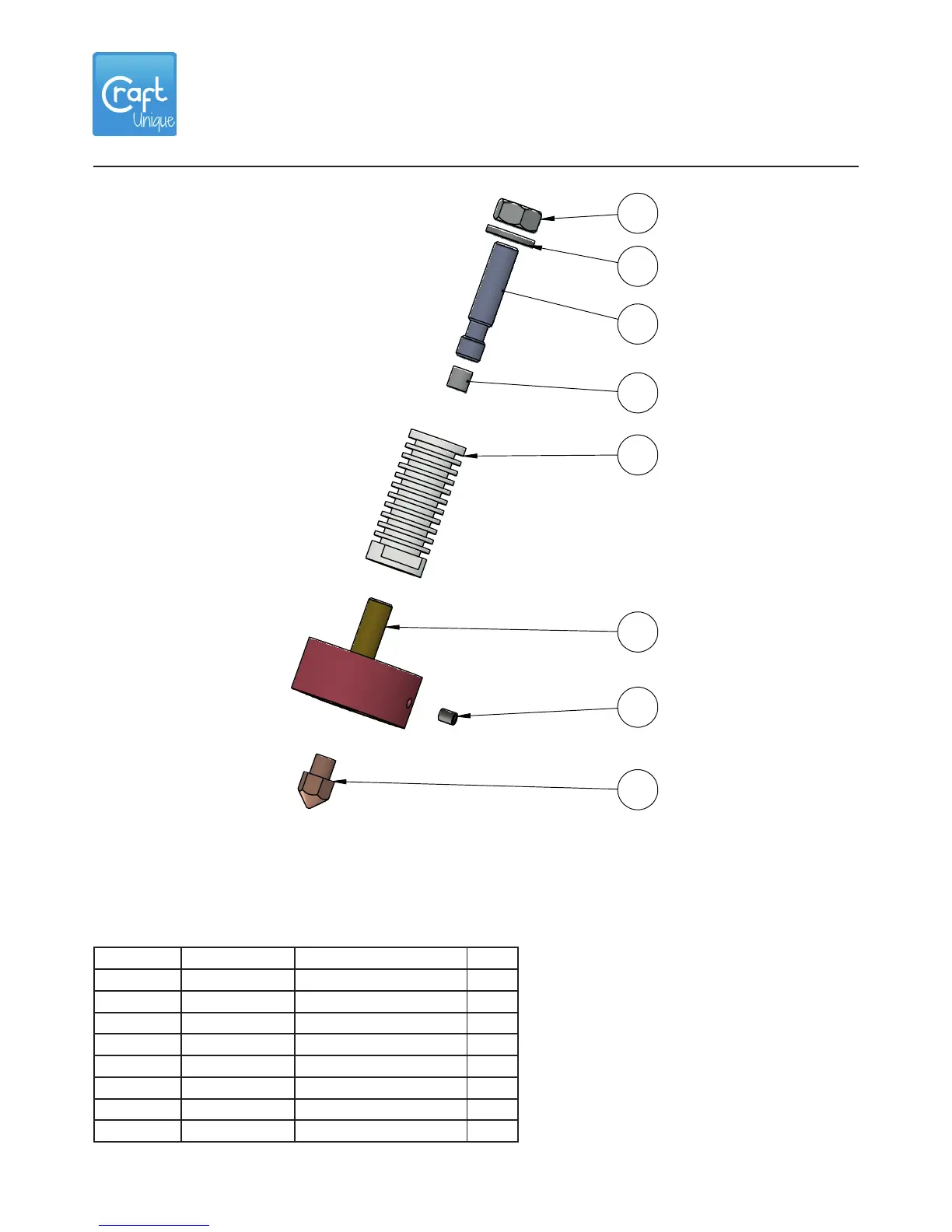

3.3 Exploded view - Hotend
8
7
6
5
4
2
3
1
ITEM NO. ORDER NUMBER PART NAME QTY.
1 bm.000.016 MK8 0.4mm Nozzle 1
2 ma.001.005 Cuhead with silicone 1
3 sc.002.004 Screw DIN913 M3L4 1
4 ma.001.006 Hotend peek 1
5 ma.001.008 PTFE washer 1
6 ma.001.015 Peek holder 1
7 sc.001.003 Washer DIN125 M6 1
8 sc.003.004 Nut DIN934 M6 1
