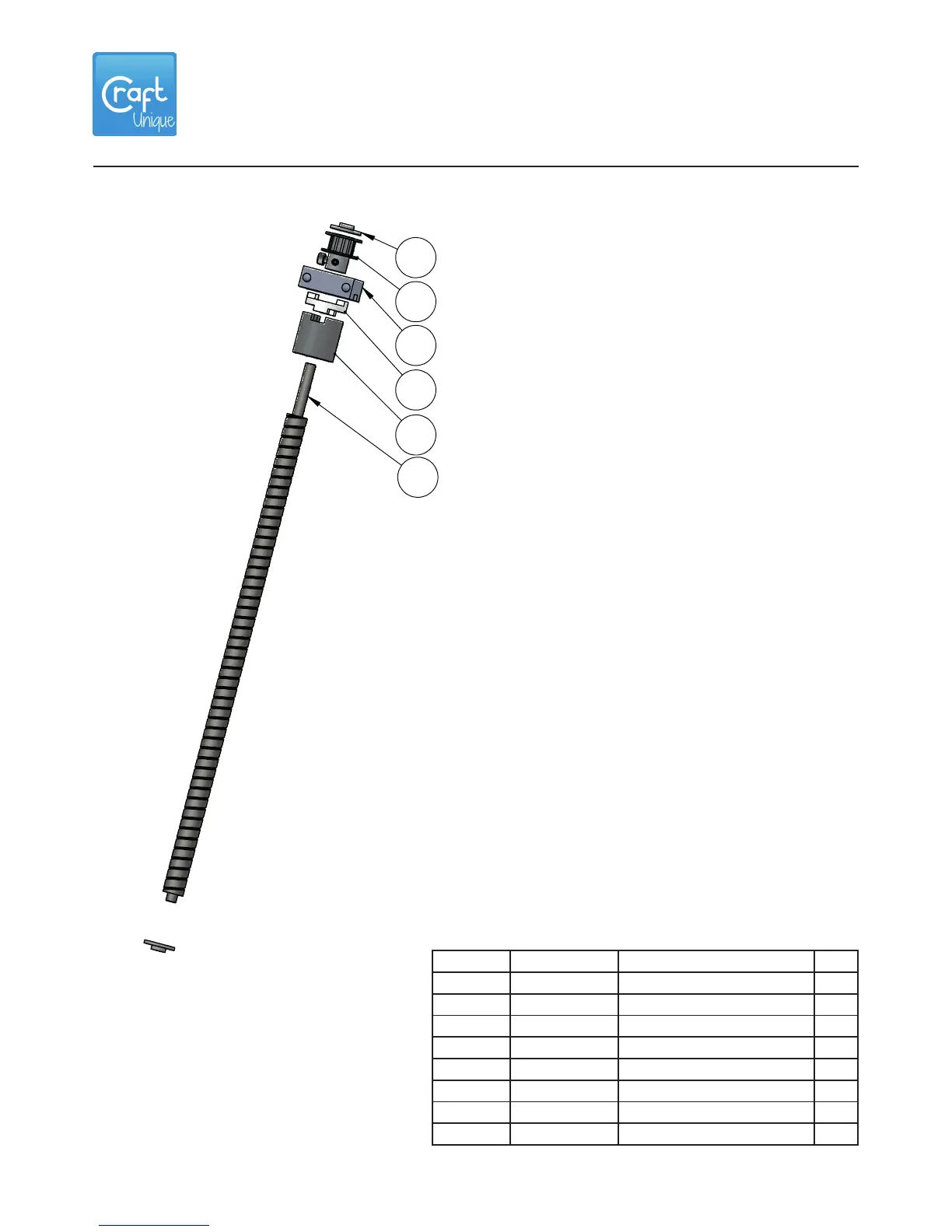

3.4 Exploded view - Z screw
1
2
3
4
5
6
ITEM NO. ORDER NUMBER PART NAME QTY.
1 bm.001.010 Z screw bush 2
2 bm.000.024 Pulley GT2 6mm 20 teeth 1
3 ma.001.011 Z holder 1
4 ma.001.010 Z coupler 1
5 ma.001.012 TR8x2 Z nut 1
6 ma.001.013 Z screw CBP TR8x2 1
7 sc.002.011 Screw DIN912 M3L4 1
8 sc.002.004 Screw DIN913 M3L4 1
