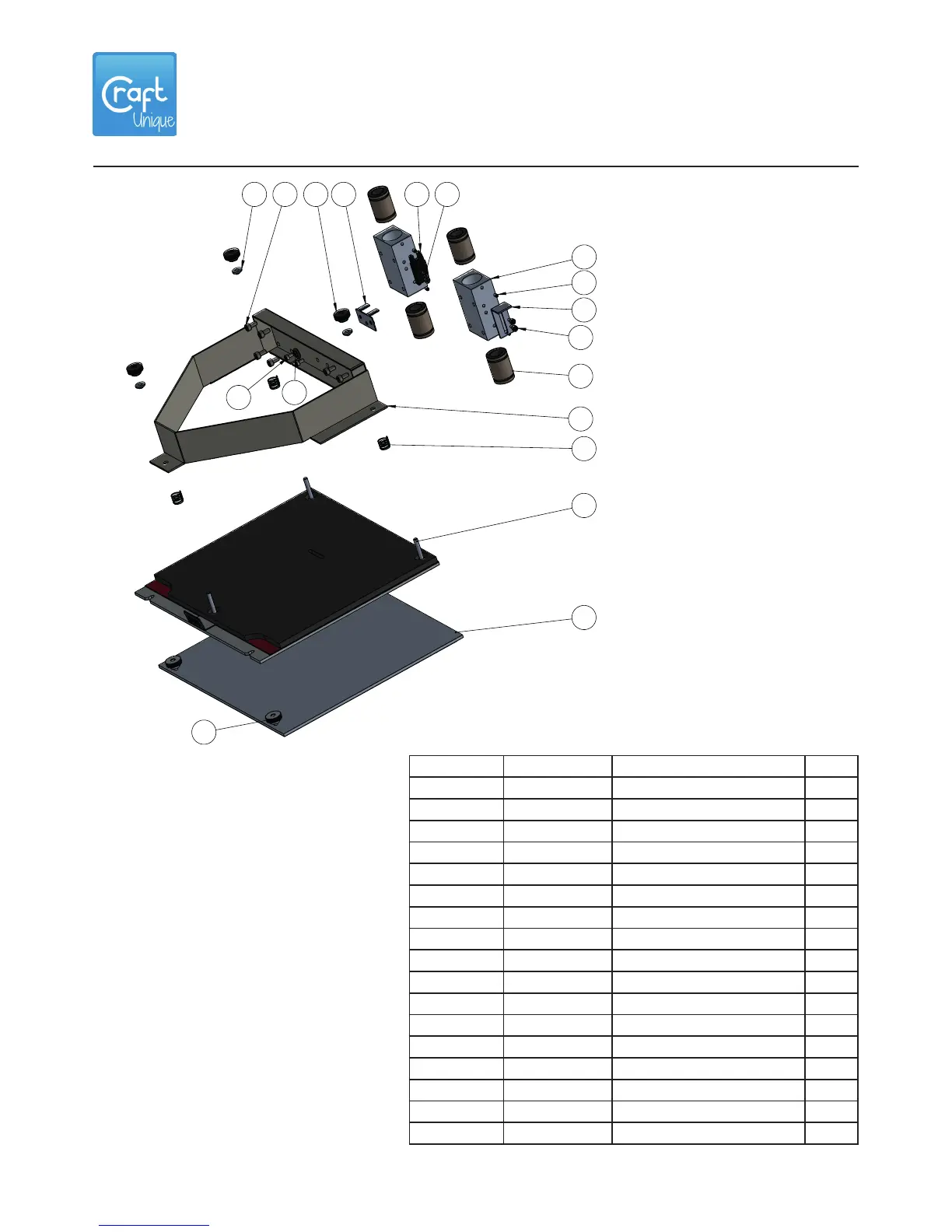

3.5 Exploded view - Z console
13
16
12
15
1
5
6
9
8
7
10 1131714 4
6
2
ITEM NO. ORDER NUMBER PART NAME QTY.
1 sp.001.013 Z console 1
2 bm.000.020 Rubber gasket 1
3 ma.001.020 Z nut holder 1
4 sc.002.016 Screw DIN912 M4L8 8
5 bm.001.002 Linear bearing LM12UU 4
6 sc.002.012 Screw DIN912 M3L6 4
7 ma.001.003 Block Z 2
8 sc.002.004 Screw DIN913 M3L4 4
9 sp.001.012 Z horse 1
10 bm.000.011 Energy chain 7.7 end 2 1
11 sc.002.018 Screw DIN7991 M3L6 2
12 pr.001.004 Base bed assembly 1
13 pr.001.037 Build plate assembly 1
14 bm.000.028 Spring washer 3
15 bm.000.029 Bed Spring 3
16 bm.000.026 Knurled nut white 2
17 bm.000.027 Knurled nut black 3
