CraftUnique CraftBot Plus - Page 12

Version V1.0
Page: 12 / 32
Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.

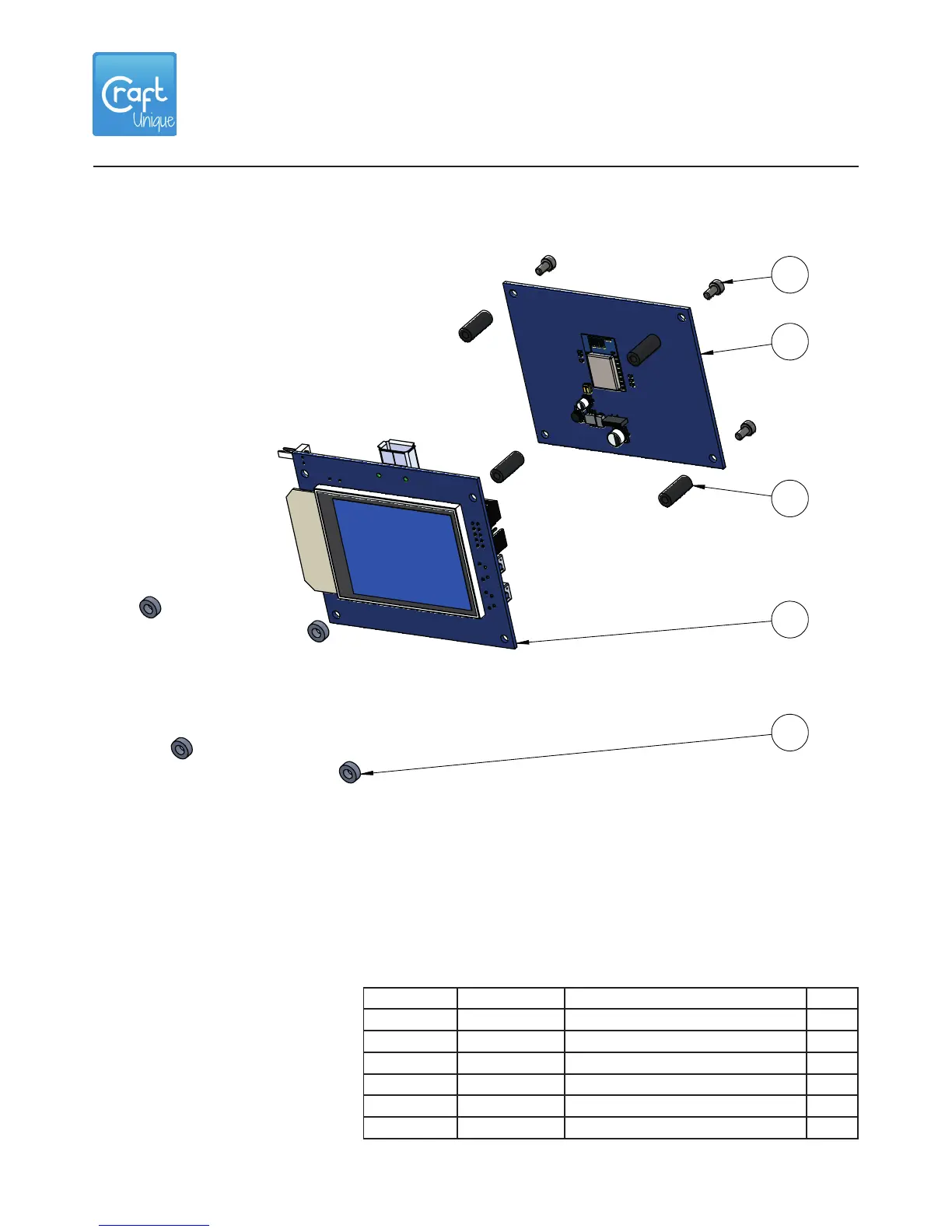

3.6 Exploded view - HMI assembly
5
4
3
2
1
ITEM NO. ORDER NUMBER PART NAME QTY.
1 bm.000.030 LCD washer 4
2 el.000.004 HMI v2.0 with LCD 1
3 bm.000.031 LCD spacer 15mm 4
4 el.000.010 WiFi board v1.0 *only for CB2 1
4 be.000.004 HMI cover *only for CBP 1
5 sc.002.012 Screw DIN912 M3L6 4
