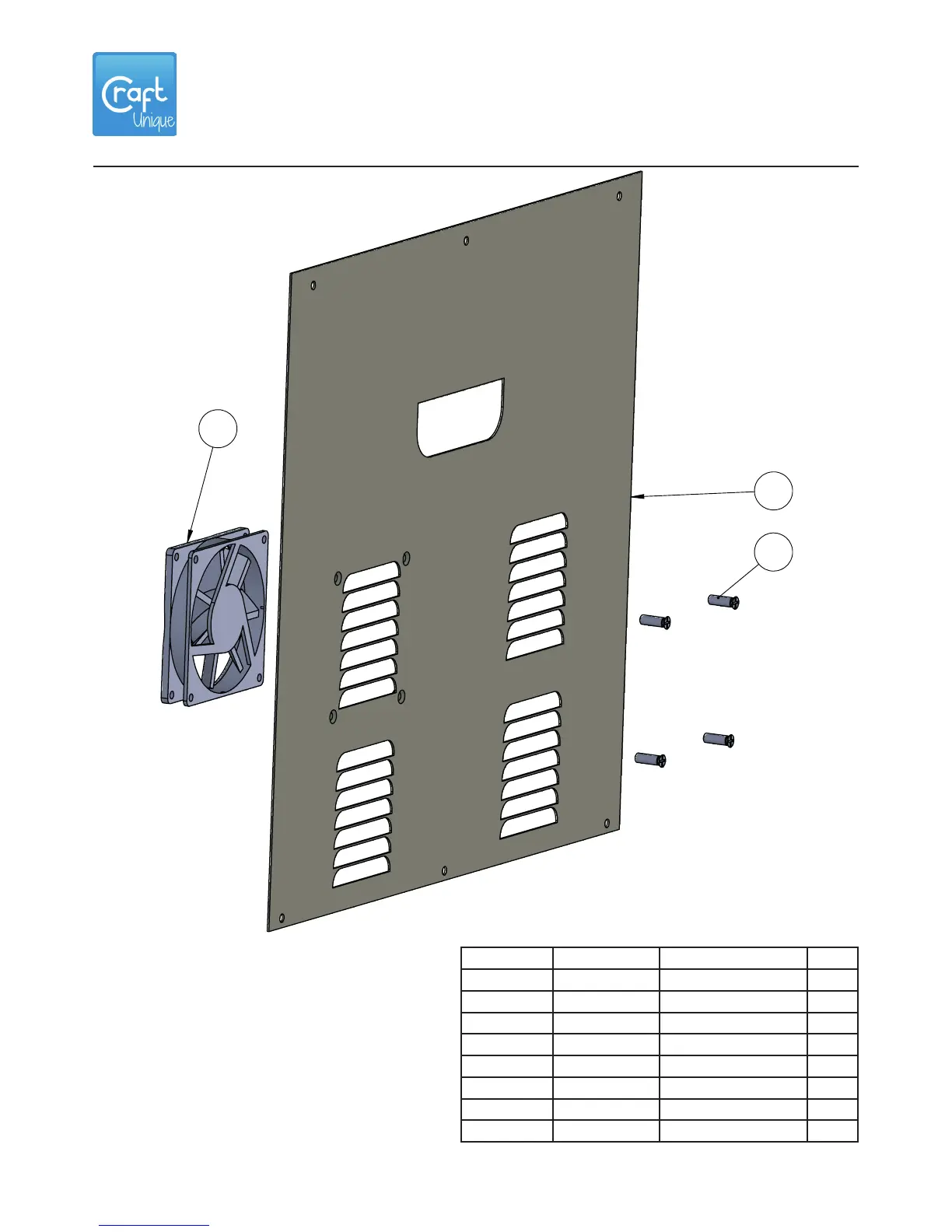

3.7 Exploded view - Back assembly
3
1
2
ITEM NO. ORDER NUMBER PART NAME QTY.
1 sp.001.014 Frame back blue 1
1 sp.001.015 Frame back green 1
1 sp.001.016 Frame back grey 1
1 sp.001.017 Frame back orange 1
1 sp.001.018 Frame back red 1
1 sp.001.019 Frame back white 1
2 be.000.015 Fan 80x80x10 1
3 sc.002.021 Fan screw 5L15 4
