Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.

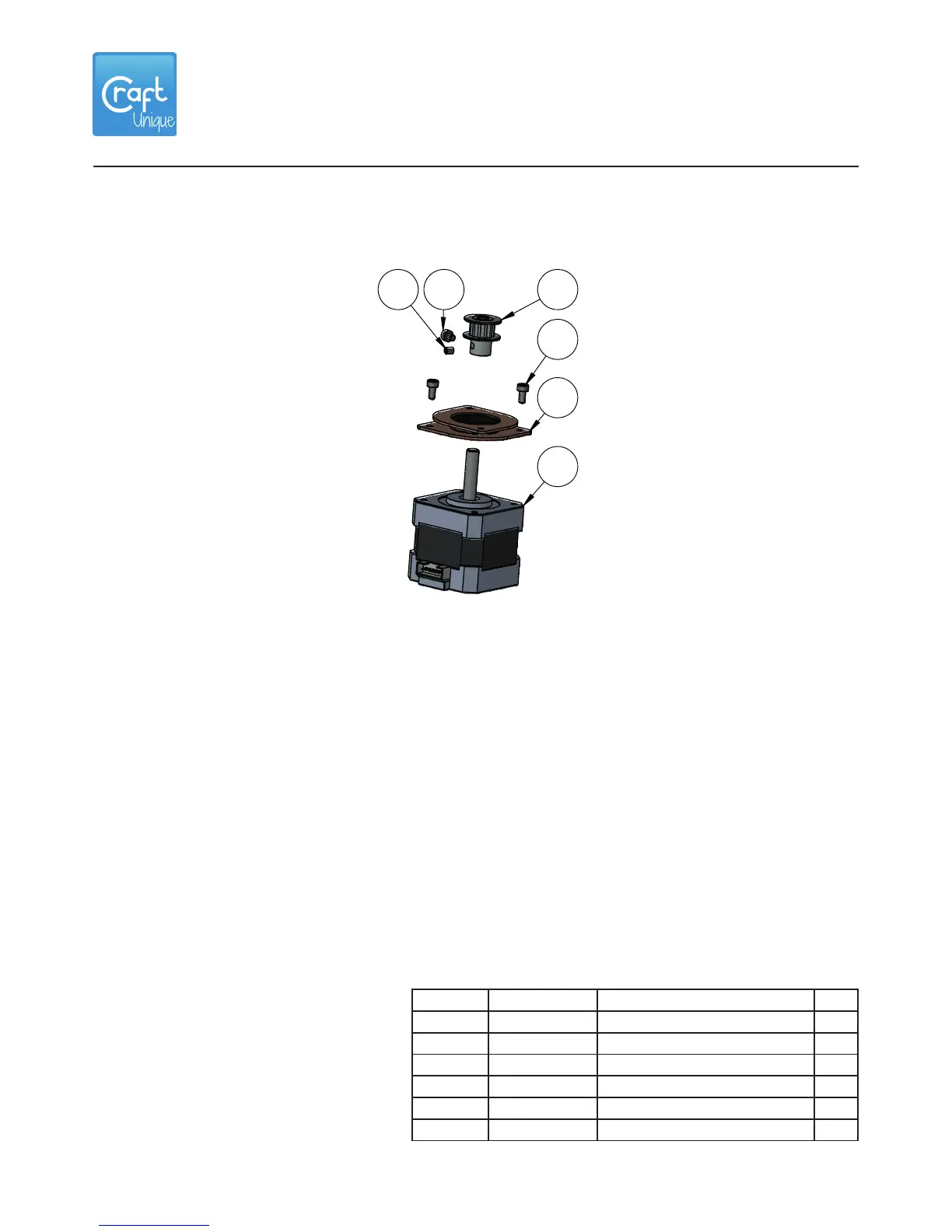

3.8 Exploded view - Motor with damper
ITEM NO. ORDER NUMBER PART NAME QTY.
1 be.000.008 Stepper motor 17hs3001-26b 1
2 bm.000.023 NEMA 17 vibration damper 1
3 sc.002.012 Screw DIN912 M3L6 2
4 bm.000.024 Pulley GT2 6mm 20 teeth 1
5 sc.002.004 Screw DIN913 M3L4 1
6 sc.002.011 Screw DIN912 M3L4 1
465
3
2
1
