CONNECTIONS
Video input jack ( Yellow )
Audio left channel input jack ( White )
Audio right channel input jack ( Red )
Connected to the TV
AV OUT COAXIAL
OFF ON
DC IN 12V
POWER
AV OUT COAXIAL
OFF ON
DC IN 12V
POWER
To audio input of the
external amplifier with built-in decoder

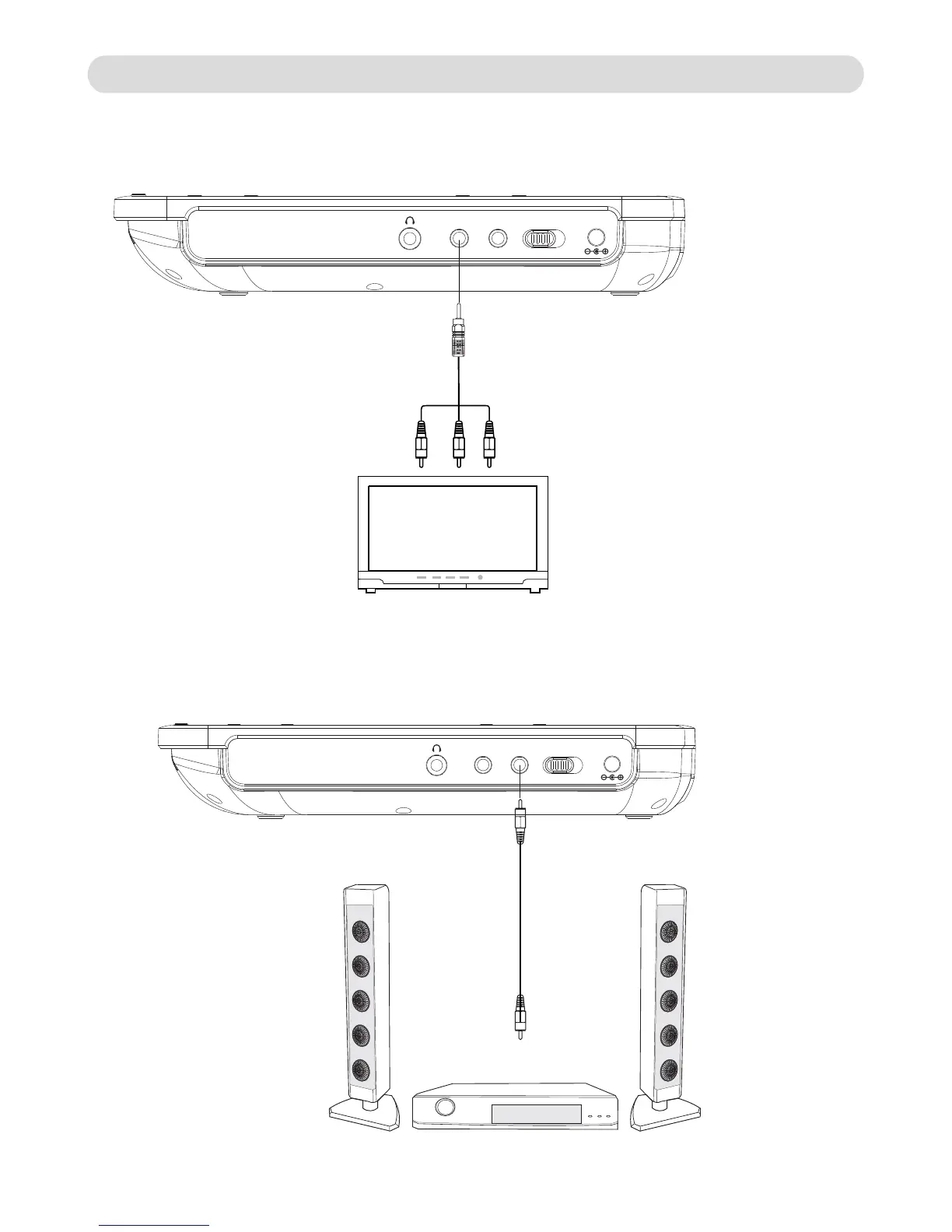

1. Connecting to a TV with supplied AV connection cable
2. Connecting to an Audio Amplifier (with built-in digital audio decoder) with Coxial Connection Cable
(Connection cable not included)
