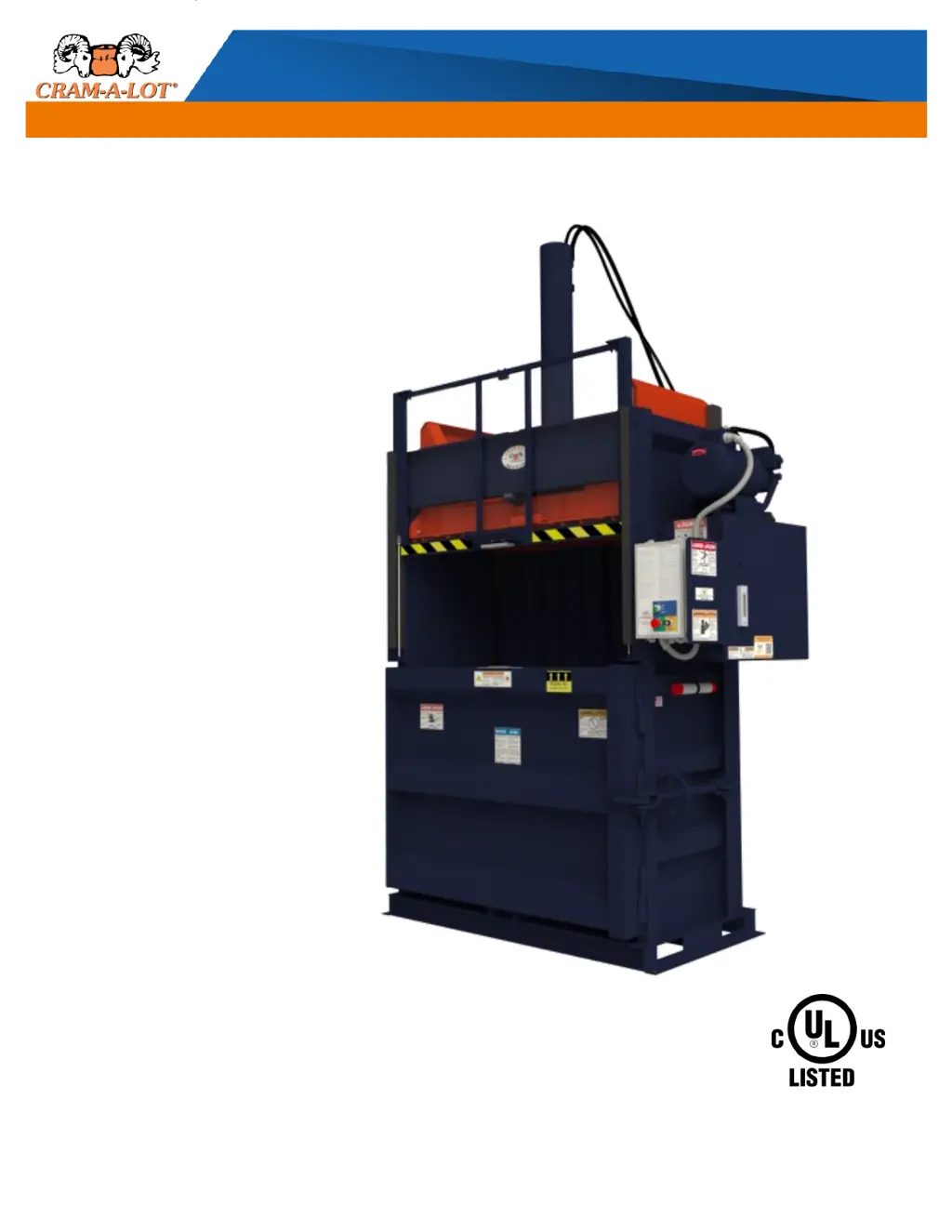

“Equipping The World For A Better Environment”
MODELS
VB-42-B
VB-42-B-LP
VB-60-B
VB-60-B-LP
VB-60-T
VB-60-H
VB-60-X
VB-60-H-DC
VB-60-H-LP
VB-72-B
VB-72-B-LP
VB-72-T
VB-72-H
VB-72-X
VB-72-H-DC
VB-72-H-LP
Operation, Maintenance, and Installation
OWNER / OPERATOR INSTRUCTION MANUAL

Table of Contents

Questions and Answers

  • K
    Kathy FosterAug 18, 2025
    What to do if the motor won’t start when I turn the key on my CRAM-A-LOT VB-42-B Lawn and Garden Equipment?
    • J
      johnsonseanAug 18, 2025
      If the motor of your CRAM-A-LOT Lawn and Garden Equipment won’t start when you turn the key, take these steps: * Make sure the emergency stop switch is not engaged. * If the baler is in “Auto” or “Manual Down” mode, make sure the loading door is fully closed. * If the baler is in “Manual Up” mode, make sure the loading door is open. * Make sure the electromagnetic door latch and striker surfaces are clean. * Make sure the disconnect or circuit breaker is turned on.
  • V
    Victoria WilliamsAug 21, 2025
    What to do if the motor runs but the presshead won’t move on my CRAM-A-LOT VB-42-B Lawn and Garden Equipment?
    • A
      Ashley WhiteAug 21, 2025
      If the motor runs but the presshead won’t move on your CRAM-A-LOT Lawn and Garden Equipment, consider the following: * In “Manual Up” mode, you need to pull out the emergency stop switch to raise the presshead. * Ensure that the loading door is fully closed. * Ensure that the electromagnetic door latch and striker surfaces are clean. * Ensure that the chamber door is fully closed.
  • J
    jerrybrownAug 25, 2025
    Why does my CRAM-A-LOT VB-42-B Lawn and Garden Equipment stop when I release the key?
    • T
      Timothy HernandezAug 26, 2025
      If your CRAM-A-LOT Lawn and Garden Equipment stops when you release the key, it could be due to the upper magnetic interlock switch failing “OPEN”. To address this: * Close and latch the loading door. * Check the upper magnetic interlock switch for proper alignment to the magnet on the loading door. * Check the upper magnetic interlock switch. * Replace the upper magnetic interlock switch if necessary.
  • T
    tcarterAug 27, 2025
    What to do if the loading door won’t stay closed on my CRAM-A-LOT VB-42-B?
    • R
      Robert PittmanAug 27, 2025
      If the loading door won’t stay closed on your CRAM-A-LOT Lawn and Garden Equipment, check these: * Make sure the key is turned to the “On” position. * Make sure the emergency stop switch is not engaged. * Make sure the mode selector switch is in the “Auto” or “Man Down” positions. * Make sure the electromagnetic door latch and striker surfaces are clean. * Make sure the chamber door is fully closed.
  • V
    vanessa67Aug 31, 2025
    What to do if the ram retracts to the top, the Baler continues to run on my CRAM-A-LOT VB-42-B Lawn and Garden Equipment?
    • M
      matthewsmithAug 31, 2025
      If, when the ram retracts to the top, the baler continues to run on your CRAM-A-LOT Lawn and Garden Equipment, it could be caused by the upper magnetic interlock switch failing “CLOSED”. Check the upper magnetic interlock switch mounting bracket for proper operation and check the upper magnetic interlock switch. Replace the upper magnetic interlock switch if needed.
  • C
    christophermyersSep 3, 2025
    How to open the loading door on my CRAM-A-LOT Lawn and Garden Equipment to load material?
    • R
      Rita WebsterSep 3, 2025
      To open the loading door on your CRAM-A-LOT Lawn and Garden Equipment so material can be loaded, turn the key to the “Off” position. The loading door should raise automatically.
  • C
    chapmanjillSep 7, 2025
    Why won’t the bale eject from my CRAM-A-LOT VB-42-B Lawn and Garden Equipment?
    • H
      Heather GrossSep 7, 2025
      If the bale won’t eject from your CRAM-A-LOT Lawn and Garden Equipment, make sure that the dump handle was engaged before the machine was operated in the “Manual Up” mode to dump the bale. Also, on newer balers, the paint on the inside of the bale chamber may prevent the bale from ejecting well. While ejecting the bale the motor may shut off. If this occurs, the baler cycle timer has timed out.
  • M
    Mr. Bruce HoffmanSep 12, 2025
    Why won’t the bale ties go through the slots in my CRAM-A-LOT VB-42-B Lawn and Garden Equipment?
    • J
      James AcevedoSep 12, 2025
      If the bale ties won’t go through the slots in the floor or presshead of your CRAM-A-LOT Lawn and Garden Equipment, make sure the chamber door is open. Also, ensure that the correct end of the bale tie is being guided through the slots. Before making the bale, ensure that a full sheet of cardboard has been laid on the chamber floor. Before the presshead was lowered, ensure that a full sheet of cardboard has been laid on top of the full bale.
  • N
    nwoodsNov 13, 2025
    Why won't my CRAM-A-LOT VB-42-B Lawn and Garden Equipment baler start?
    • E
      Eric Chapman MDNov 14, 2025
      The baler might not start due to several reasons: * The stop button may be in the “STOP” position. To resolve this, pull the STOP button out to the “RUN” position. * The electromagnetic lock may have failed “OPEN”. In that case, close and latch the loading door. Also, check the door position sensor for proper alignment to the magnet on the door strike plate, check the electromagnetic lock, and if needed, replace the electromagnetic lock. * The electromagnetic lock may have failed “CLOSED”. To fix this, cycle power to unlock the loading door. Also, close and latch the loading door, check the door position sensor for proper alignment to the magnet on the door strike plate, check the electromagnetic lock, and if needed, replace the electromagnetic lock. * The motor starter may have f...

Summary

Installation Guidelines

Required Floor Space

Specifies the necessary clear floor area for proper baler installation and operation.

Positioning

Details how to position the baler for safe operation and access.

Anchoring

Instructions for securing the baler to the mounting surface using anchor pads and bolts.

Electrical

Requirements for installing a disconnect switch and grounding the baler.

Hydraulic

Instruction to install the vented cap on the hydraulic tank before operation.

Baler Operation

Owner;Employer Responsibilities

Outlines the owner/employer's duties for safe and compliant baler operation and maintenance.

Operator;Employee Responsibilities

Details the duties of operators and employees working with the baler.

Safety Orientation

Provides essential safety guidelines and precautions for operating the baler.

Safety Terminology

Explains the meaning of hazard-related terms used on safety decals.

Baler Controls Overview

Identifies the key operational controls on the baler.

Emergency & Standard Operation

Instructions for emergency procedures and standard baler operation steps.

Making and Tying a Bale

Detailed instructions on how to form and tie a bale, including front feed option.

Ejecting a Bale

Procedure for safely removing a completed bale from the chamber.

Bale Tie Configuration

Table showing recommended tie configurations for different materials and models.

Maintenance

Lock Out; Tag Out Procedures

Steps for safely isolating the baler from energy sources before maintenance.

Chocking the Presshead

How to secure the presshead with wooden beams for safe entry into the chamber.

Preventive Maintenance Schedule

Daily, monthly, and annual maintenance tasks to ensure optimal baler performance.

Safety Decals

Information on safety decals, their importance, and how to order replacements.

Checking and Adding Oil

Procedure for checking and topping up the hydraulic oil level.

Troubleshooting

Motor Start and Movement Issues

Diagnoses for why the baler motor fails to start or presshead doesn't move.

Door Operation Problems

Solutions for loading door not opening, not staying closed, or not opening automatically.

Bale Tying and Ejection Issues

Addresses problems with bale ties, and bales failing to eject.

Error Code Troubleshooting

Troubleshooting guide referencing error codes for common baler problems.

Technical Specifications

Parts Diagrams

Chassis & Loading Door Parts

Illustrates and lists parts for the baler's chassis and loading door.

Bale Ties

Lists part numbers and applications for various bale tie products.

Power Unit Parts

Details the components of the baler's power unit with part numbers.

Hydraulic Tank & Controls Parts

Identifies parts related to the hydraulic tank and operator controls.

Control Panel Parts

Lists components and part numbers for the baler's electrical control panel.

Electrical Schematic

Hydraulic Schematics

Warranty Information

Warranty Terms and Coverage

Defines the warranty period, coverage, and limitations for the baler.

Warranty Exclusions and Returns

Lists components excluded from warranty and the process for returning parts.

Claim Submission and Policy Details

Instructions for submitting claims, governing law, and other policy details.

Warranty Procedures

Requesting a Warranty Repair

Step-by-step guide on how to initiate a warranty repair process.
