Cramer TOURINO PICK-UP - 3 Design and Function; Brief Description; Overview


Tourno pick-up
Original Operation Manual English   - 6 -
3 Design and function
3.1 Brief description
The TOURNO pick-up is a machine used as carrier for Cramer mounting tools. For better road adhesion and traction, the machine
has a front-wheel drive and a double-axle drive for the four wheel drive version, respectively. The machine has an articulated
steering with a steering stool. The speed is controlled progressively by a hydrostatic drive. Various Cramer mounting tools may be
connected to the front and back of the TOURNO pick-up for different applications.

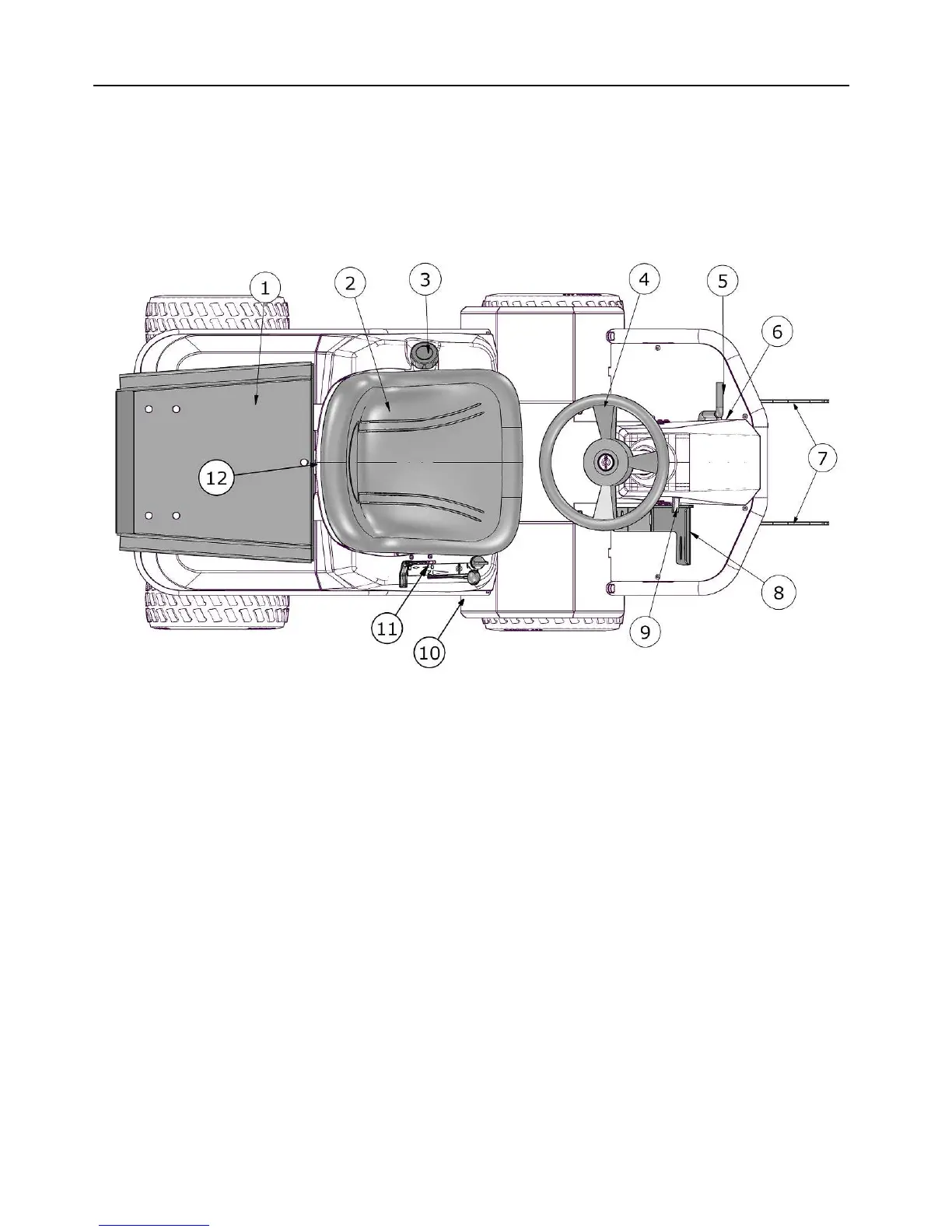

3.2 Overview
1
Tipping trough
2
Driver's seat
3
Tank/Tank lid
4
Steering wheel
5
Pedal for lifting and lowering the front device
6
Pedal locking
7
Receipt carrier for front devices
8
Accelerator pedal
9
Pedal unlocking
10
Motor-gear connection
11
Operating panel
12
Tipping trough twist lock
