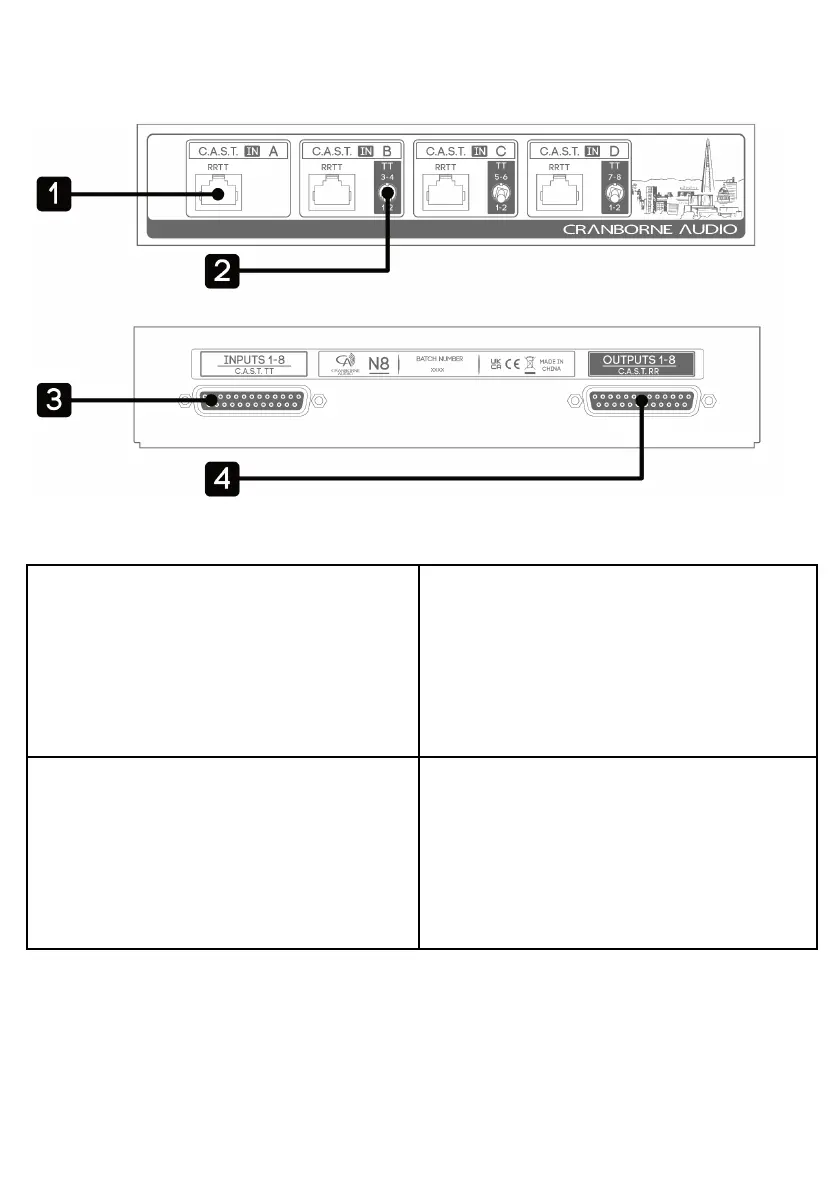

[1] C.A.S.T. In Connector:
4 C.A.S.T. Inputs labelled A, B, C, and D for
connecting C.A.S.T.-enabled devices to N8 for
remote I/O distribution.
Each C.A.S.T. Input carries 4-channels (2 inputs,
2 outputs) of balanced, analogue audio.
[3] DB25 Inputs Connector:
Connects the Outputs of an audio interface,
mixer, or similar to the inputs of N8.
Inputs 1-8 send audio from N8 and to the
outputs of C.A.S.T.-enabled devices connected
to N8.
DB25 connector. Tascam Wiring.
[2] C.A.S.T. Transmit Selector Switch:
Determines what audio source is sent out of
N8 and to the outputs of the connected
C.A.S.T. devices.
Each C.A.S.T. In connector can be assigned to
send out Channels 1&2 of the DB25 Input
Connector, or its own discrete input paths
(3&4, 5&6, or 7&8).
[4] DB25 Output Connector:
Connects the Outputs of N8 to the Inputs of a
recording device, mixer, or audio interface.
Outputs 1-8 receives audio signals from the
Inputs of C.A.S.T.-enabled devices connected to
N8.
DB25 connector. Tascam Wiring.
Page 2 ©2022 Cranborne Audio Ltd
