SIGNAL OVERVIEW

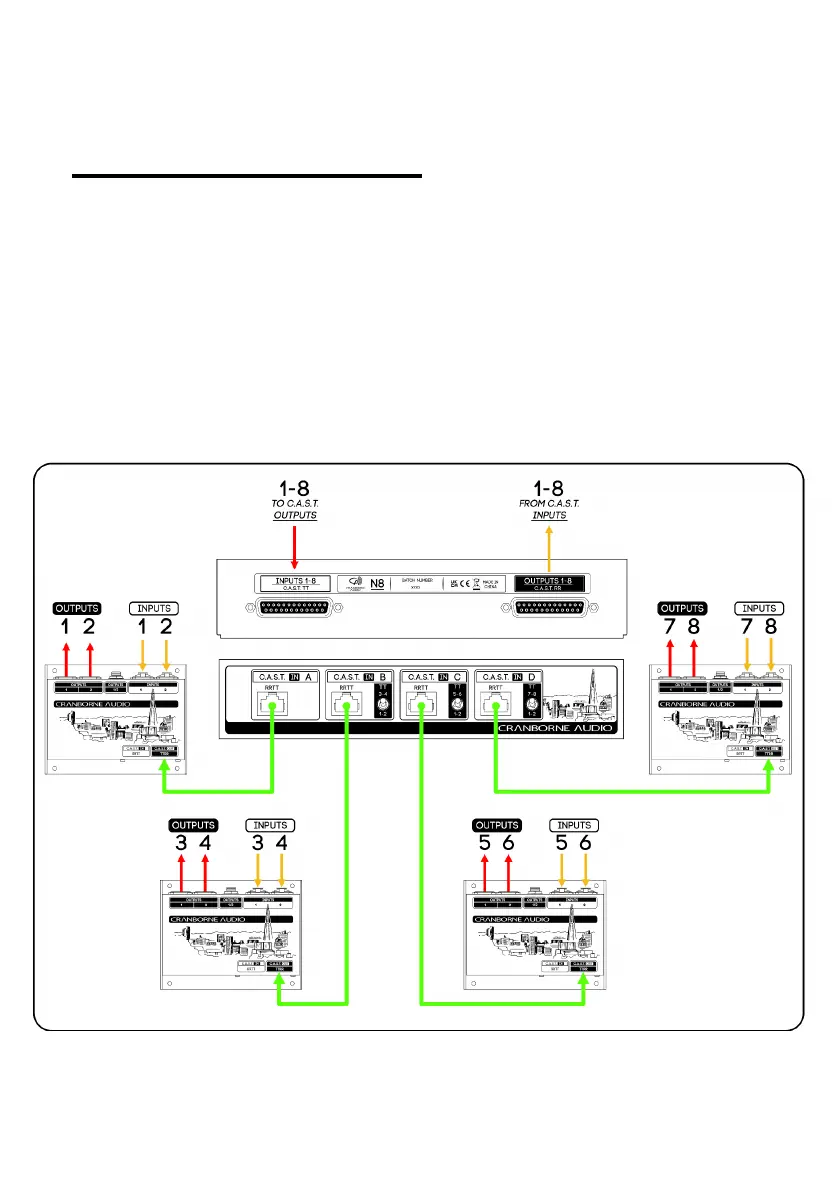

Below is the full signal overview of N8 detailing how the C.A.S.T. Input ports [1] are

routed to and from its DB25 Input and Output connectors [3, 4].

N8’s 4 C.A.S.T. ports correspond with the DB25 connectors on its rear panel in groups

of 2:

C.A.S.T. In A = Channels 1/2 on the Input [3] and Output [4] DB25’s

C.A.S.T. In B = Channels 3/4 on the Input and Output DB25’s

C.A.S.T. In C = Channels 5/6 on the Input and Output DB25’s

C.A.S.T. In D = Channels 7/8 on the Input and Output DB25’s
