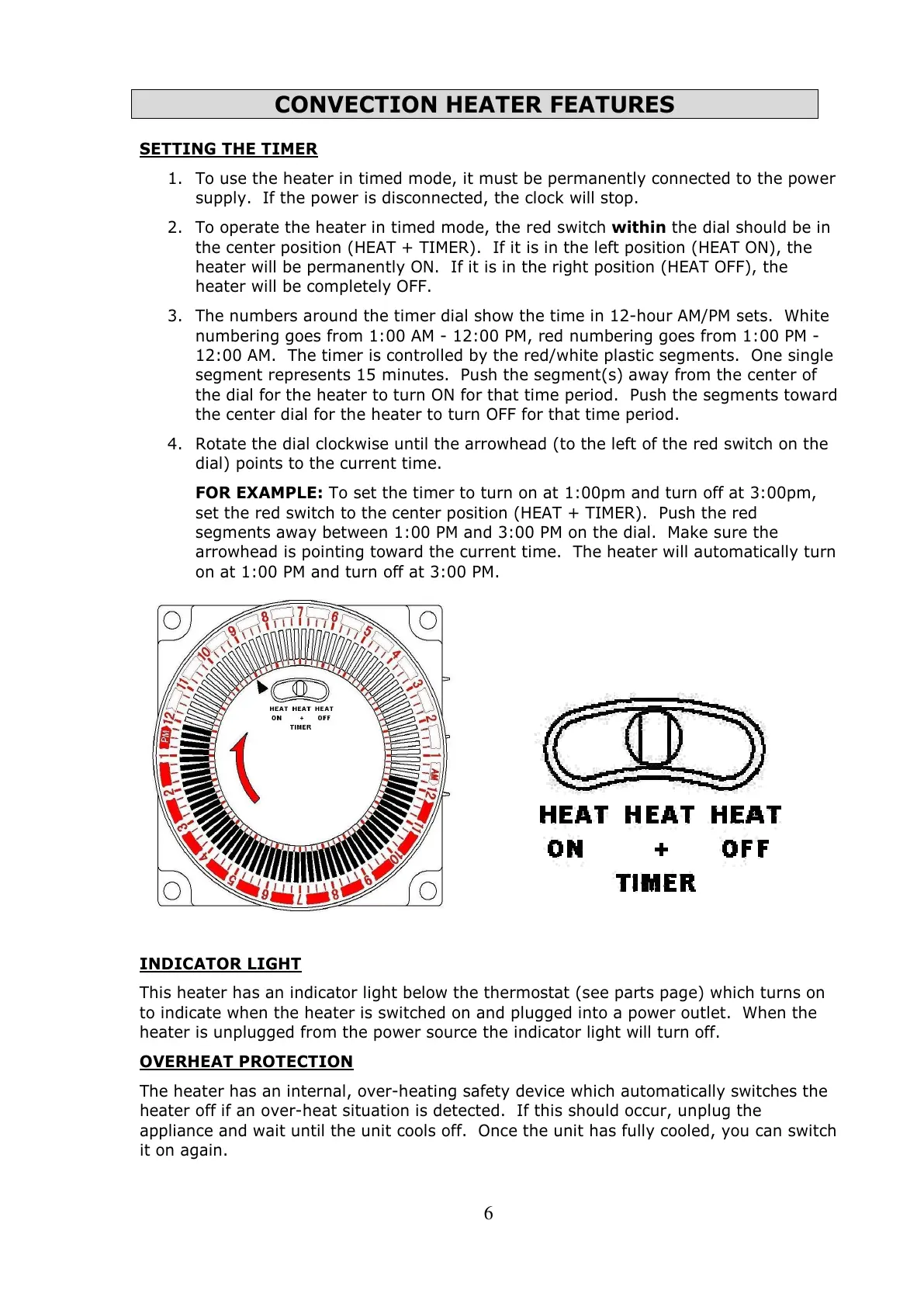

SETTING THE TIMER
1. To use the heater in timed mode, it must be permanently connected to the power
supply. If the power is disconnected, the clock will stop.
2. To operate the heater in timed mode, the red switch within the dial should be in
the center position (HEAT + TIMER). If it is in the left position (HEAT ON), the
heater will be permanently ON. If it is in the right position (HEAT OFF), the
heater will be completely OFF.
3. The numbers around the timer dial show the time in 12-hour AM/PM sets. White
numbering goes from 1:00 AM - 12:00 PM, red numbering goes from 1:00 PM -
12:00 AM. The timer is controlled by the red/white plastic segments. One single
segment represents 15 minutes. Push the segment(s) away from the center of
the dial for the heater to turn ON for that time period. Push the segments toward
the center dial for the heater to turn OFF for that time period.
4. Rotate the dial clockwise until the arrowhead (to the left of the red switch on the
dial) points to the current time.
FOR EXAMPLE: To set the timer to turn on at 1:00pm and turn off at 3:00pm,
set the red switch to the center position (HEAT + TIMER). Push the red
segments away between 1:00 PM and 3:00 PM on the dial. Make sure the
arrowhead is pointing toward the current time. The heater will automatically turn
on at 1:00 PM and turn off at 3:00 PM.
INDICATOR LIGHT
This heater has an indicator light below the thermostat (see parts page) which turns on
to indicate when the heater is switched on and plugged into a power outlet. When the
heater is unplugged from the power source the indicator light will turn off.
OVERHEAT PROTECTION
The heater has an internal, over-heating safety device which automatically switches the
heater off if an over-heat situation is detected. If this should occur, unplug the
appliance and wait until the unit cools off. Once the unit has fully cooled, you can switch
it on again.
