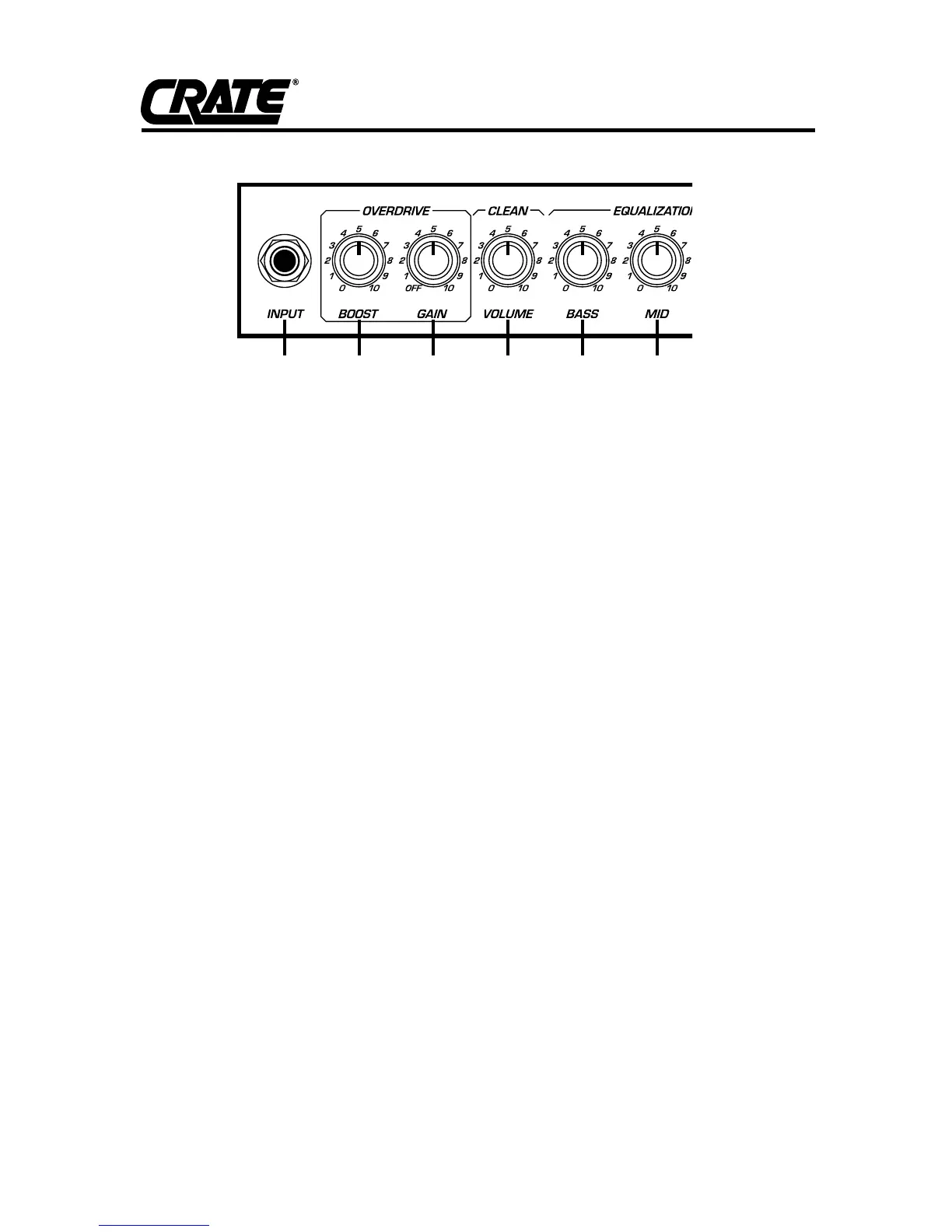

1: INPUT: Connect your guitar here using a shielded instrument cable.
2: OVERDRIVE BOOST: Increases the output volume and adds “crunch” to your sound.
This control is only active when the Overdrive Gain control (#3) is turned on. For more
information please see the “Getting Your Sound” section to the right.
3: OVERDRIVE GAIN: Controls the Overdrive Boost knob (#2) and adds distortion to
your sound. This control is only active when turned on. For more information please see
the “Getting Your Sound” section to the right.
4: CLEAN VOLUME: Controls the overall output level of the amp. For more information
please see the “Getting Your Sound” section to the right.
5: BASS: Adjusts the low frequency output level: to the left reduces the low frequency
output; to the right increases it.
6: MID: Adjusts the midrange frequency output level: to the left reduces the midrange
frequency output, to the right increases it.
7: TREBLE: Adjusts the high frequency output level: to the left reduces the high fre-
quency output; to the right increases it.
8: INSERT: Connect an external effects device via this jack. Use a stereo 1/4” male Y-
cord: ring = send, tip = return, sleeve = ground. Send goes to the effect’s input; return
comes from its output. (See the illustration on the panel to the right for more information.)
9: HEADPHONE: Plug a pair of stereo headphones here for private listening. When this
jack is used the internal speakers and the external speaker jacks are disconnected.
10: POWER LED: This LED lights when the amplifier is powered up.
11: POWER SWITCH: Turns the amplifier on (in the UP position) and off (in the down
position).
12: AC LINE IN: (Rear panel, not shown) This heavy-duty, grounded, three-wire power
cord is to be plugged into ONLY a safely-wired, grounded 120 volt, 60 cycle AC power
outlet. DO NOT attempt to defeat the ground connection of this cable! If your EL10G was
purchased outside of the United States, see the unit’s rear panel for its power rating and
follow the above guidelines.
EL-10G Electra Series Guitar Amplifier
