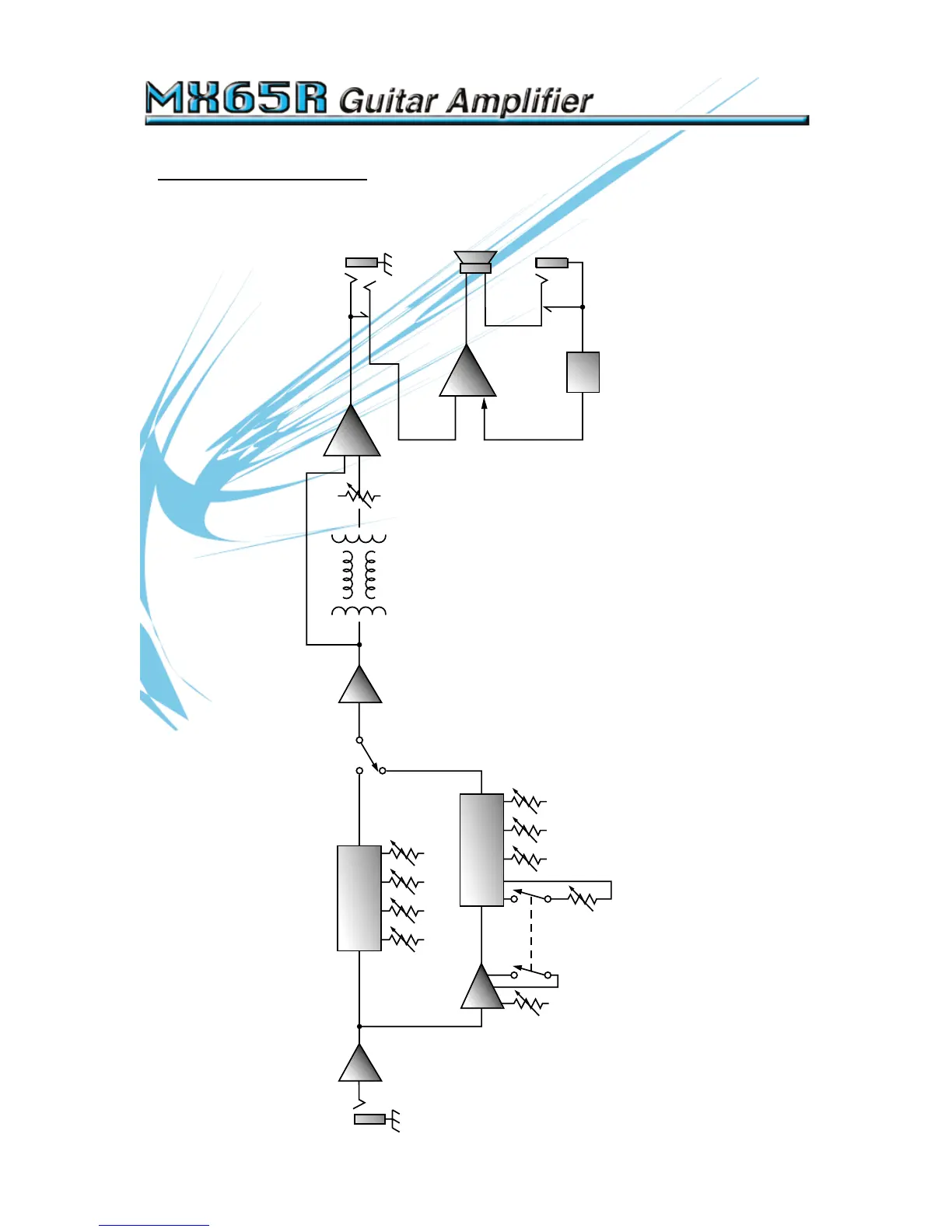

System Block Diagram:
7
INPUT
CHANNEL
SELECT
FLEX WAVE
STAGE
LOWLEVEL MID HIGH
LOW
SHAPE
HIGH LEVEL
REVERB LEVEL
GAIN
GAIN
SELECT
SHAPE
ACTIVE
BUFFER
MIX
AMP
INSERT
CLEAN
CHANNEL
OVERDRIVE
CHANNEL
DAMPING
CIRCUIT
POWER
AMP
EXT.
SPEAKER
SPEAKE
R
EQ

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Crate MX65R and is the answer not in the manual?

Crate MX65R Specifications

Power IconPower
output power rating65 watts RMS
power requirements120 VAC, 60Hz, 90VA
Gain IconGain
overdrive channel gain 188dB
overdrive channel gain 2110dB
clean channel gain58dB
Tone Control Range IconTone Control Range
low overdrive11dB @ 80Hz
clean low22dB @ 80Hz
mid clean14dB @ 600Hz
Size and Weight IconSize and Weight
height17.5 inches
width20 inches
depth11 inches
