Using the Footswitch for More Presets:
The Crate three-button footswitch supplied with the RFX120 allows access to an
additional DSP preset for each channel of the amplifier. When the footswitch is connect-
ed to the amplifier as shown below, the “original” DSP presets are active for each chan-
nel when the #3 footswitch LED is illuminated. These are referred to as “DSP Bank ‘A’.”
When the #3 button is switched and the LED is out, a second DSP preset may be stored
and recalled for each channel - “DSP Bank ‘B’.”
NOTE: DSP Bank “B” presets are only accessible when the footswitch is connected to the amplifier. When
the footswitch is not connected, only DSP Bank “A” is accessable.

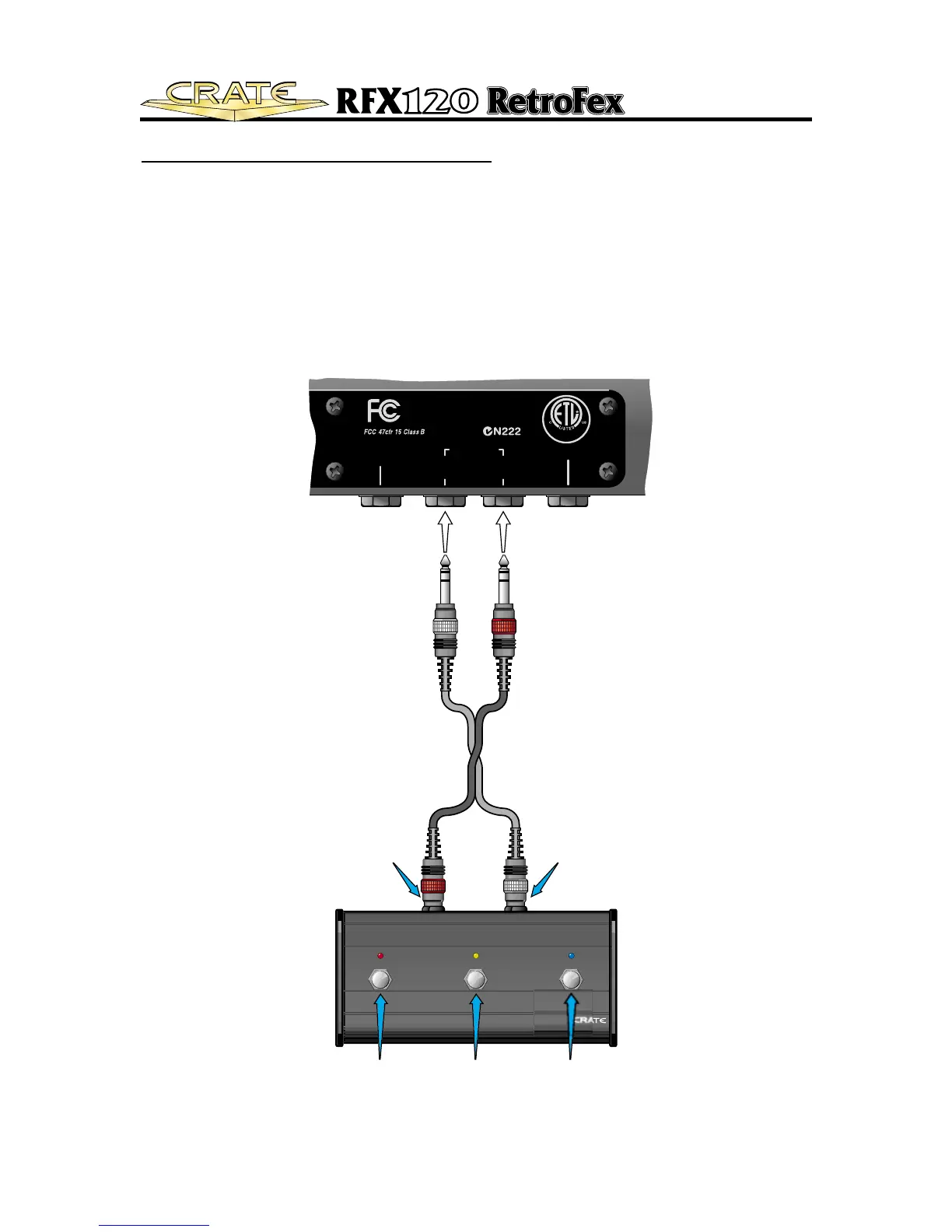

#3031613
EXTENSION
SPEAKER
INSERT
FOOTSWITCH
DSP
BANK A
BANK B
CHANNEL
CLEAN
SOLO/RHYTHM
For home or office use
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: this device may not cause harmful
interference, and this device must accept any harmful interference
received, including interference that may cause undesired operation.
"LEFT" jack "RIGHT" jack
S
wi
tc
h
#
1
:
LED
o
n =
SO
L
O
C
H
.
LED off = RHTYHM CH.
Only when Switch #2
is activated (LED lit)!
S
wi
tc
h
#
2
:
LED
o
n =
SO
L
O
/
RHYTHM CH.
LED off = CLEAN
CH.
S
wi
tc
h
#3:
LED
o
n = D
SP
BANK "A"
LED off = DSP
BANK "B"
3
2
1
Guitar Amplifier
