Clock output
This output transmits a 20mS 5V pulse on every 1/8th of a bar
This output responds to incoming MIDI clock signals and is used to synchronize (aka
slave) other modules to a master MIDI keyboard or sequencer.
Status LED
The LED serves 2 purposes: to indicate power to NiftyCASE and incoming MIDI.
The LED will stay lit when NiftyCASE is powered and in standby, and will briefly blink
when MIDI is received.
NiftyTIP: When MIDI clock is received the status LED will conveniently blink on every
1/8th of a bar and can therefore be used as a visual metronome.

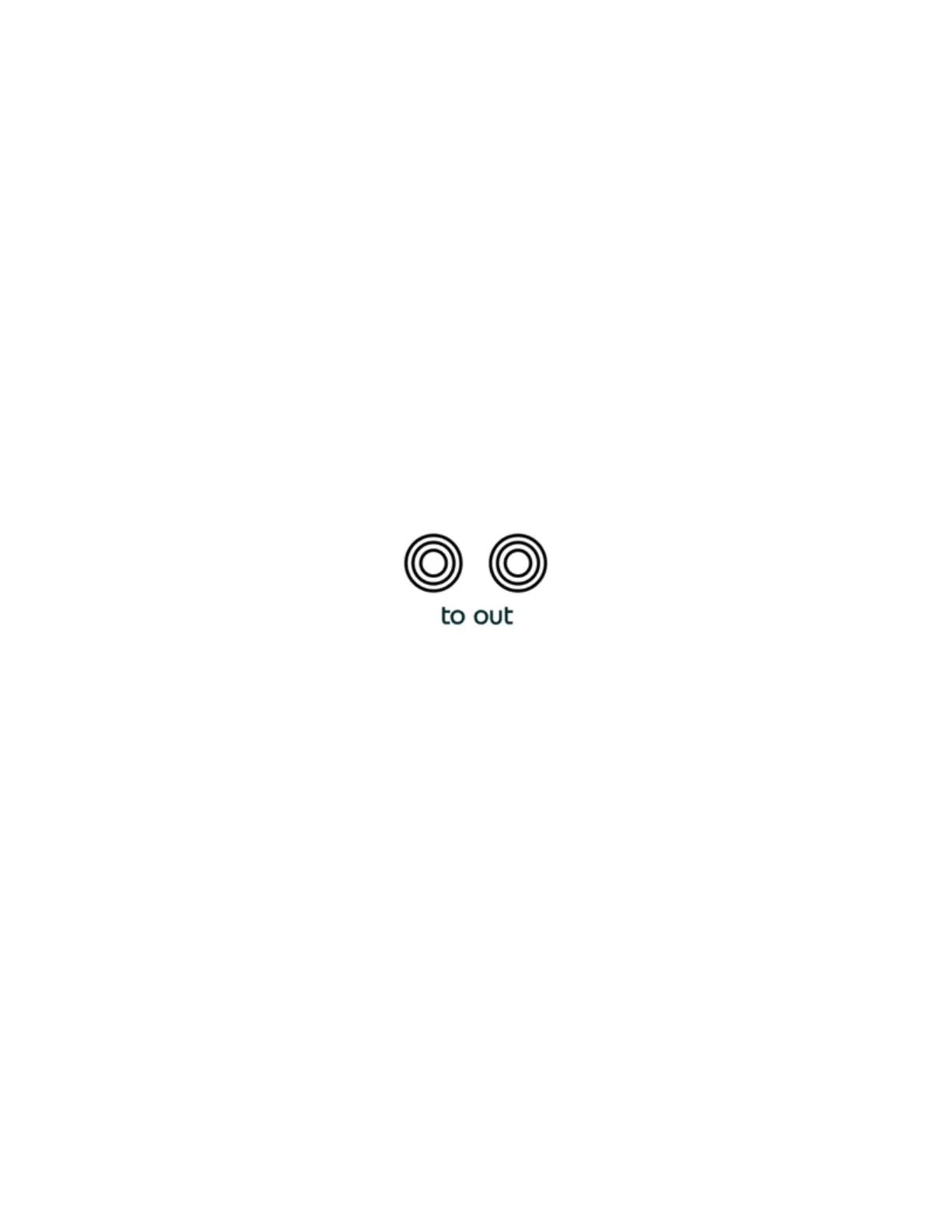

“to out” input jacks
These audio input jacks are summed (aka mixed) and sent out of the “audio out” ¼” jack
at the rear of NiftyCASE. Both jacks are 3.5mm (⅛”) mono (aka TS).
NiftyTIP: All of the top jacks are 3.5mm (⅛”) mono (aka TS).
