#1 Screws
S Back
RB1
Barrel faces down
so that short side of
hinge drops down
below edge of
Right Box.
It is SAFE to use
an Electric Screw Driver
to install hinges.

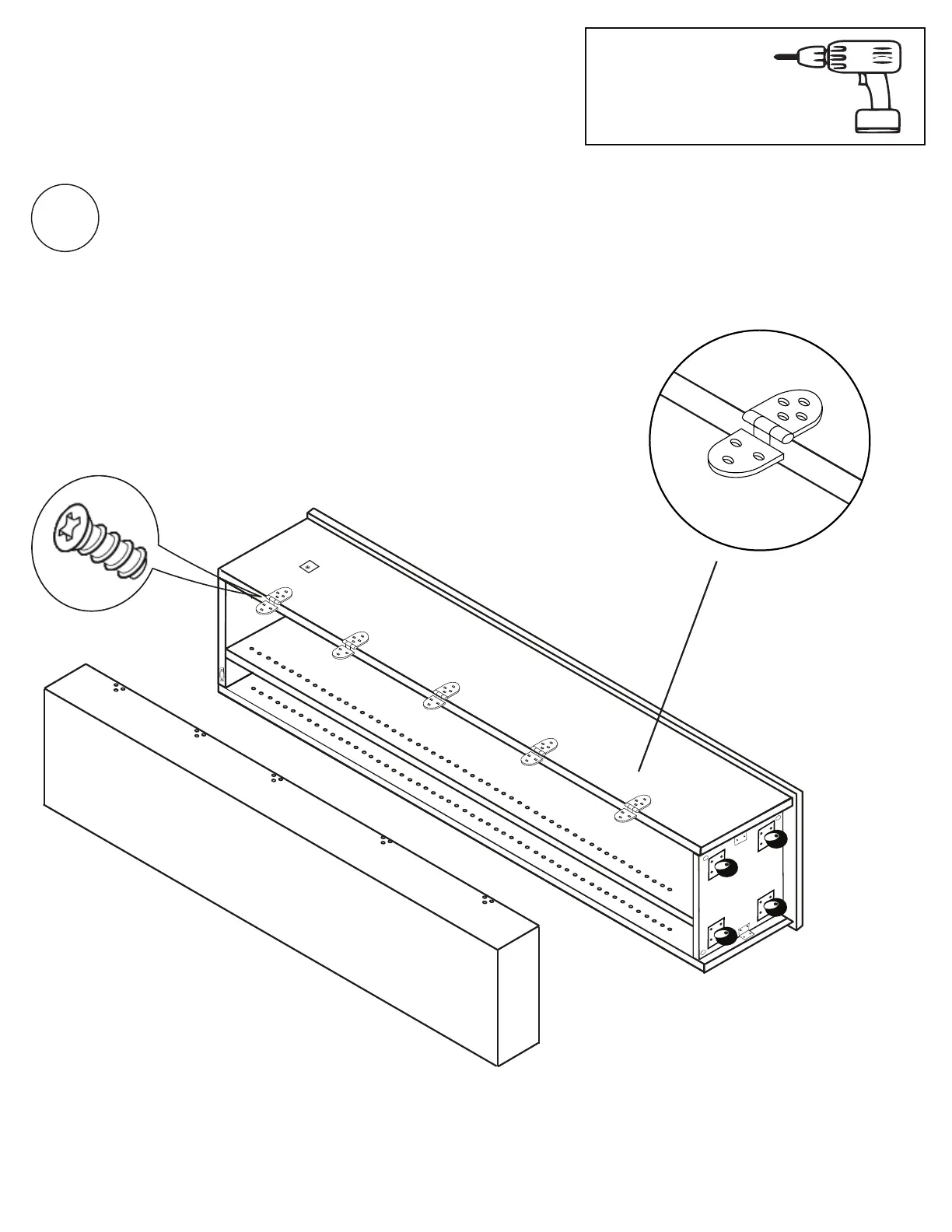

Turn Right Box onto RB2 and install
(5) Offset Hinges to RB1 using
(20) #1: 13 mm Euro Screws.
With two people, attach Right Swing Door
to RB1 using (15) #1: Screws 13mm Euro Screws.
