Creative Cedar Designs 3512 - Ladder Assembly

16STEP
:
a3
WD36
(4) WD36 Ladder Step 1× 6×23 29/32
ITEMS NEEDED
HARDWARE NEEDED
WD37
(1) WD34 Ladder Rail(Left) 5/4×4×54 3/8
(1) WD35 Ladder Rail(Right) 5/4×4×54 3/8
(1) WD37 Ladder Block 1× 4×20
WD34
WD35
a3
WD07
WD34
a3
WD35
k4
c1
N
o
t
e
!
I
m
p
o
r
t
a
n
t
Note orientation

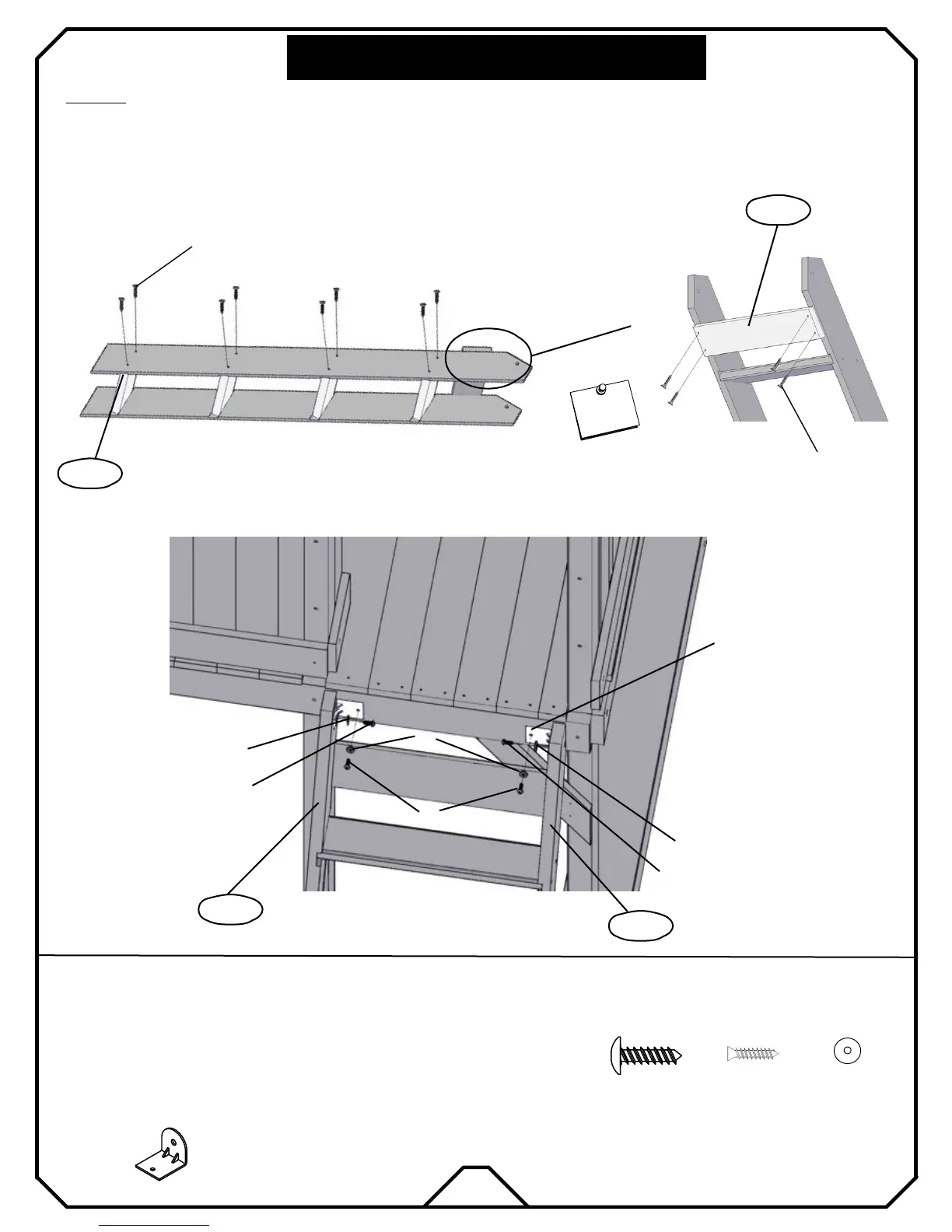

LADDER ASSEMBLY
* Create the ladder by attaching four WD36 in between WD34 and WD35. They should fit comfortably inside the notches
* Attach WD37 to ladder with wood screws "a3".
and securing with wood screws "a3".
* Attach ladder to the playset's left wall using both L bracket "M003" and wood screws "c1".
