Creative Cedar Designs 3512 - Roof Assembly

HARDWARE NEEDED
(80)
ITEMS NEEDED
(2) WD43 Sunburst Frame-A 1×4×45
(2) WD44 Sunburst Frame-B 1×4×25
(1) WB52 Roof Beam-B 1× 2×19 7/8
(1) WB53 Roof Beam-C 1× 2×40 15/16
(12) WF54 Roof Board-A 1× 6×36 5/16
(2) WF55 Roof Board-B 1× 6×36 5/16
a3
a3
WF55
a3
a3
WF55
WF54
WF54
WD44
WD43
WB53
WB52
(1) WH51 Roof Beam-A 2× 2×31
2 1/2"

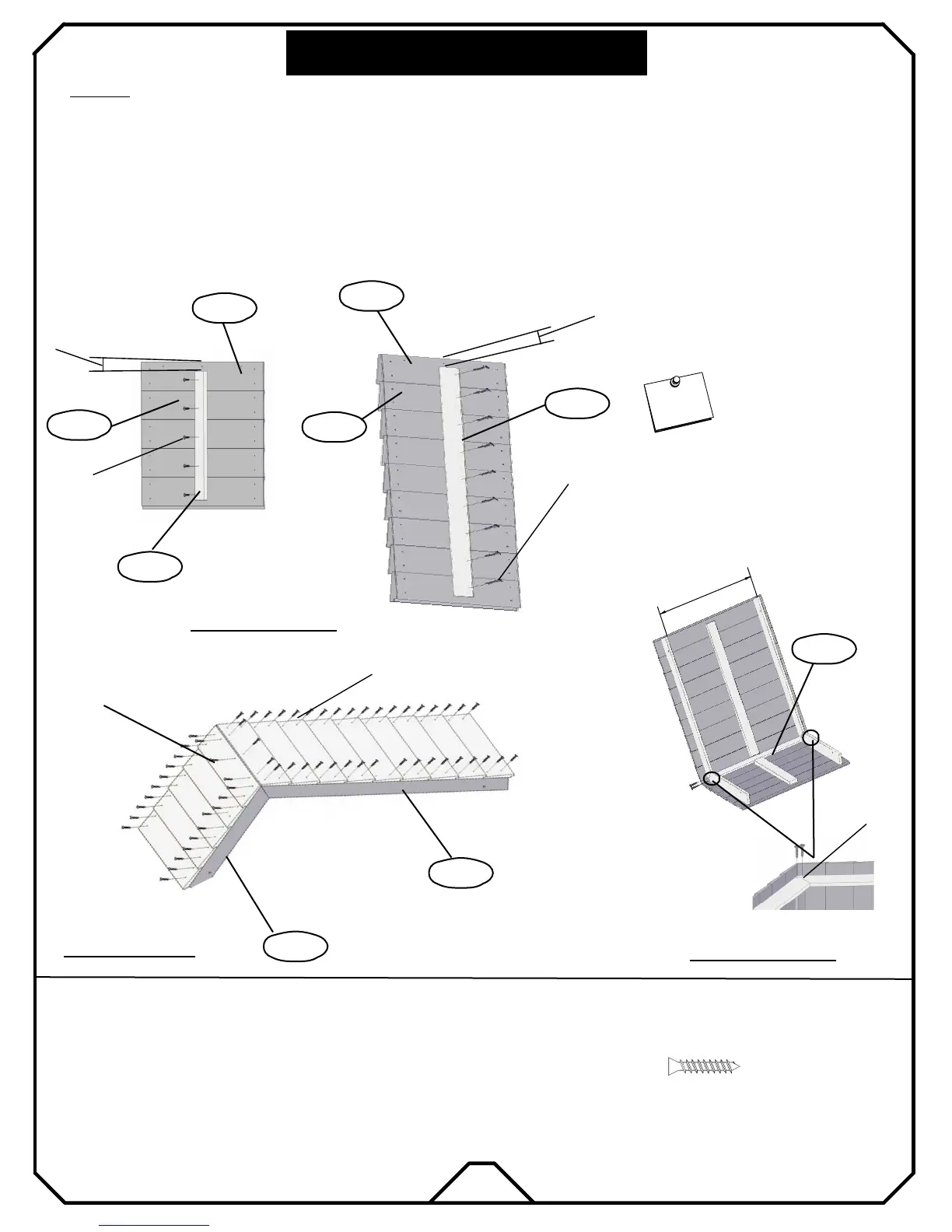

ROOF ASSEMBLY
* Create the short side of the roof by laying out one WF55 and four WF54, and securing WB52 to it with wood screws "a3".
* Attach both WD44 onto the short side of the roof, one on either end with wood screws "a3".
N
o
t
e
!
I
m
p
o
r
t
a
n
t
Note orientation of WF55
* Create the long side of the roof by laying out one WF55 and eight WF54, and securing WB53 to it with wood screws "a3".
* Attach both WD43 onto the long side of the roof, one on either end with wood screws "a3".
* Create a peak using both the short and long side the roof, and attach WB51 on the underside of the roof with wood
screws "a3".
* Make sure all slats are flush before
securing with wood screws.
a3
a3
underside of roof
top side of roof
17 STEP
:
WH51
2 1/2"
33
underside of roof
31 1/8''
