HARDWARE NEEDED
(46)
WD45
ITEMS NEEDED
(2) WD45 Sunburst Frame-C 1×4×45 7/16
(2) WC46 Roof Brace Fixed 1×3×11 7/16
(2) WD47 Sunburst DecoBoard 1× 4×4 7/8
(2) WC48 Sunburst Trim-A 1×2×18 10/32
(4) WC49 Sunburst Trim-B 1×3×9 27/32
(4) WC50 Sunburst Trim-C 1× 3×11 13/16
a4
a4
a4
a4
WC50
WC49
WC48
WD47
WC46

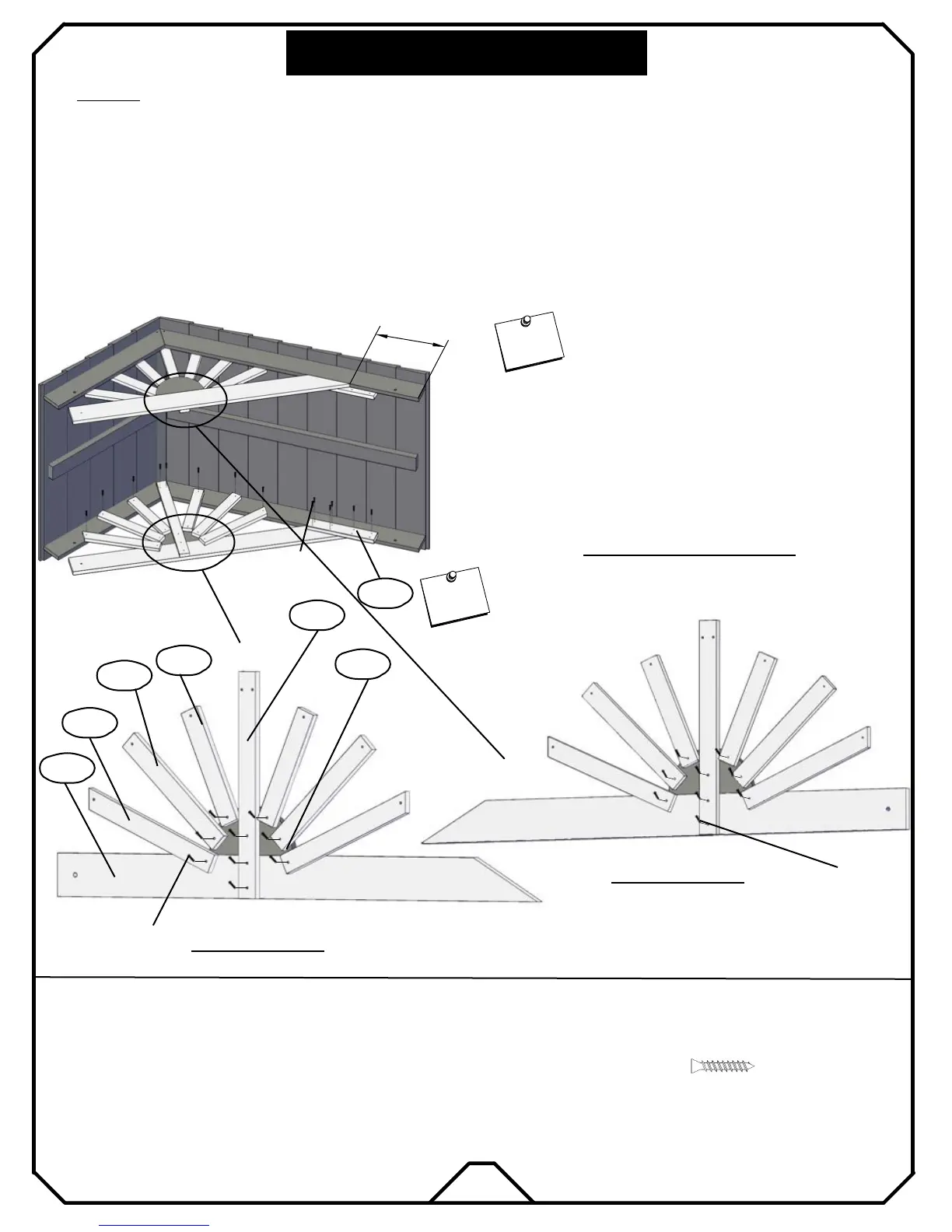

ROOF ASSEMBLY
* Create one sunburst for the front and one for the back, with wood screws "a4" (See diagrams below).
* Use only 6 "a4" wood screws.
Front Sunburst
Back Sunburst
N
o
t
e
!
I
m
p
o
r
t
a
n
t
N
o
t
e
!
I
m
p
o
r
t
a
n
t
* Sunbursts should be mirror images!
* Secure both sunburts to the roof from the inside with wood screws "a4".
* From the inside, secure one WC46 to longe side of each sunburst with wood screws "a4".
Interior views of sunburst
* Rays of sunburts should be spread out evenly.
18 STEP
:
34
WC60
(4) WC60 Sunburst Trim-D 1× 3×13
11 11/16''
