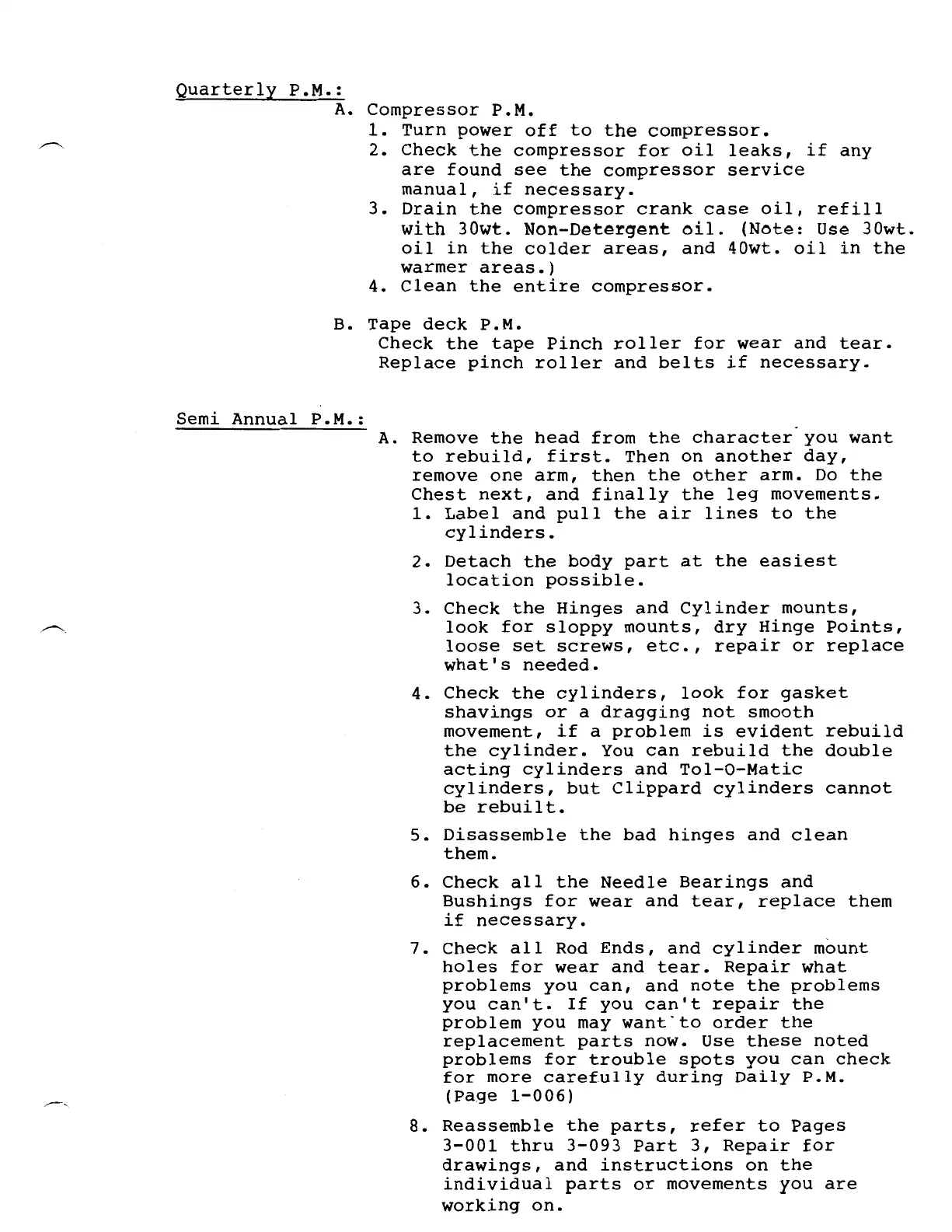

Quarterly P.M.:
A. Compressor P.M.
1. Turn power off to the compressor.
2. Check the compressor for oil leaks, if any
are found see the compressor service
manual, if necessary.
3. Drain the compressor crank case oil, refill
with 30wt. Non-Detergent oil. (Note: Use 30wt.
oil in the colder areas, and 40wt. oil in the
warmer areas.)
4. Clean the entire compressor.
B. Tape deck P.M.
Semi Annual P.M.:
Check the tape Pinch roller for wear and tear.
Replace pinch roller and belts if necessary.
A. Remove the head from the character you want
to rebuild, first. Then on another day,
remove one arm, then the other arm. Do the
Chest next, and finally the leg movements.
1. Label and pull the air lines to the
cylinders.
2. Detach the body part at the easiest
location possible.
3. Check the Hinges and Cylinder mounts,
look for sloppy mounts, dry Hinge Points,
loose set screws, etc., repair or replace
what's needed.
4. Check the cylinders, look for gasket
shavings or a dragging not smooth
movement, if a problem is evident rebuild
the cylinder. You can rebuild the double
acting cylinders and Tol-0-Matic
cylinders, but Clippard cylinders cannot
be rebuilt.
5. Disassemble the bad hinges and clean
them.
6. Check all the Needle Bearings and
Bushings for wear and tear, replace them
if necessary.
7. Check all Rod Ends, and cylinder mount
holes for wear and tear. Repair what
problems you can, and note the problems
you can't. If you can't repair the
problem you may want'to order the
replacement parts now. Use these noted
problems for trouble spots you can check
for more carefully during Daily P.M.
(Page 1-006)
8. Reassemble the parts, refer to Pages
3-001 thru 3-093 Part 3, Repair for
drawings, and instructions on the
individual parts or movements you are
working on.
