HARDWARE BAG CONTENTS
50568-700 PT Hardware
101 17001-104 Weld Nut 1/4"
24 12002-203 Flat Washer 8MM
114 12002-205 Flat Washer 1/4"
99 12017-205 Lock Washer 1/4"
72 17025-104 Screw #8 x 1-1/4"
142 17025-106 Screw #8 x 1-5/8"
36 17025-112 Screw #8 x 2"
8 17025-109 Screw #8 x 2-1/2"
8 17120-502 Self-Drill Screw #10 x 1-1/2"
8 17003-409 Hex Bolt 1/4 x 1"
28 17003-609 Hex Bolt 1/4 x 1-1/2"
15 17003-809 Hex Bolt 1/4 x 2"
ASSEMBLY HARDWARE:
More hardware is included than is required for assembly.
1/4 x 1" Hex Bolt
1/4 x 1" Truss Head Bolt
1/4 x 1-1/2" Hex Bolt
1/4 x 2-1/2" Hex Bolt
1/4 x 3-1/2" Hex Bolt
1/4 x 4-1/2" Hex Bolt
1/4 x 2" Hex Bolt
1/4 x 3" Hex Bolt
1/4 x 4" Hex Bolt

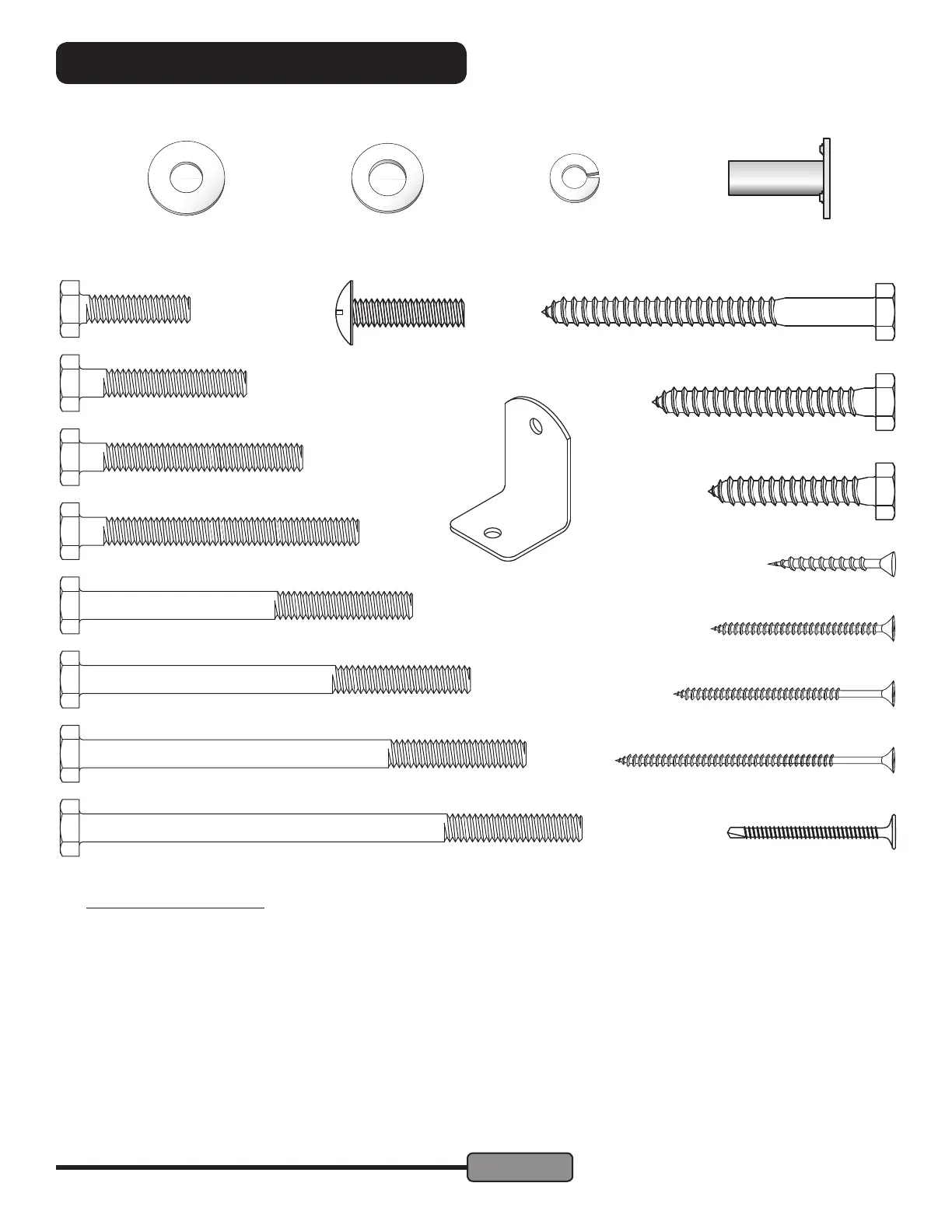

Illustrations are representative of hardware.
Slight variation of appearance may occur.
1/4" Flat Washer 8mm Flat
Washer
#10 x 1-1/2" Self-Drill Screw
#8 x 1-1/4" Screw
#8 x 1-5/8" Screw
#8 x 2-1/2" Screw
#8 x 2" Screw
1/4 x 1-1/2" Lag Screw
1/4 x 2" Lag Screw
1/4 x 3" Lag Screw
1/4" Lock
Washer
Access. Bracket
(Not to Scale)
1/4" Weld
Nut
14 17003-1209 Hex Bolt 1/4 x 3"
18 17003-1409 Hex Bolt 1/4 x 3-1/2"
12 17003-1609 Hex Bolt 1/4 x 4"
4 17003-1809 Hex Bolt 1/4 x 4-1/2"
2 17119-409 Truss Head Bolt 1/4 x 1"
2 17036-601 Lag Screw 1/4 x 1-1/2"
29 17036-801 Lag Screw 1/4 x 2"
8 17036-1201 Lag Screw 1/4 x 3"
4 14161-400 Access Bracket, Green
