24 Connecting Your Player to a TV (Optional)
Connecting Your Player to a TV (Optional)
To view your player’s content on a larger screen, purchase the Zen Vision:M
Video Kit to connect your player to a TV.
1 In the main menu, select System → Photo/Video Settings → Video Out.
2 Select Auto (NTSC) or Auto (PAL). See the User’s Guide for your TV if you
are not sure about your TV’s display format.
3 Connect your player to a TV with the supplied video cable, as shown above.
DO NOT use a standard video cable. The USB synchronization adapter works
only with the proprietary Creative Video cable included with the Zen Vision:M
Video Kit.

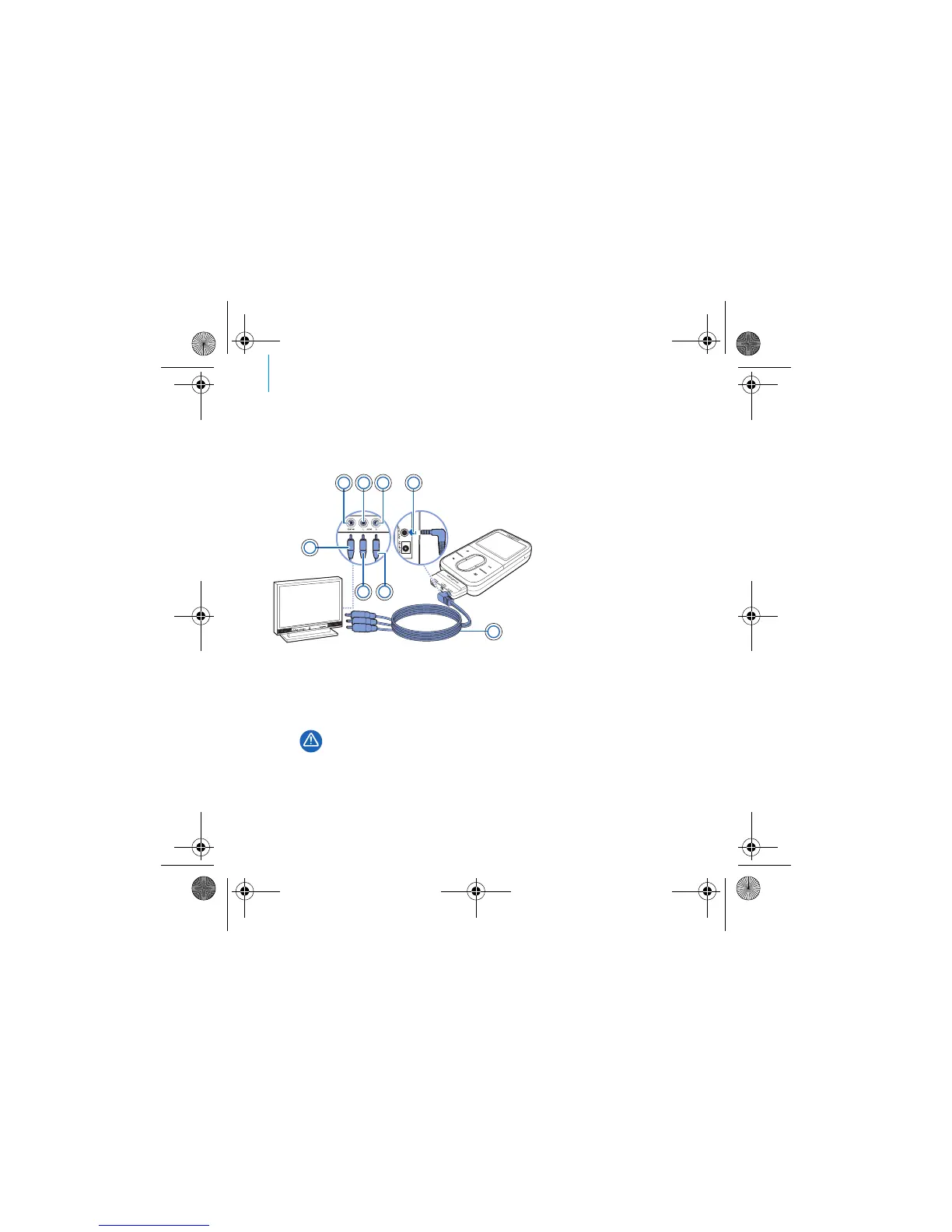

1 Video In jack -
Yellow
2 Audio In (Left) jack -
White
3 Audio In (Right) jack -
Red
4 A/V Out jack
5 Video cable
6 Red connector
7 White connector
8 Yellow connector
1
5
67
8
2 3 4
