Please read the instructions closely before rst using the product. There is also a quick-start guide
on the page 8 if you need a reminder of how to use the basic functions in the future.
The heater is designed for wall mounting using the wall bracket supplied. It should only be operated
when in the upright position as shown - see Fig.3 and Fig.4. All models are splash proof to IP24.
Before connecting the heater check that the supply voltage is the same as that stated on the heater.
‘A’
287
‘B’
Minimum
mounting
clearance
Minimum mounting clearance
138
IMPORTANT - The wall bracket
supplied with the heater must
be used and the heater must
be installed in the correct
orientation. The xings should
be used to secure the bracket to
the particular wall on which the
heater will be installed. The heater
should be positioned observing
the minimum clearances stated
around the heater - see Fig. 1, Fig.
3 and Fig. 4.
MODEL A B C D E
TPRIII050E 128mm 263mm 450mm 430mm 108mm
TPRIII075E 298mm 263mm 620mm 430mm 108mm
TPRIII100E 298mm 263mm 620mm 430mm 108mm
TPRIII125E 368mm 263mm 690mm 430mm 108mm
TPRIII150E 368mm 263mm 690mm 430mm 108mm
TPRIII200E 538mm 263mm 860mm 430mm 108mm
TPRIII300E 538mm 263mm 860mm 430mm 143mm
WARNING:
The wall bracket should be
handled with care as it may
have sharp edges that may
cause cuts and lacerations.
General Information

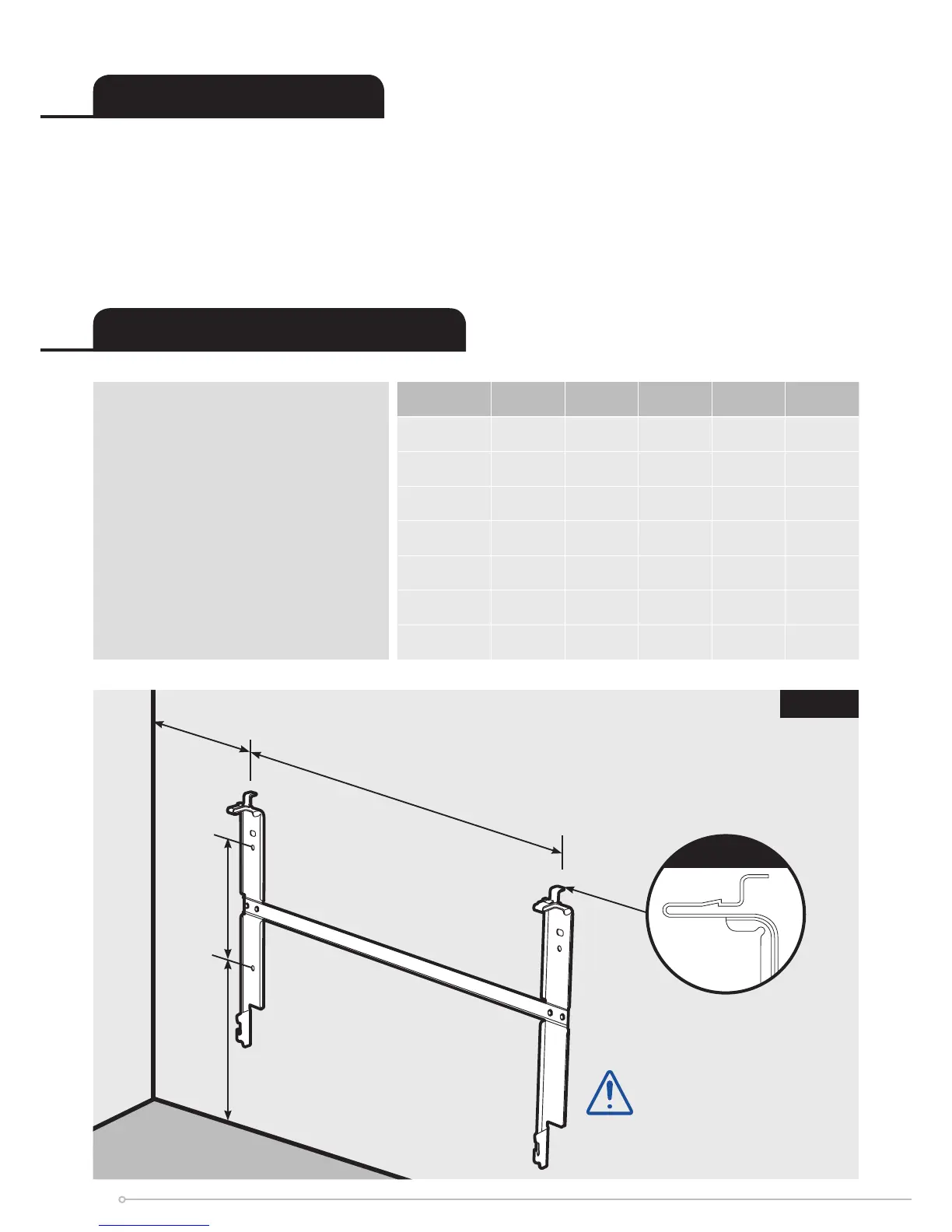

Wall Mounting Instructions
Fig. 1
6
