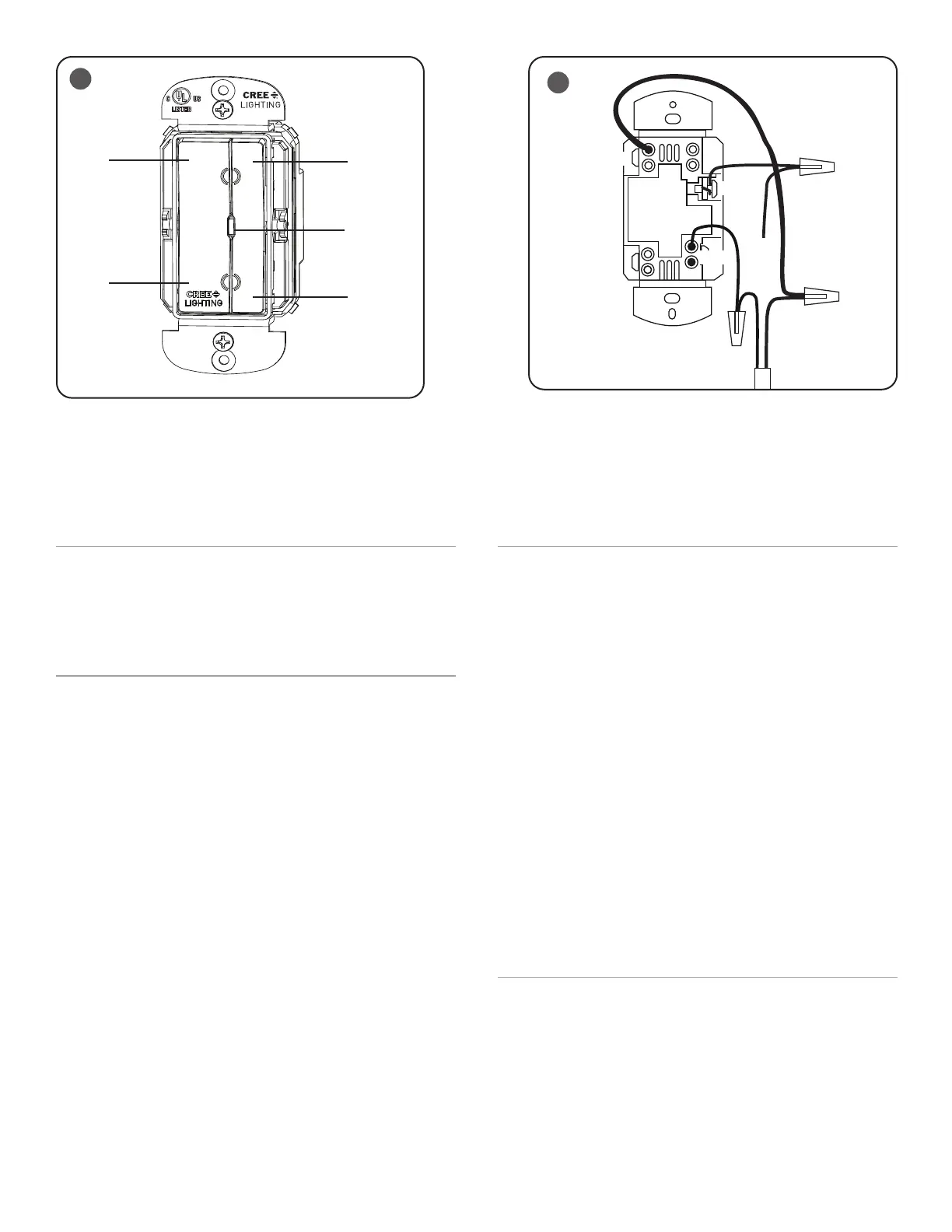

DIMMER FEATURES
• The In Wall Dimmer supports on, off, and dimming, and color
controls. Color is adjusted up by simultaneously pressing
the On and Dimming Up buttons. Color is adjusted down by
simultaneously pressing the Off and Dimming Down buttons. See
Figure 1.
INSTALLATION
NOTE: For ease of installation, Cree Lighting recommends using a deep
wall box.
STEP 1:
Disconnect power to circuit by turning circuit breaker OFF before
installation.
STEP 2:
If necessary remove existing wall plate and switch.
STEP 3:
Strip existing wires ½". If two wires will be connected to the same
terminal on the Cree device, both wires must be the same gauge (12AWG
or 14AWG).
STEP 4:
Wire the LINE (black), NEUTRAL (white), and GND (green or bare) supply
wires to the corresponding pigtail leads on the device, as shown in
Figure 2.
STEP 5:
Switch the circuit breaker ON.
STEP 6:
Press and hold on the ON button . The blue LED should blink
continuously. If the blue LED does not respond with the blink sequence,
please follow the troubleshooting instructions.
DIMMER PAIRING INSTRUCTIONS
STEP 1:
Download the free App (Search for Cree Lighting).
STEP 2:
• Enable Bluetooth on your device.
• Pair the lights
• Follow step-by-step on-screen instructions to pair the lights.
STEP 3:
Pair the Dimmer to Lights
• Turn off and turn on the light .
• Press & hold on the ON button (approx. 5 sec) . The blue LED
should blink continuously. The dimmer sign will show on the APP,
Tap the dimmer sign. Enter a name. Tap “Assign Light” button and
add the light.
Guided Setup:
Follow step-by-step on-screen “How to Use“ instructions to configure
each button.
Reset Dimmer:
Open the APP, Tap the dimmer switch icon in the APP. Tap the setup sign
on the top right corner, Tap the Remove Device sign, Tap the Disconnect
and Wipe Data. Check the dimmer switch icon is not displayed in the
APP, means dimmer reset is finished.
CLEANING
Clean using a cloth dampened only with water and a little mild
detergent. Use of solvents or hydrocarbon-based cleaners may cause
permanent damage.
120-277VAC
60Hz XX
APPLIANCE
CONTROLS
18AWG Cu wire
Made
in China
TOP
CMACC-CMWD
5NW1
On
Dimming
Up
LED
Off
Dimming
Down
1
NEUTRAL
GND
LINE
SUPPLY
LEADS
2
