Cree GWH09QC-D3DNC2D - Outline Dimension Diagram; Indoor Unit

16
Technical Information
Service Manual

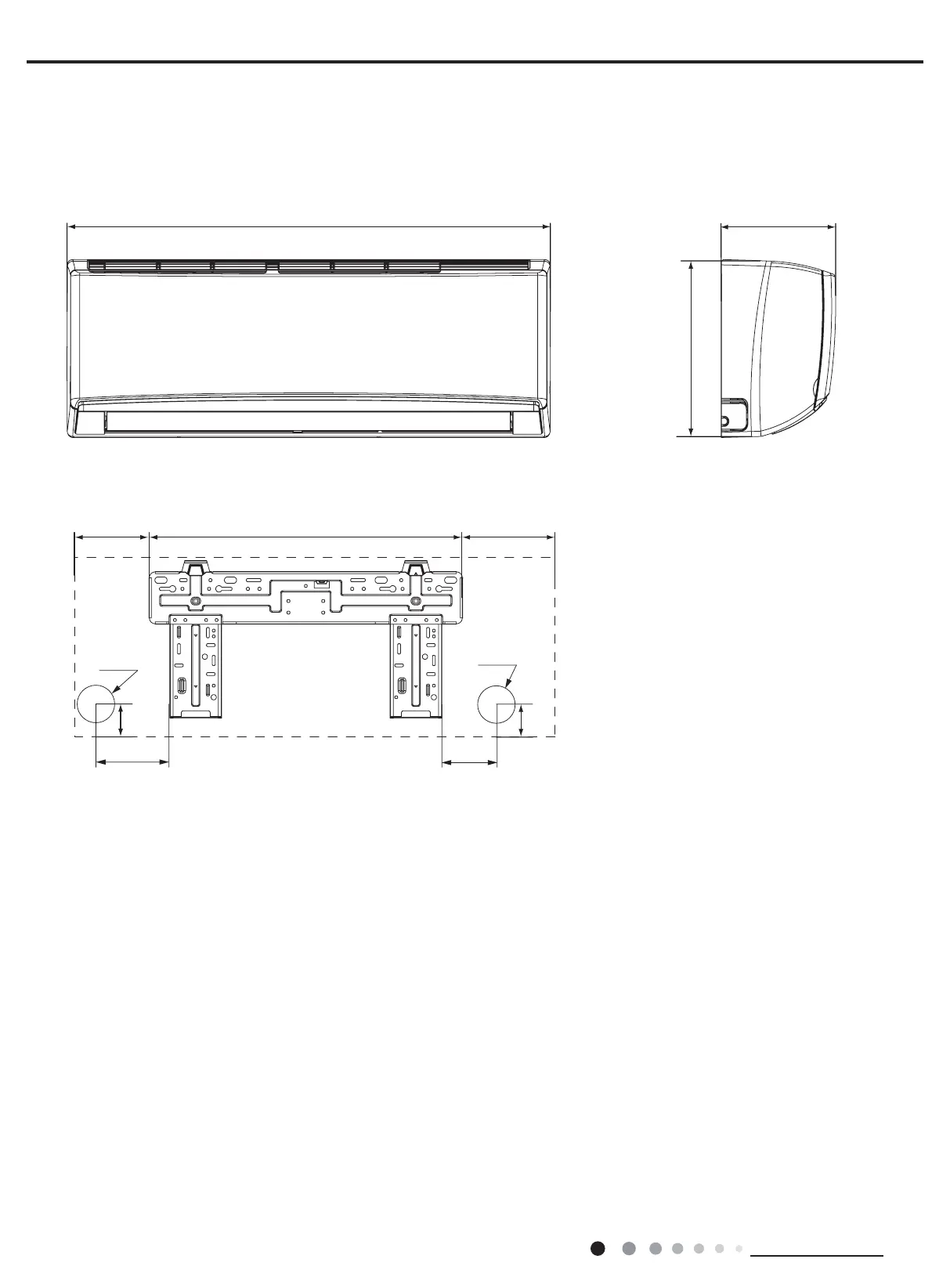

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:inch
33 1/4
8 7/32
11 3/8
4 43/64
7 1/4
21 21/64
Φ2 3/16
Φ2 3/16
1 3/8
1 3/8
5
3 19/64
