19
Technical Information
Service Manual
GWH09QC-D3DNC2D GWH12QC-D3DNC2D

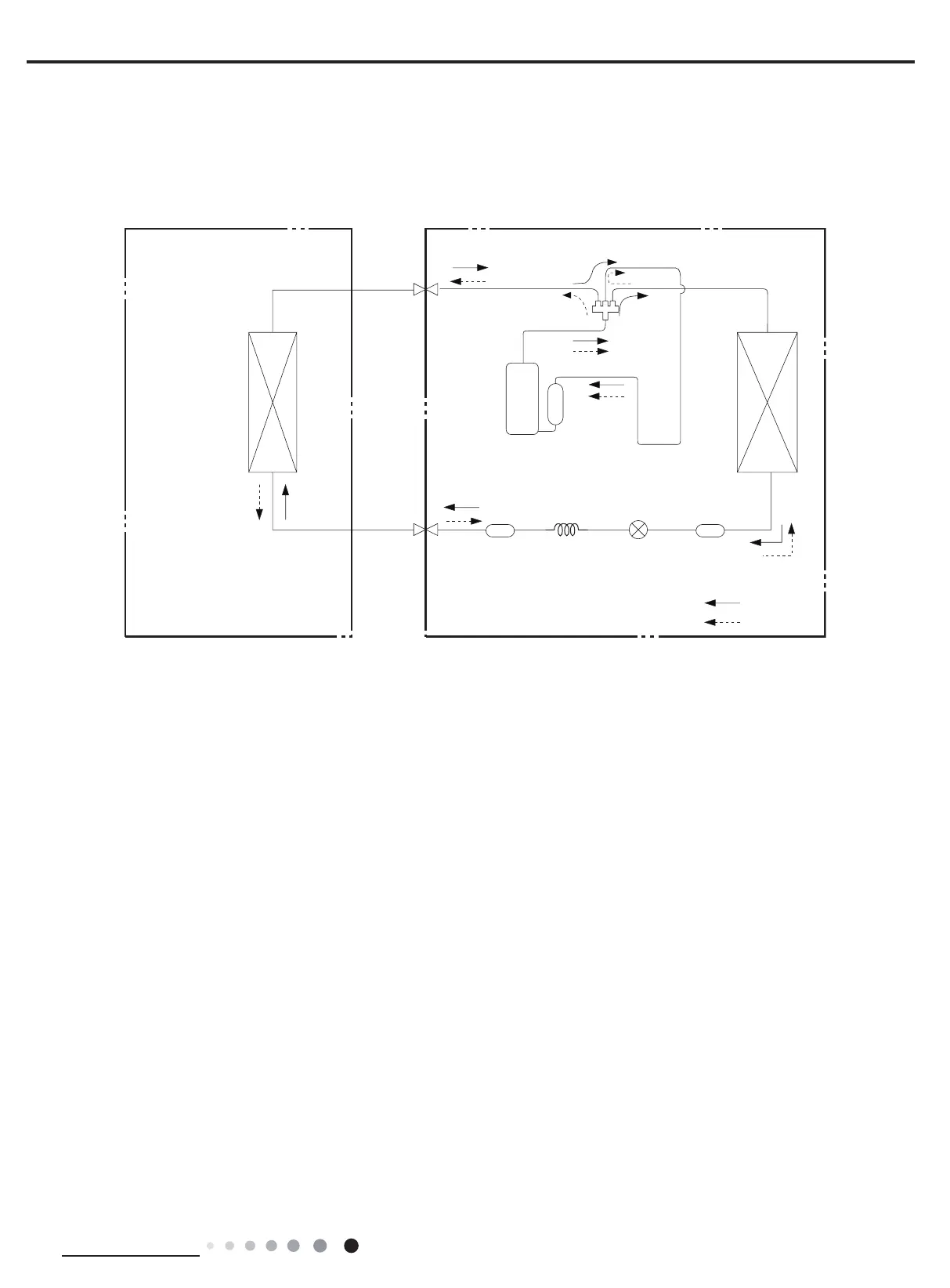

Connection pipe specication:
Liquid pipe:1/4"
Gas pipe:3/8"
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer
Strainer
Capillary Electric Expand
Valve Fitting
Accumlator
Compressor
