Cree GWH09QC-D3DNC2D - Page 28

25
Technical Information
Service Manual

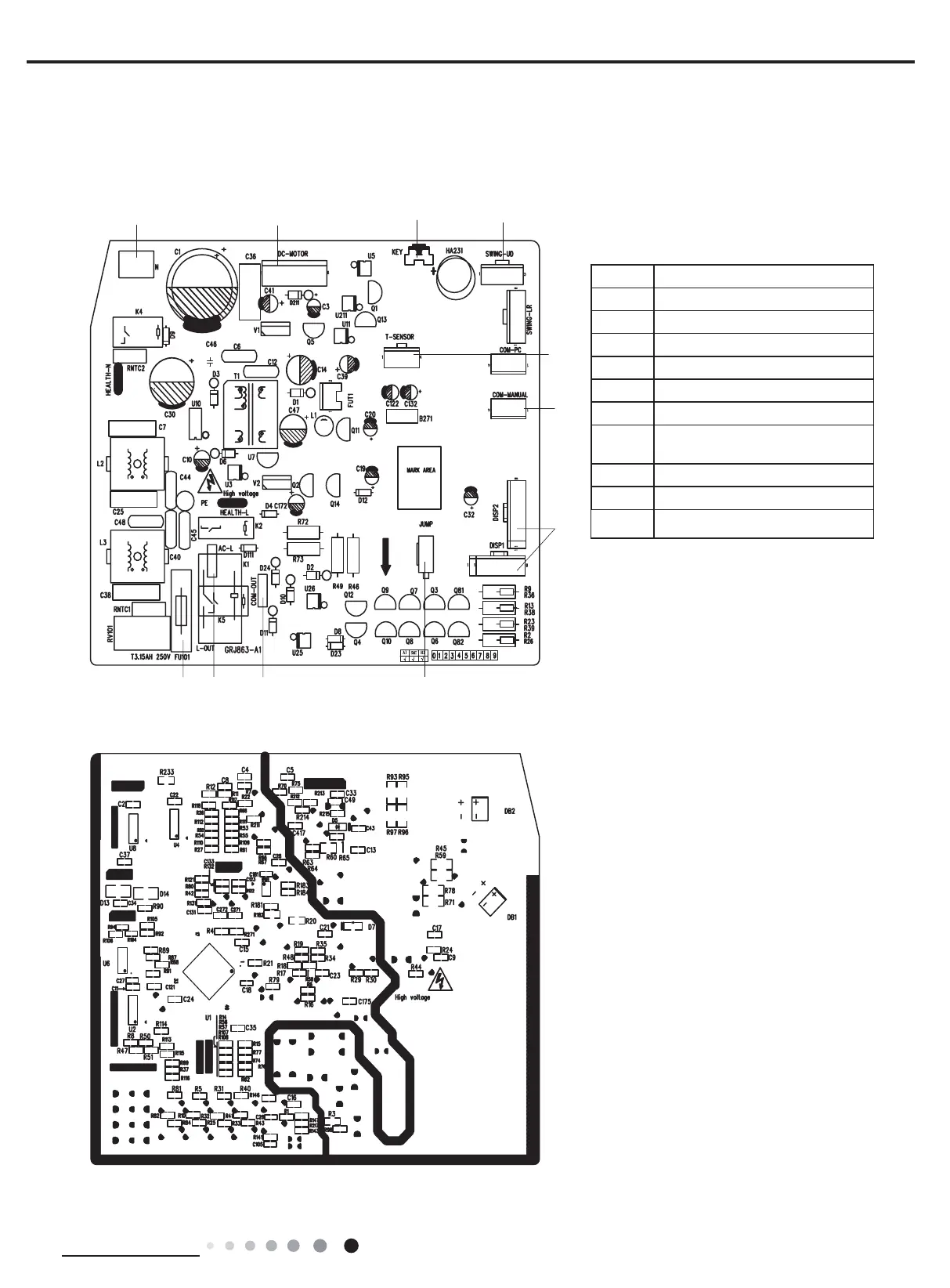

● Top view
● Bottom view
1
2
3
4
5
6
7
8910
11
1 Neutral wire
2 DC fan
3 Auto button
4 Up&down swing
5 Interface of temperature sensor
6 Interface of wired controller
7 Display interface
8
Terminal with outdoor unit
communication wire
9 Interface of live wire
10 Fuse
Jumper
11
GWH09QC-D3DNC2D/I GWH12QC-D3DNC2D/I
