KeyWin6 - KeyBox SC manual Version 1.0.1. All and copyright reserved by Creone AB 15
1. TCP/IP port
2. Battery backup power cable
3. Strip cable – connected to the rst key strip in your sys-
tem (see more information on page 16).
4. Strip cable – connected to the last key strip in your sys-
tem (see more information on page 16).
5. Connection for RFID-reader (see more information on
page 18).
6. Connector for door solenoid
7. Connector for door alarm
8. Connection for external reader (see more information
page 19).
9. Connection for external alarm (see more information
page 20).

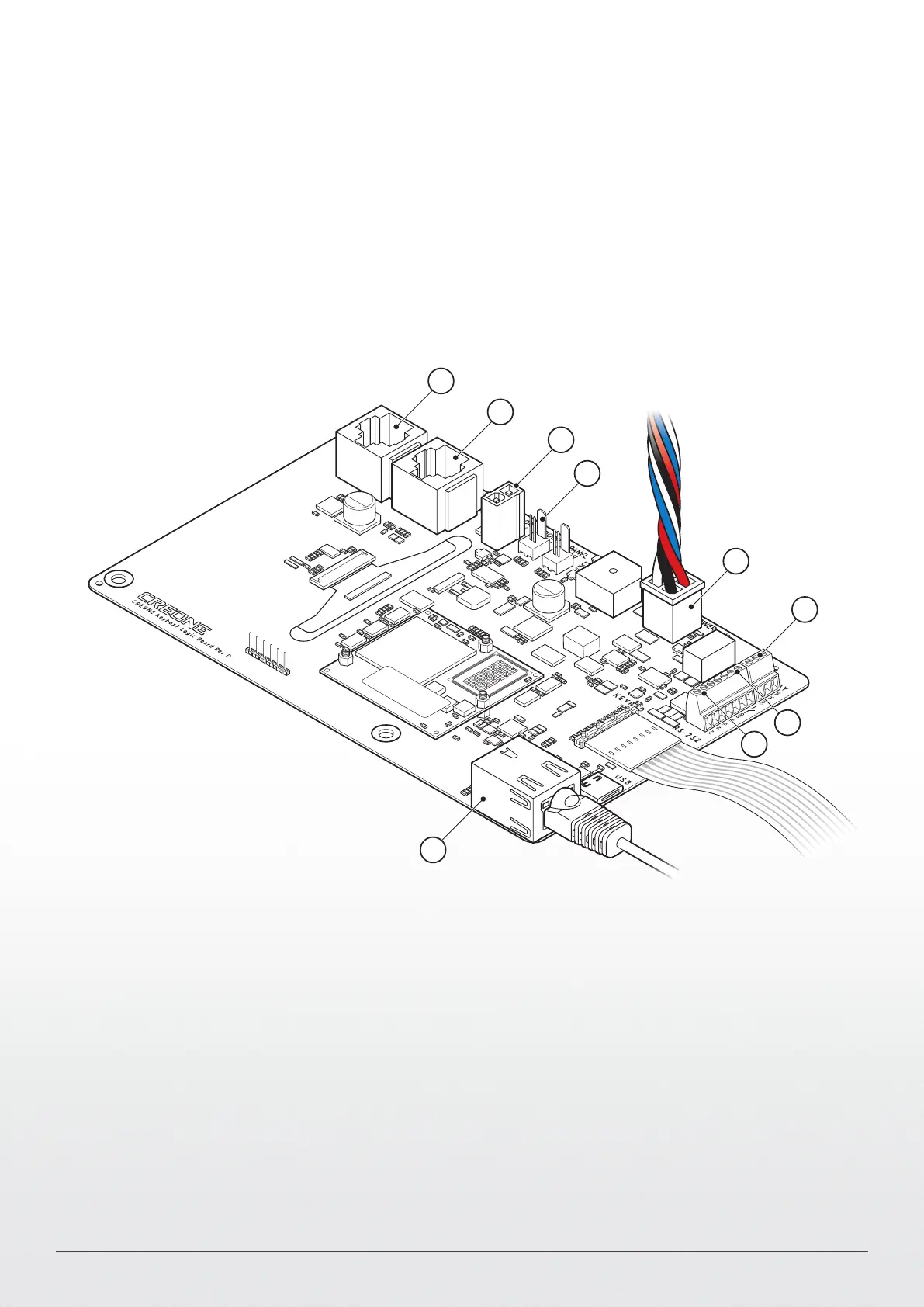

PCB
Explanation of circuit board parts
